chip set

Intel® H110/Q170 chipset

BIOS

64MB SPI FLASH memory with features including diskless boot, network wake-up, power-on boot, and watchdog functionality

internal storage

capacity

It offers 2 x DDR4 memory slots (2133/2400/2666MHz) with a maximum capacity of 64GB.

memory

M-SATA joggle

M.2-KEY

1¡ÁM-SATA

1 x 2.2-inch M-Key 2280 SATA/NVMe SSD (Q170 compatible), featuring dual 2.5-inch hot-swap drives with optional 3.5-inch drive slots

show

output

1 x DVI-D

1 ¡ÁHDMI (Supports up to 3840x2160 at 30Hz)

1 ¡Á VGA (maximum resolution: 2048¡Á1536)

network

slug

RJ45 network port:

1 x Intel® i211 processor, 1 x Intel® i219 processor, 1 x Realtek 8125BG 2.5G network card with M12 aviation connector port:

Supports 2/3/4 M12 aviation connectors, with optional 4-core or 8-core D-code/X-code configurations, and compatible with Intel i210, Intel225V/LM, and Intel226V/LM network card chips.

I/O

DC

HDMI

VGA

USB

RJ45

audio frequency

extension interface

DC110V Rail Transit Dedicated Power Supply

1¡ÁHDMI

1¡ÁVGA

6¡ÁUSB 3.0

3¡ÁRJ45 Gigabit Ethernet ports, 1¡ÁIntel® i211,1¡ÁIntel® i219, and 1¡ÁRealtek 8125BG 2.5G network card

1¡Á audio input, optional Realtek sound card, supports line-out and mic-in

Supports expandable COM, USB, SMBUS, PS/2, LPT, and 16/32-channel GPIO resources, along with multi-network interface cards and M12 aviation connector ports.

board function

COM

USB

GPIO

MSATA

M.2 M-KEY

PCIE 1X

Mini PCIe

expansion slot

fanless design

The 2-port serial port supports adjustable RS232/422/485 communication, high-speed optocoupler isolation, and can be further expanded with additional COM interfaces and M12 aviation COM connectors.

6¡ÁUSB ports with expandable additional USB ports and M12 aviation USB connector

1¡ÁGPIO with 16 or 32 channels (optional)

1¡ÁMSATA

1 x 2.2-inch M-Key 2280 SATA/NVMe SSD (Q170 compatible)

1¡ÁPCIE 1X

1¡ÁMini PCIe 1X

1*Mini PCIe 1X expandable modules (including WiFi, 4G, MVB, and other general/specialized types); 1 x m.2 B-Key 3042/3052 slot for 4G/5G module expansion; flexible combinations of PCIe 16X,4X (Q170),1X, and PCI slots, with dozens of expandable slot options available.

1*PCIE 1X

Closed fanless chassis design eliminates the potential failure risks caused by traditional built-in cooling fans and their dust accumulation.

source

import

DC110V dedicated power supply for rail transit, available in 12V,24V, or 9-36V configurations

watchdog

output

margin

Interrupt, system reboot

Level 255 Fixed Interval

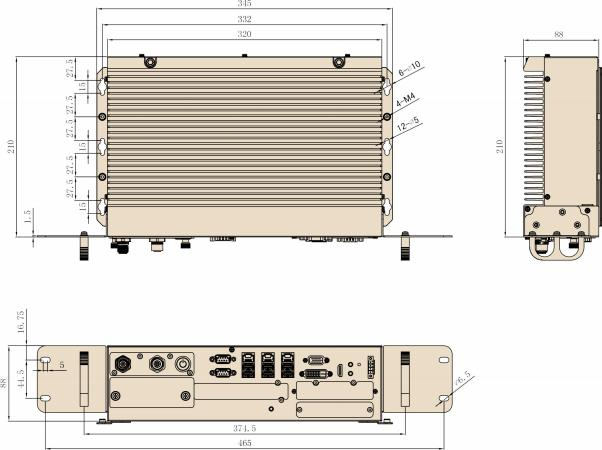

Physical parameters

vibrate

lash

SSD: 5GB/5-500Hz/Random

HDD: 1GB/5-500Hz/Random

SSD: 50G/semi-sinusoidal/11ms duration

HDD: 20G/semi-sine/11ms

environment

temperature

humidity

Operating temperature: -15 to 60¡ãC Storage temperature: -20 to 70¡ãC

5%~90% No condensation

operating system

edition

Supports Windows 7, 8, 10, Linux, Kylin, and UnionTech

AOS-SEH11F81S2UJ

Intel Core processors: i9-9900, i9-9900T, i7-9700T, i7-8700, i7-7700, i7-7700T, i7-6700, i7-6700TE, i5-9600, i5-8600, i5-8600T, i5-8400, i5-8400T, i5-7500, i5-7500T, i5-7400, i5-7400T, i5-6600, i5-6600T, i5-6500, i5-6500T, i5-6500TE, i5-6400, i5-6400T, i3-9100, i3-9100T, i3-8100, i3-7100, i3-7100T, i3-6100, i3-6100T, G5420 (9th Gen), G5400 (8th Gen), G4930 (8th Gen), G4900 (8th Gen), G4600 (7th Gen), G4560 (6th Gen), G4400 (6th Gen), G4400T (6th Gen), G3930 (7th Gen), G3900T (6th Gen) CPU options
