Chipset

SOC

Memory

Capacity

2GB SO-DIMM LPDDR4 2300 MHz memory ,  Max.4GB

Storage

EMMC

TF Card

16G,  Max.64GB

Support 64G

Display

Graphics chip

Output

RK integrated graphics

HDMI+HDMI single display, dual display (synchronous/asynchronous display)

1 ¡ÁHDMI (maximum supported resolution: 3840x2160)

1 ¡ÁHDMI (maximum supported resolution: 1920x1080)

Function

MINI PCIE

COM port

Amplifier

1X MINI PCIE(3G/4G)

1X RS232+1X RS485

5W

Ethernet

Chip

WIFI

1 ¡Á RTL8211F 10/100/1000M (RJ45 LAN) optional dual network port

1 x AP6275S WIFI2.4G/5G dual mode + BT (baseboard RTL8188 2.4G)

COM-E core board I/O

COM-core base board I/O

USB 2.0

USB 3.0

TF card

HDMI

TYPE-C

RJ45

LVDS

EDP

USB2.0

USB3.0

TYPE-C

IR

HDMI IN

HDMI OUT

7-button pin

Power button

Reset

OPS interface

LED light

DC JACK

Audio

4¡Á USB2.0£¨pin£©

1x  USB3.0

1 x  TF card

1x  HDMI OUT

1 x  TYPE-C

1 x  RJ45

1 x  LVDS

1 x  EDP

2 x USB2.0 (2 to 1)

1 x USB3.0 (2 to 1 with core board)

2 x TYPE-C (2 to 1)

1X IR

2x HDMI IN 2.0 (signal source switching)

1 x HDMI OUT (1080P)

1 x HDMI OUT (4K)

1 x 7-button pin (IR/volume, etc.)

1 ¡Á power button

1 ¡Á upgrade

1 ¡Á OPS interface (80pin)

1 x LED indicator light

1 ¡Á DC JACK

1 ¡Á LINE-OUT & MIC-IN

Power

Input

Rated power

DC  12~19V

30W

Physical parameters

Dimensions

220mm (L) x 73mm (W)x18mm(H)

Environment

Temperature

Humidity

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20~70¡ãC

5%~90% non-condensing

Operating system

Vision

Android7.0/ 10.0/  Linux

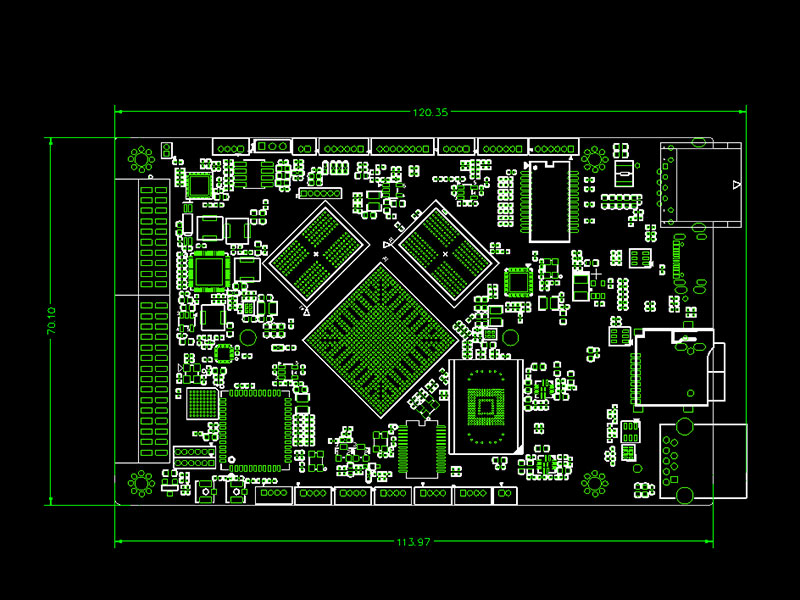

COM-E core board

ATU-3399M

AOS-3399MCD

RK3399   2.0GHz   2G RAM    16G EMMC

RK3399   2.0GHz   4G RAM    32G EMMC

 (With or without OPS connector available)

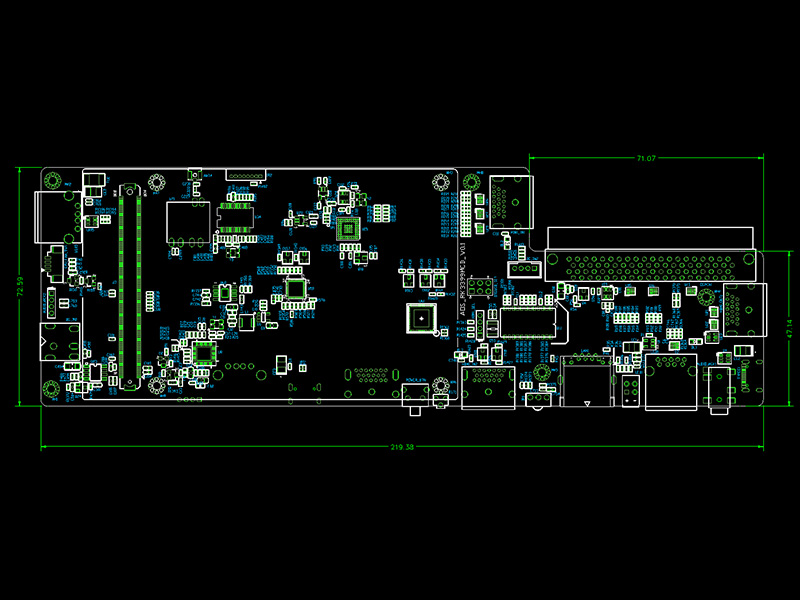

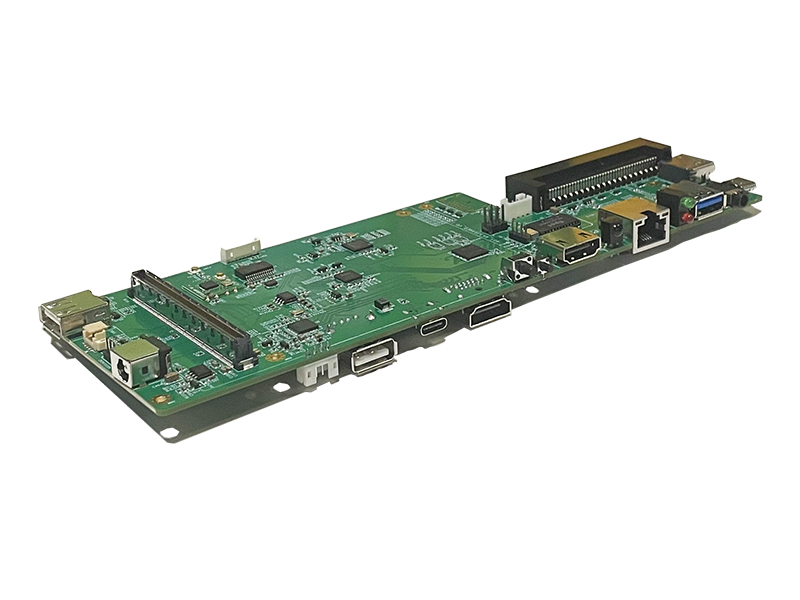

COM-E core baseboard

AOS-MOR39216CLED

AOS-MOR39432CLED

RK3399   2.0GHz   2G RAM    16G EMMC

RK3399   2.0GHz   4G RAM    32G EMMC
