Chip

SOC

BIOS

15 inch

touch

Byosoft, support diskless boot, network wake-up, power-on, watchdog and other functions

10.1/13.3/15 (1024*768 resolution)/17/21.5/23 inch optional

Capacitive (capacitive G + G touch program / 10-point touch), resistance optional

Memory

Capacity

8GB SO-DIMM DDR4 2666MHz memory ,  Max.32GB

Storage

SATA interface

MINI PCIE

M.2

2x SATA3.0

1X m.2 PCIE

256G M.2 SSD

Display

graphics card

outputs

JM 7201 2G

VGA+HDMI single display , dual display (same/asynchronous display)

1 ¡Á VGA (maximum supported resolution: 1920 x 1080)

1 ¡Á HDMI (maximum supported resolution: 1920x1080)

Networking

Chip

1-2 ¡Á 10/100/1000M£¨RJ45 LAN£©

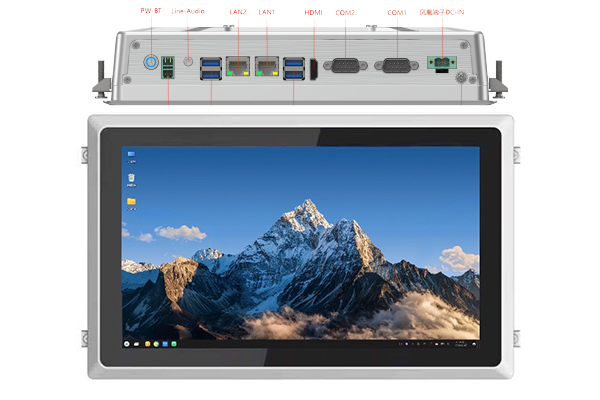

I/O

USB 3.0

USB 2.0

COM

Power button

GPIO

LED light

Audio

4x  USB3.0

6¡Á USB2.0(optional)

2-6x  COM(optional)

1 ¡Á power button

1 X 4 in 4 out GPIO(optional)

1 x Power indicator light & 1 x Hard disk indicator light1 ¡Á LINE-OUT &  MIC-IN

Power supply

Rated Power Consumption

DC 12V-19V

90W

Watchdog

Output

Interval

Interrupt, system restart

255-level timer interval

Physical Parameters

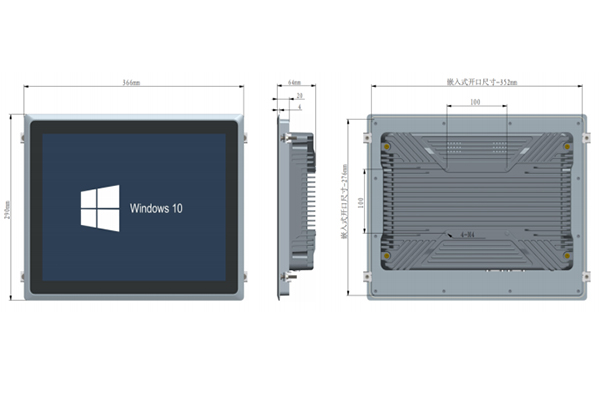

Dimension

352mm (L) x 276mm (W)  x 64mm (H)

Environment

Temperature

Humidity

Operating temperature: -10¡ãC ~70¡ãC Storage temperature: -20~75¡ãC

5%~90% Non-condensing

Operating System

Chassis parameters

Versions

Kylin/UOS/NFS-China / Linux

aluminium alloy

AOS-SPZX6582S15Z

ZX-6580 2.5GHz(8-core)  8G RAM  256G SSD    15-inch
