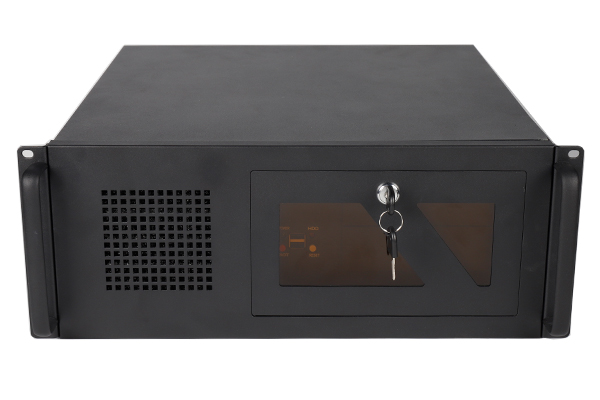

AOS-SSZK6A341SU
Product introduction：
Specifications
processor | CPU | Megacore KX-6640A (quad-core quad-thread /2.6GHz/4MB secondary cache /16nm/35W). Megacore KX-6640MA (quad-core four-thread /2.2GHz/4MB secondary cache /16nm/25W). Megacore KX-6740A (quad-core four-thread /2.7GHz/4MB secondary cache /16nm/55W). Megacore KX-U6780A (octa-core eight-thread /2.7GHz/8MB secondary cache /16nm/70W). |
Chipset | SOC | |
BIOS | Baiyi, support diskless start-up, network wake-up, power-on, watchdog and other functions | |
memory | capacity | 4GB SO-DIMM DDR4 2400 MHz memory , Max.32GB |
storage | SATA interface MINI PCIE | 128G SSD 1X Mini PCIE |
display | Integrated graphics card output
| VGA-HDMI-DP single- , dual-display, three-screen (same/asynchronous display). , / 1 × VGA (maximum support resolution:1920x1080). 1 ×HDMI (maximum support resolution:3840x2160 60HZ). 1 × DP (maximum support resolution:3840x2160 60HZ). |
Support for stand-alone graphics cards(GT730/GT1030/GT1050/1050TI/1650 2-4G) | ||
Internet | chip WIFI | 1 × RTL8111F 10/100/1000M(RJ45 LAN optional 2). 1 x WIFI Module support 802.11b/g/n （M.2 half card） |
I/O | USB 2.0 USB 3.0 Power button Reset COM LED light DC JACK audio | 7x USB2.0 3× USB3.0 1 × power button 1 × Reset 6 × COM (optional). ) 1 x Power indicator light . . . 1x hard drive indicator light 1 × DC JACK 1 × LINE-OUT and MIC-IN with integrated 6-channel sound ALC662 sound card chip |
power supply | input Rated power consumption | DC 12~19V 60-90W |
Watchdog | output interval | Interruption, system restart 255-level timing interval |
The physical parameters | size | 482.53mm (L) x 176.5mm (W) x 504mm (H) |
environment | temperature humidity | Operating temperature:0to50degreesC Storage temperature:-20 to 70degreesC 5% to 90% no condensation |
operating system | version | Windows 10/Windows 7 / Ubuntu / Linux / Winning Kirin / Nakako Fonde / CentOS |
Order information
Sales model | illustrate |
AOS-SSZK6A341SU | KX-6640A 2.6GHz 4G memory 128G SSD |
AOS-SSZK6A341SU | KX-6640A 2.6GHz 4G memory 128G SSD |
AOS-SSZK6A341SU | KX-6640A 2.6GHz 4G memory 128G SSD |
AOS-SSZK6A341SU | KX-6640A 2.6GHz 4G memory 128G SSD |
Applications
Suitable for education, restaurants, hotels, shopping malls, corporate meetings, government affairs and other fields.
