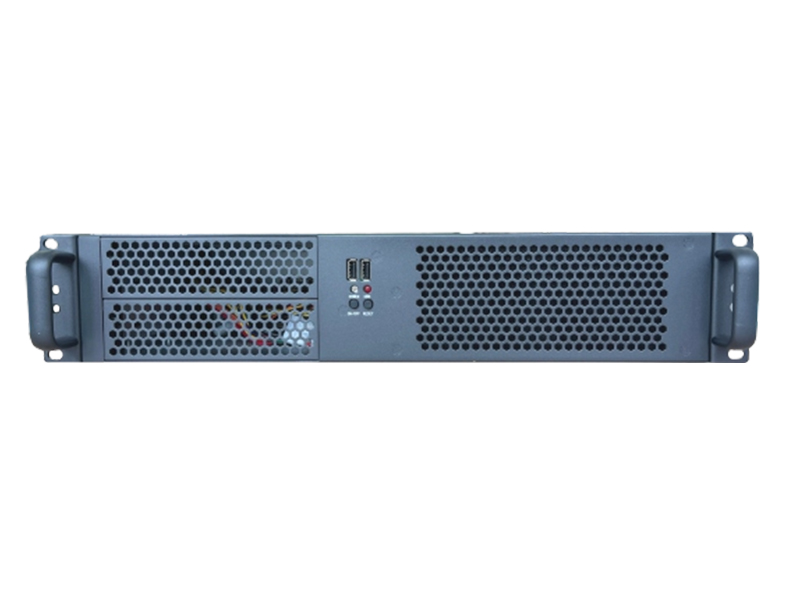

AOS-SSFT282S20Y
Product introduction£º
Product introduction
Domestic Feiteng FT2000/4 (D2000) + X100
Support 2xDDR4 SODIMM, maximum support 32GB memory
Support 2xRS232
Support 4xUSB3.0
Support 2xUSB2.0
2xLAN Gigabit network card
1x national security module (optional)
Support network wake-up, power-on, watchdog, etc.
The product complies with CE FCC ROHS specifications/optional 100% domestic production
Specification
Processor | CPU | FT2000/4(D2000)2.6GHz(2.3GHz) |
Chipset | Intel® SOC | |
Memory | Capacity | 2xSODIMM/DDR4/2666MHz,The voltage is 1.2V, and the maximum support is 32GB. |
Storage | M.2 | 1xSATA3.0,1xM.2-2242/2280SATA(optional NVMe) |
Display | Output | HDMI 0+HDMI 0 |
cache | L2 cache | 4M(8M) |
IO | Ethernet USB Audio serial port encrypt electromagnetic compatibility | 1x10/100/1000M adaptive (2 optional) 4xUSB3.0,2xUSB2.0 1xLine out,1xMIC-in 2xRS232 (optional) 2x13 needle arrangement Classs B complete machine |
Power supply | Input | AC220 (standard ATX power supply) |
Environment | Working temperature Industrial humidity | 0-50 C (optional-40-85 C) 0-95%RH, noncondensable |
Physical parameters | Dimensions | 430mmx300mm¡Á89mm£¬430mmx390mm¡Á89mm optional |
Operating system | Version | With Kylin, yihui Freeos and other domestic operating systems, you can choose 100% localization, |
Areas of application
Industrial computer, industrial tablet computer, self-service terminal, all-in-one machine, medical treatment, digital sign, POS cash register, etc.
