AOS-SSFD2162S4UY
Product introduction£º
Product introduction

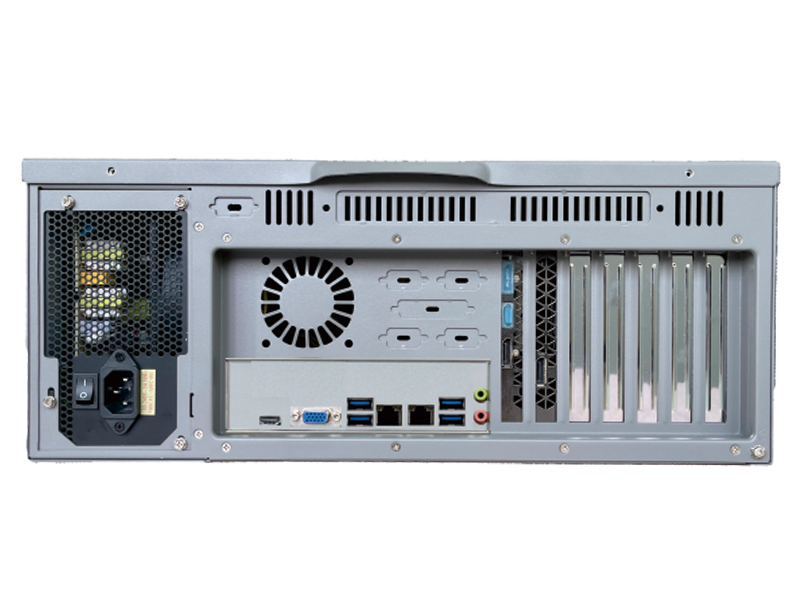

Domestic industrial 4U industrial computer
Domestic Feiteng FT2000/4 (D2000) + X100
Support 2xDDR4 SODIMM, maximum support 32GB memory
Support 2-6xRS232 (optional)
Support 4xUSB3.0, 2xUSB2.0 (optional)
Support 1xLAN Gigabit network card (optional 2)
Support 1x national secret security module (optional)
Support network wake-up, power-on, watchdog, etc.
The product complies with CE FCC ROHS specifications
Specification
Processor | CPU | FT2000/4(D2000)2.6GHz(2.3GHz) |
Chipset | Intel® SOC | |
Memory | Capacity | 8G 2xSODIMM/DDR4/2666MHz,The voltage is 1.2V, and the maximum support is 32GB. |
Storage | M.2 | 1xSATA3.0,1xM.2-2242/2280SATA(optional NVMe) 256G |
Display | Output | HDMI 0+HDMI 0 |
cache | L2 cache | 4M(8M) |
IO | expansion slot Ethernet USB Audio serial port encrypt electromagnetic compatibility | 1xPCIe3.0x16 slot [x16 signal] 1x10/100/1000M adaptive (2 optional) 4xUSB3.0,2xUSB2.0 1xLine out,1xMIC-in 2-6xRS232 (optional) 2x13 needle arrangement Classs B complete machine |
Power supply | Input
| AC220 (standard ATX power supply) |
Environment | Working temperature Industrial humidity | 0-50 C (optional-40-85 C) 0-95%RH, noncondensable |
Physical parameters | Dimensions | 430x450x178(mm) |
Operating system | Version | With domestic operating systems such as Kylin, UOS, Yihui, Freeos and open source OS, you can choose 100% localization. |
Areas of application
Industrial computer, industrial tablet computer, self-service terminal, all-in-one machine, medical treatment, digital sign, POS cash register, etc.
