chipset

SOC

BIOS

Baiao, support diskless startup, network wake up, power-on, watchdog and other functions

Internal memory

capacity

4GB SO-DIMM DDR4 2400 MHz memory ,  Max.32GB

store

M.2 Ports

MINI PCIE

128G SSD  1X M.2 2280 NVME/NGFF

1X Mini PCIE (WIFI/3G/4G)

reveal

Integratedgraphics card

exportation

VGA+HDMISingle display, dual display (same/asynchronous display)

1 ¡Á VGA   £¨Maximum support resolution£º1920x1080£©

1 ¡ÁHDMI   £¨Maximum support resolution£º3840x2160 60HZ£©

network

Chip

WIFI

1 ¡Á RTL8111H  10/100/1000M£¨RJ45 LAN Two are optional£©

1 x WIFI Module support 802.11b/g/n £¨M.2 half card£©

I/O

USB 2.0

USB 3.0

Power button

LPT

PS/2

COM

LEDµÆ

DC JACK

Audio frequency

6x USB2.0

4¡Á USB3.0

1 ¡Á power button

1 ¡Á LPT

1 ¡Á PS/2

6 ¡Á COM(RS232)

            1 x Power indicator &1x hard disk indicator

1 ¡Á DC JACK

1 ¡Á LINE-OUT &  MIC-IN £¬Integrated 6-channel sound ALC662 sound card chip

Power source

input

Rated power consumption

DC  12~19V

60-90W

Guard dog

exportation

interval

The system restarts. Procedure

255 level timing interval

Physical parameter

dimension

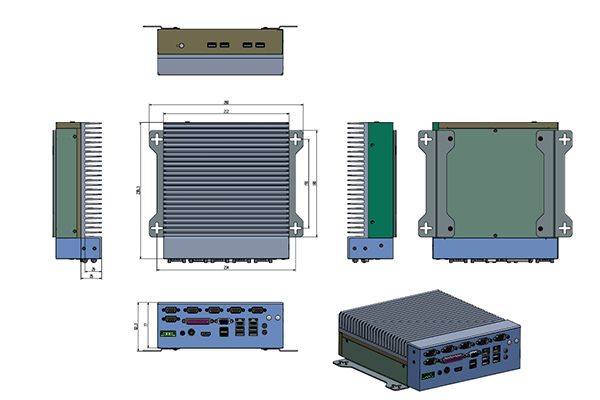

234mm (L) x 230mm (W) x 82mm (H)

environment

temperature

humidness

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC

5% to 90% no condensation

Operating system

edition

Windows 10/Windows 7 / Ubuntu/ Linux/Won the bid Kirin/CKE Fang De /CentOS

AOS-SEZKU6541S106C

KX-U6580  2.5GHz  4Gmemory     128G SSD

AOS-SEZK67A41S106C

KX-6780A  2.7GHz  4Gmemory     128G SSD

AOS-SEZK6A341S106C

KX-6640MA  2.2GHz  4Gmemory     128G SSD
