AOS-SXHG3341SJ7T4
Product introduction£º
Specifications:
processor | CPU | Haiguang HG-3230 (quad-core, 8 threads, 3.0GHz, 4MB L2 cache, 16nm process, 55W power consumption) Haiguang HG-3350 (8-core, 16-thread, 3.0GHz, 4MB L2 cache, 16nm architecture, 55W power consumption) |
chip set | SOC | |
BIOS | Bai Ao supports features such as diskless boot, network wake-up, power-on boot, and watchdog. | |
internal storage | capacity | 4GB SO-DIMM DDR4 2666MHz memory , Max.32GB |
memory | SATA joggle MINI PCIE M.2 | 2x SATA3.0 1X m.2 PCIE 128G M.2 SSD |
show | video card output
| Jingjia Micro 7201/AMD RX520 2G optional VGA+HDMI single display, dual display (synchronous/asynchronous) 1 ¡Á VGA (maximum resolution: 1920¡Á1080) 1 ¡ÁHDMI (Supports up to 4096x2304 resolution)
|
network | slug WIFI | 1 ¡Á 10/100/1000M£¨RJ45 LAN£© 1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£© |

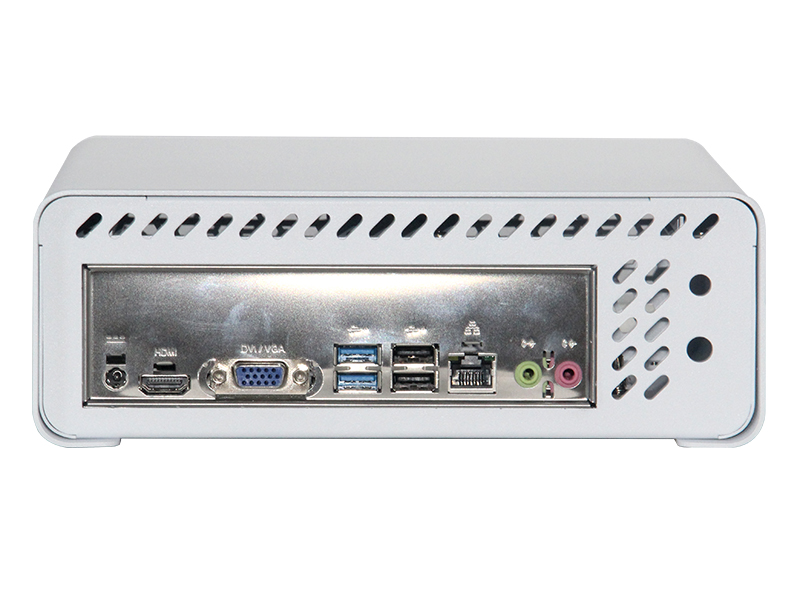

I/O | USB 3.0 USB 2.0 COM Power button LED lamp DC JACK audio frequency | 2x USB3.0 2¡Á USB2.0 1x COM (Optional) 1 ¡Á power button 1 x power indicator light & 1x hard drive indicator light 1 ¡Á 12-19V DC JACK 1 ¡Á LINE-OUT & MIC-IN |
source | import rated dissipation | DC 12-19V 90W |
watchdog | output margin | Interrupt, system reboot Level 255 Fixed Interval |
Physical parameters | size | 225mm (L) x 212mm (W) x 79.2mm (H) |
environment | temperature humidity | Operating temperature: 0¡ãC to 50¡ãC Storage temperature: -20¡ãC to 70¡ãC 5%~90% No condensation |
operating system | edition | Kirin/UOS/China Fangde/Linux |
Order details:
Sales model | explain |
AOS-SXHG3341SJ7T4 AOS-SXHG3541SR5T4 | HG-3230 2.3GHz (8-core) processor, 4GB RAM, 128GB SSD, 7201 2GB graphics card HG-3350 2.3GHz (8-core) processor, 4GB RAM, 128GB SSD, RX520 2GB graphics card |
application area £º
Ideal for education, restaurants, hotels, shopping malls, corporate meetings, and government transparency initiatives.
