chip set

SOC

BIOS

Bai Ao supports features such as diskless boot, network wake-up, power-on boot, and watchdog.

internal storage

capacity

4GB SO-DIMM DDR4 2666MHz memory ,  Max.32GB

memory

SATA joggle

MINI PCIE

M.2

2x SATA3.0

1X m.2 PCIE

128G M.2 SSD

show

video card

output

Jingjia Micro 7201/AMD RX520 2G optional

VGA+HDMI single display, dual display (synchronous/asynchronous)

1 ¡Á VGA (maximum resolution: 1920¡Á1080)

1 ¡ÁHDMI (Supports up to 4096x2304 resolution)

network

slug

WIFI

1 ¡Á 10/100/1000M£¨RJ45 LAN£©

1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£©

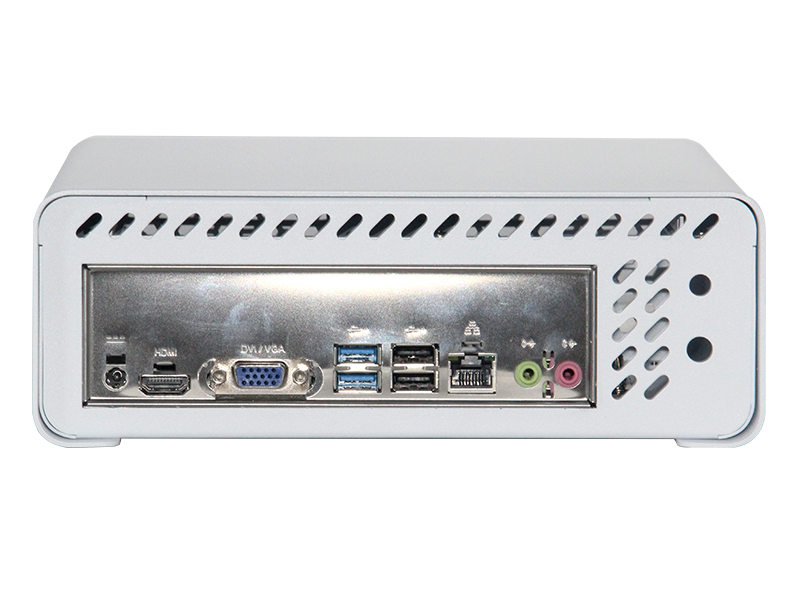

I/O

USB 3.0

USB 2.0

COM

Power button

LED lamp

DC JACK

audio frequency

2x  USB3.0

2¡Á USB2.0

1x COM (Optional)

1 ¡Á power button

            1 x power indicator light & 1x hard drive indicator light

1 ¡Á 12-19V DC JACK

1 ¡Á LINE-OUT &  MIC-IN

source

import

rated dissipation

DC  12-19V

90W

watchdog

output

margin

Interrupt, system reboot

Level 255 Fixed Interval

Physical parameters

size

225mm (L) x 212mm (W) x 79.2mm (H)

environment

temperature

humidity

Operating temperature: 0¡ãC to 50¡ãC Storage temperature: -20¡ãC to 70¡ãC

5%~90% No condensation

operating system

edition

Kirin/UOS/China Fangde/Linux

AOS-SXD241SJ7T4

FT-D2000 2.3GHz (8-core processor), 4GB RAM, 128GB SSD, 7201 2GB graphics card

AOS-SXD241SR5T4

FT-D2000 2.3GHz (8-core) processor, 4GB RAM, 128GB SSD, RX520 2GB graphics card
