Chipset

SOC

BIOS

128Mb Flash ROM

Memory

Capacity

2*SODIMM memory slots, supports dual-channel DDR4 memory up to 3200MHz, maximum 64GB

Display

N/A

Network

6*Gigabit Ethernet ports, 2*Gigabit optical ports/2*electrical ports (electrical ports optionally support 2 groups of BYPASS), supports Wake-on-LAN and PXE; NIC chip: WX1860A4

Storage

2*SATA3.0 drive interfaces, transmission speed up to 6Gbps

1*M.2 2242/2280 SSD, supports SATA protocol, transmission speed up to 6Gbps

Audio

N/A

Expansion Slots

1*M.2 slot, supports 4G/5G modules

1*MiniPCIE slot, supports WiFi and Bluetooth

1*PCIEX8 slot (X8 signal)

1*PCIEX8 (side-entry board-to-board X8 signal slot)

I/O Interfaces

Rear I/O Interfaces

1*RJ45 console interface

2*USB3.0 interfaces

1*4 RJ45 Gigabit network interfaces

Rear I/O Interfaces

1*2 RJ45 Gigabit network interfaces

2*SFP Gigabit optical network ports (optional 2*2 RJ45 Gigabit network interfaces)

1*Power switch

1*Dual-layer LED (upper red, lower green; upper HDD LED, lower power LED)

Internal I/O Interfaces

2*USB2.0 interfaces, 2*5pin

1*Vertical USB2.0 interface

1*RS232 serial interface, 2*5pin, supports RS485

Internal I/O Interfaces

1*GPIO pin header, 2*5pin

1*TPM pin header, 2*6pin

1*Front-panel function button and indicator interface, 2*5pin

1*24pin ATX power interface

1*2*4pin ATX power interface

1*SIM card slot

1*Network LED pin header, 2*17pin

1*80pin high-speed connector, including signals: 2*PCIEx1 signals, 6*TTL signals

Fan Interfaces

1*4pin CPU smart fan interface, 2*4pin system smart fan interfaces

Environment

Operating Environment

Operating Temperature: 0¡ãC~60¡ãC

Storage Temperature: -20¡ãC~70¡ãC

Operating Humidity: 5%-95% relative humidity, non-condensing

Physical Parameters

Dimensions

245mm x 215mm

Watchdog

Supports hardware reset function (256 levels, 0~255 seconds)

Power Type

ATX power input

Operating System

Version

Windows 10/Kylin/UOS/Linux

AOS-MNHG335082LYY

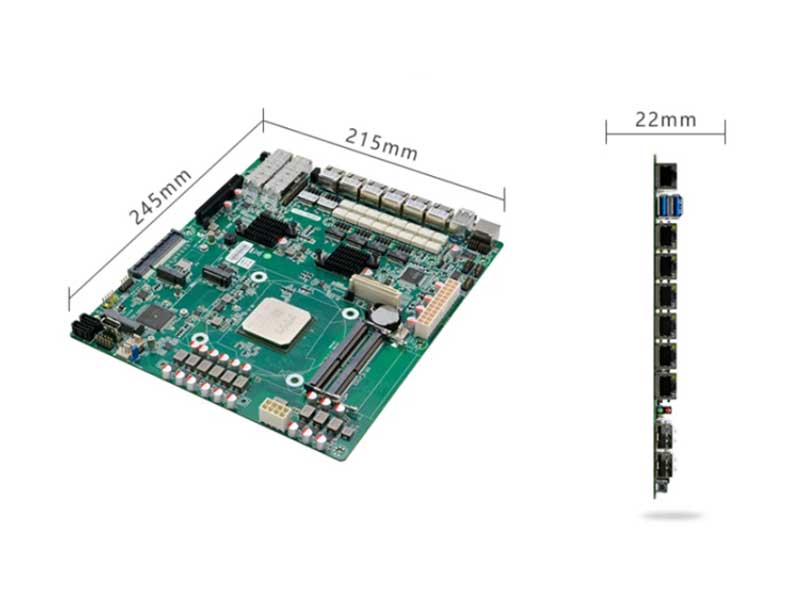

HG335   6*Gigabit Ethernet ports, 2*Gigabit optical ports

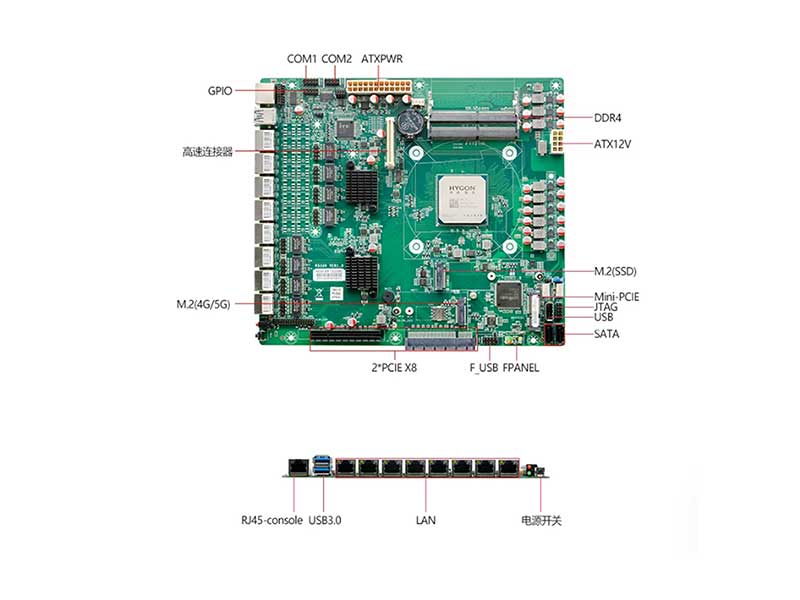

HG335   8 electrical ports
