AOS-MSFT313Y
Product introduction£º
Specifications
Processor | CPU | Domestic Phytium TengRui D3000/8 cores 2.5GHz4M cache |
Chipset | Phytium X100, GPU frequency 600MHz, onboard 4G VRAM | |
BIOS | Uses domestic proprietary BIOS, | |
Memory | Capacity | 2xDIMM/DDR4/2666MHz, voltage 1.2V, up to 64GB |
Storage | SATA Interface M.2 Interface mSATA Interface | 5xSATA3. 0, 1xM. 2-2280, 1xmSATA |
Display | Display | HDMI+VGA+DP |
Network | Chip | 2x10/100/1000M auto-negotiation |

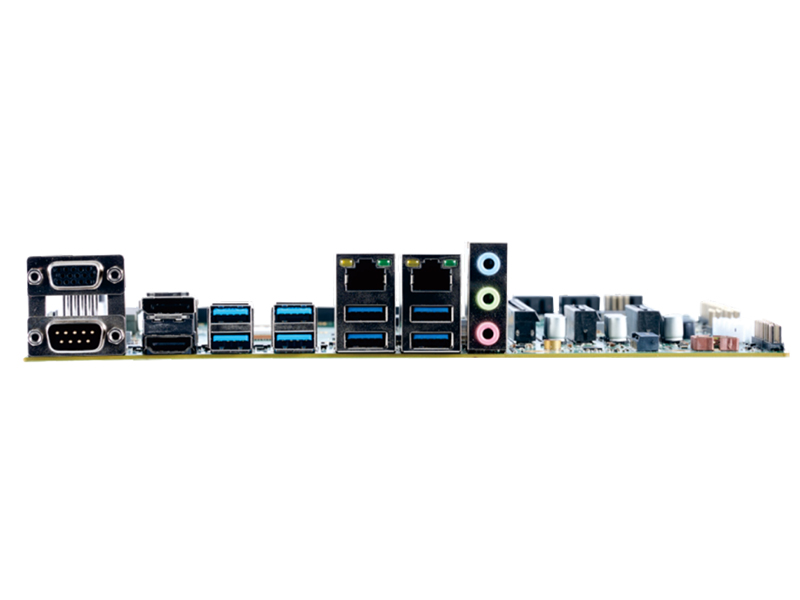

I/O | USB Interface Serial Port SIM Card Audio | 8xUSB3. 0, 6xUSB2. 0 9xRS232+2xRS485 4G/5G(Nano-SIM card slot) 1xLine out, 1xMIC in, 1xLine in |
Expansion Slot | Expansion Slot Other Interfaces/Function | 1xM. 2KeyE, 1xMini-PCle, 1xPCIex16(x16 signal),2xPClex4(x2, x1 signal) 1xGPI0 (4140),1xLPC, 1xSP1,2xCAN |
Power | Power Supply | Standard ATX Interface |
Watchdog | Output Interval | Interrupt, system restart 255-level timing interval |
Physical Parameters | Dimensions | 244mm (L) x 244mm (W) |
Environment | Temperature Humidity | Operating Temp.: 0-50¡ãC Storage Temp.: -40~85¡ãC 0%~95% Non-condensing |
Operating System | Version | Supports domestic desktop OS (UnionTech UOS and Kylin) |
Sales Model | Description |
AOS-MSFT313Y | Domestic Phytium TengRui D3000/8 cores 2.5GHz4M cache+X100 onboard 4G VRAM |
Applications
Domestic: Gov./enterprise, smart interaction, digital signage, cloud and retail terminals.
