chip set

HaiGuang C86-4G Platform Chipset (SOC Integrated)

BIOS

The system utilizes domestically developed BIOS, primarily Kunlun BIOS and ByoSoft BIOS, both compliant with UEFI standards and compatible with the domestic IT innovation ecosystem. These BIOS support diskless boot, network wake-up, power-on boot, watchdog functionality, and other essential features.

internal storage

capacity

4 ¡Á U-DI MM 5200Mbps DDR5 memory slots, supporting up to 128GB of memory

memory

M.2 interface

SATA joggle

1 ¡Á M.2 2280 SSD slot with PCIE4.0 ¡Á 4 support, available in 256G/512G/1TB/2TB NVME SSD options

1 ¡Á M.2 2280 SSD slot with SATA3.0 support, available in 256G/512G/1TB/2TB NVMe/SATA SSD options

3 ¡Á 2.5/3.5-inch HDDs, supporting up to 4TB capacity

show

Display slot

Supports PCIe Gen4 X16 and supports expandable dedicated graphics cards

network

slug

1 ¡Á 10/100/1000M Ethernet interface with network wake-up capability

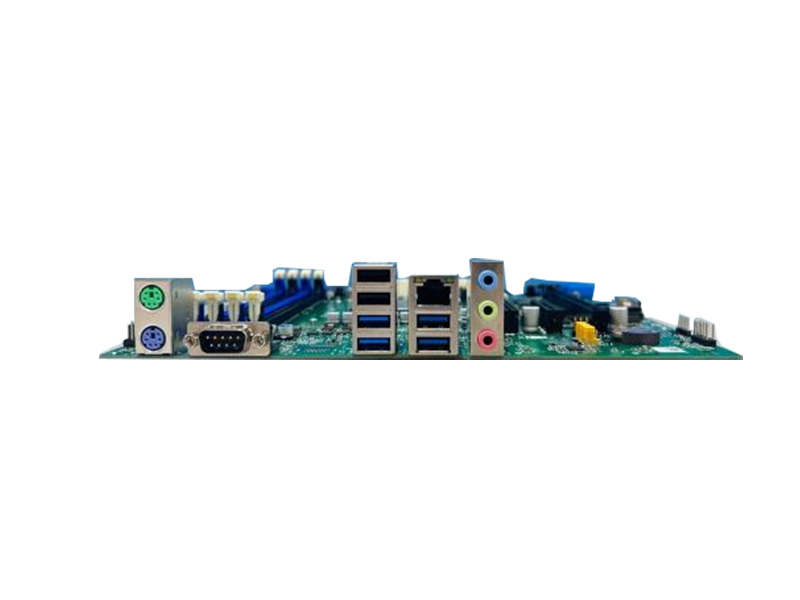

I/O

USB joggle

Built-in pin

gorge line

PS/2 pin

PCIe expansion interface

HDD interface/Optical drive ODD

Encryption module

Audio interface

4 ¡Á USB 3.0 Type-A ports (5Gbps)

2 ¡Á USB2.0 Type-A

2 ¡Á 2¡Á5N 9-pin connectors, supporting 3 ¡Á USB 2.0 ports (with one header supporting only 1 ¡Á USB 2.0)

2 ¡Á 2¡Á10N 19-pin connectors, supporting 4 ¡Á USB 3.2 Gen1 (5Gbps)

IO ports: 1 ¡Á COM (supports RS232)

2 ¡Á PS/2 interface (lower purple + upper green), 2-in-1

1 ¡Á PCIe4.0 ¡Á 16 Slot£¨16Lanes£©

1 ¡Á PCIe4.0 ¡Á 16 Slot£¨4Lanes£©

1 ¡Á PCIe3.0 ¡Á 4 Slot£¨1Lanes£©

1 ¡Á PCIe3.0 ¡Á 1 Slot£¨1Lanes£©

3 ¡Á SATA3.0

1 ¡Á 2¡Á7-pin gold needle socket with TCM interface

1 ¡Á Line-out, 1 ¡Á Mic-in, 1 ¡Á Line-in, supports 5.1-channel output

1 ¡Á Audio audio pin, 2 ¡Á 5-pin headers, supports Line Out + Microphone In

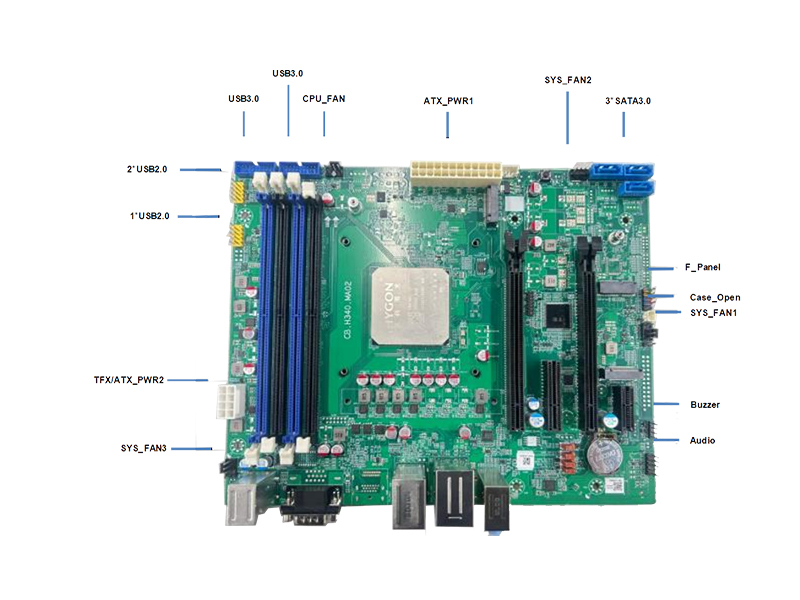

Board-mounted functions

Other interfaces/Features

1 ¡Á M.2 2230 enclosure with Wi-Fi 6 and Bluetooth 5.2 support, compatible with PCIE wireless network cards

1 ¡Á AT/ATX, supports power-on self-boot

1 ¡Á Case-Open pin, 2 pins

1 ¡Á 2¡Á5N9-pin F Panel Header with front-mounted small board buttons and indicator lights

1 ¡Á CPU fan with 4-pin connector; 3 ¡Á SYS fan with 4-pin connector

1 ¡Á OS Recovery key

1 ¡Á Beekeeper's plug pin

supply electricity

power supply mode

ATX24&8Pin

watchdog

output

margin

Interrupt, system reboot

Level 255 Fixed Interval

Physical parameters

size

244mm (L) x 195mm (W)

environment

temperature

humidity

Operating temperature: 0-40¡ãC Storage temperature: -20~60¡ãC

5%~90% without condensation

operating system

edition

Supports desktop versions of domestic operating systems (Unisystem UOS and Kylin)

AOS-SSHG346C1J

Haiguang 4, model 3450,8-core processor, clock speed 3.6GHz
