chip set

No standalone PCH, CPU-integrated I/O

BIOS

Byosoft supports diskless boot, network wake-up, power-on startup, watchdog, and other features.

internal storage

capacity

4x U-DIMM DDR5 modules, 5200MHz clock speed, supports up to 128GB storage capacity

memory

M.2 interface

SATA joggle

1x M.2 SSD with SATA/PCIe 4x signal interface (chip auto-detection)

4x SATA3.0 7-pin standard ports

show

Display slot

Supports independent PCIe 5.0 graphics card expansion

network

slug

2x RTL8111K (optional RTL8125 2.5G network), supports network wake-up and PXE boot

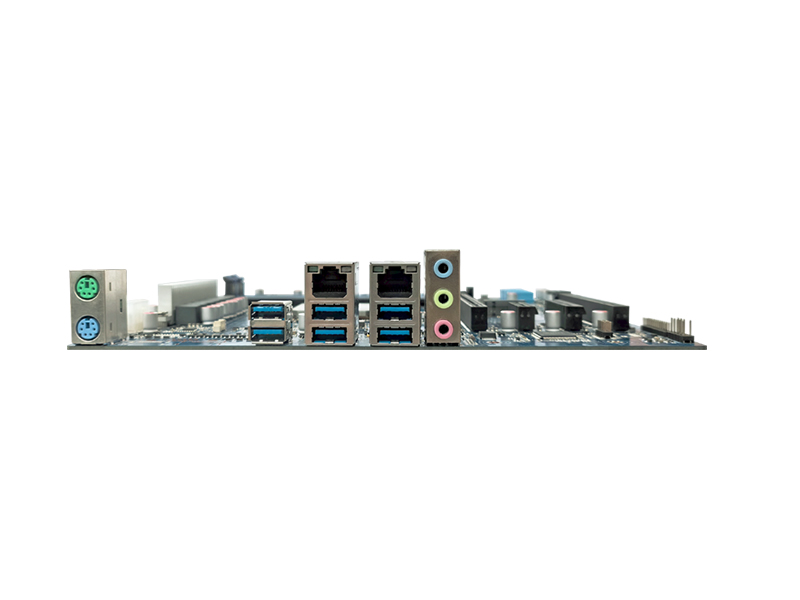

I/O

behind I/O

Built-in extensions

Control chip

output interface

COM

LPT

6x USB 3.0

6x USB 2.0+2x USB3.0

Realtek ALC897

Audio_out+ Mic_in+Line_in

2x RS232/RS485 (jumper selection) + 2x COM RS232

1x LP

Board-mounted functions

Extension interface

Heat dissipation method

1x M.2 2230, supports WIFI/BT

1 PCIe X16 slot supporting PCIe independent graphics cards (X8 channel)

1x PCIe X1 slot

1x PCIe X4 slot

1x PCIe X16 (X8-channel)

Heat sink & fan

supply electricity

power supply mode

ATX supply electricity

watchdog

output

margin

Interrupt, system reboot

Level 255 Fixed Interval

Physical parameters

size

224mm (L) x 240mm (W)

environment

temperature

humidity

Operating temperature: 0-60¡ãC Storage temperature: -20~80¡ãC

5%~90% without condensation

operating system

edition

Windows 10/11; Linux (CentOS, Ubuntu, Fedora, Zhongbiao Kylin, UOS)

AOS-MSHG3464C2LD

HG-3450D 8-core 16-thread processor with a maximum clock speed of 4.0GHz

HG-3490D 16-core 32-thread processor with clock speed up to 2.8GHz and maximum speed of 3.0GHz
