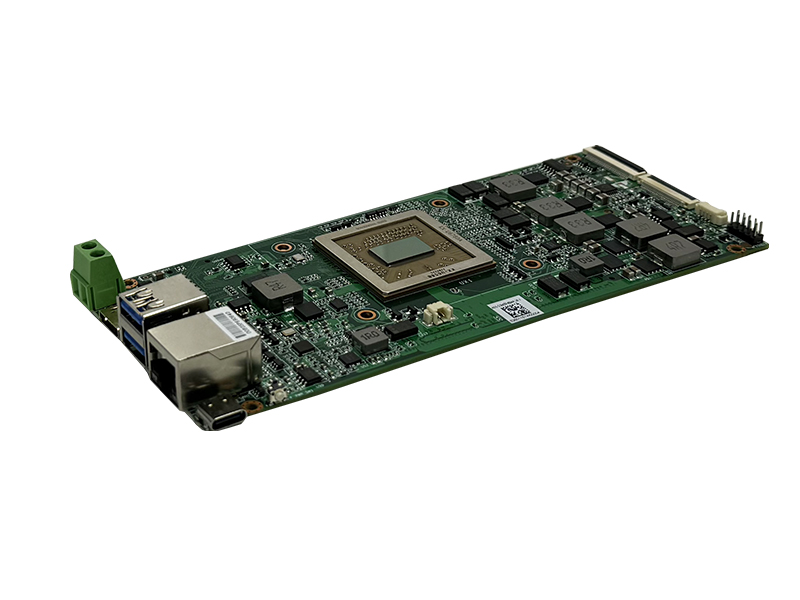

AOS-COMZXK6MA
Product introduction£º
Specification parameters
processor | CPU | Zhaoxin KX-6640MA (quad-core quad-thread, 2.2GHz, 4MB L2 cache, 16nm process, 25W power consumption) Zhaoxin KX-6580 (8-core 8-thread processor, 2.5GHz clock speed, 8MB L2 cache, 16nm architecture, 50W power consumption) Zhaoxin KX-U6780A (8-core 8-thread processor, 2.7GHz clock speed, 8MB L2 cache, 16nm architecture, 70W power consumption) |
chip set | Intel® SOC |
BIOS | Bai Ao supports features such as diskless boot, network wake-up, power-on boot, and watchdog. |
internal storage | capacity | 1* SO-DIMM DDR4 2400 MHz memory , Max.32GB |
memory | M.2 interface | 1*M.2 2280(NGFF) |
show | chip set output | CPU integrated graphics HD Graphics HDMI+EDP (optional) Single display, dual display (synchronous/asynchronous) 1 ¡ÁHDMI (Supports up to 3840x2160 at 30Hz) |
network | slug WIFI | 1 ¡Á 10/100/1000M£¨RJ45 LAN£© 1 x M.2 WIFI 802.11b/g/n £¨M PCIE half card£© |

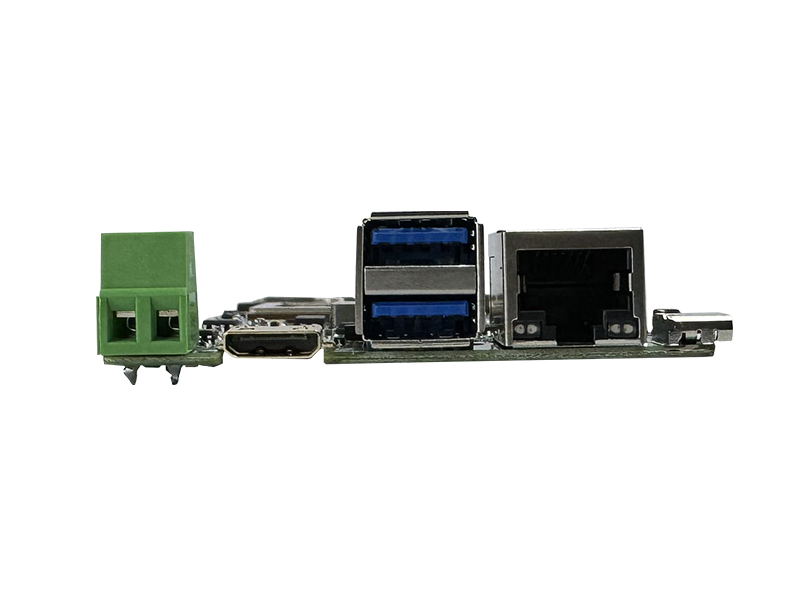

I/O | DC JACK switch HDMI USB3.0 Type-c RJ45 | 1 x 12-19V DC JACK 1 ¡Á Power 1 HDMI 1.4 port and 1 VGA/HDMI port (for dedicated graphics card) 2 ¡Á USB3.0 1 ¡Á type-c(USB2.0) 1 ¡Á RJ45 |
board function | COM mouth USB2.0 EDP FP | 1*ttl (FPC includes expansion board) 2*USB pins (FPC includes expansion board) 1*EDP 1*FP |
source | import rated dissipation | DC JACK 12-19V 60-90W |
watchdog | output margin | Interrupt, system reboot Level 255 Fixed Interval |
Physical parameters | size | 170mm (L) x 70mm (W)x25mm(H) |
environment | temperature humidity | Operating temperature: 0¡ãC to 50¡ãC Storage temperature: -20¡ãC to 70¡ãC 5%~90% No condensation |
operating system | edition | Windows 10/Windows 11/Linux/Kirin/Unisystem UOS |
Order information
Sales model | explain |
AOS-COMZXK6MA | 6780A/6580/6640MA |
AOS- | Optional different base plates |
AOS- | Optional different base plates |
dimensional drawing
application area
Ideal for education, restaurants, hotels, shopping malls, corporate meetings, and government transparency initiatives.
