AOS-MMFTD30W

Product introduction£º

Product Description

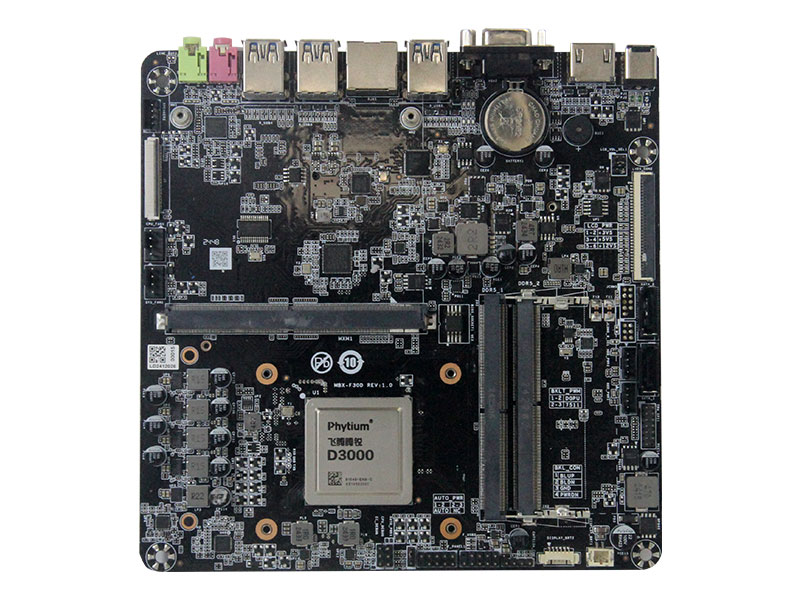

Mini-ITX Industrial Motherboard

Supports Feiteng D3000 octa-core 2.5GHz CPU

2 x DDR5-4800MHz (max 128GB)

Supports 4 USB 3.0 ports and 8 USB 2.0 ports

Supports 1 Gigabit Ethernet port and 6 USB 3.0 ports

Supports MXM graphics cards (Jingjiawei 7201/Core Motion A4/A6 2GB-4GB)

Supports HDMI/VGA/LVDS displays, 2 x SATA, 1 x NVMe

Supports Wake-on-LAN, Power-on, Watchdog Timer, etc.

Supports 12-19V power supply

Compliant with CE, FCC, and ROHS regulations

Specifications and parameters

processor	CPU	D3000  8-core 2.5G
	Chipset	Intel® SOC
memory	Capacity	2*  DDR5 4800 MHz memory ,  Max.128GB
storage	Expansion Slots	1xm.2 NVME 2280 2xSATA
Display	Output	VGA /HDMI /LVDS Optional graphics card)

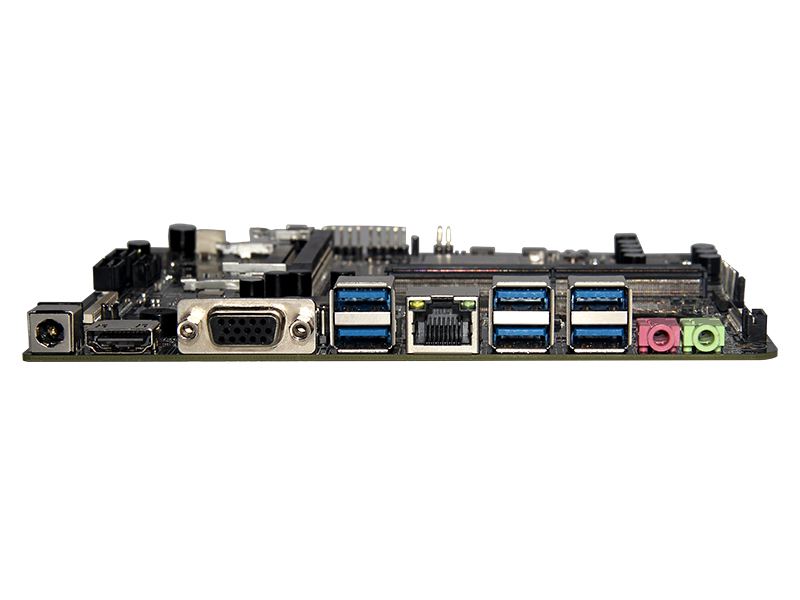

Front I/O	1*DC JACK/1*HDMI/1*VGA/2*USB3.0/1*RJ45/4*USB3.0/1*Audio
Onboard I/O	USB Serial Port Encryption Expansion slot Sound Dot screen	2XUSB2.0 (2x5PIN2.54) 1xRS232(Optional) TPM 2¡Á13 Pin header 1xm.2-Key-E(WIFI card slot)+1Xm.2 NVME 2280(PCIE signal 1xSpeaker (2x3W) 1*LVDS
Power supply	Input	DC12-19V
Environment	Operating Temperature Industrial Humidity	0-60¡ãC  relative humidity, non-condensing
Physical parameters	Size	170x170mm
Operating system	Version	Supports domestic operating systems such as Kylin, UOS, WingOS, FreeOS, and open-source OS.

dimensional drawing

application areas

industrial control computers, industrial tablet PCs, self-service terminals, all-in-onemachines, medical applications, digital signage, POS cash registers, etc.
