Chipset

without

BIOS

Kunlun UEFI BIOS

Memory

Capacity

DDR4-2666  8G , 2*U-DIMM, up to 64 GB

Storage

SATA interface

M.2 interface

2*SATA 3.0
M.2 2280 NVME SSD

Display

chipset
Output

PCIE X16 Connectable graphics card

Network

Chip

1 ¡Á  10/100/1000M

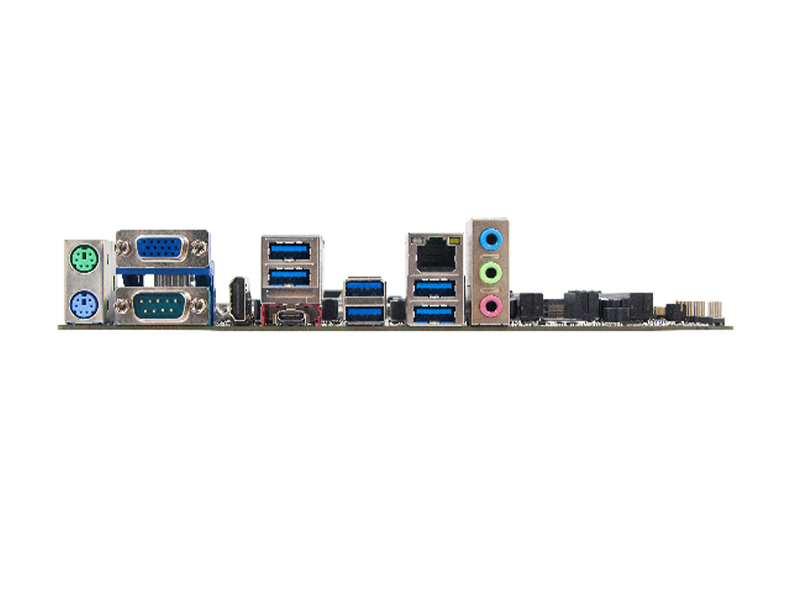

I/O

PS/2

VGA

COM

HDMI

TYPE-C

USB 3.0

RJ45

Audio

2 ¡Á PS/2

1 ¡Á VGA

1 ¡Á COM

1 ¡Á HDMI

1 ¡Á TYPE-C

6x  USB3.2

1 ¡Á 1000M RJ45(Optional dual network ports)

1 ¡Á LINE-OUT &  MIC-IN&LINE IN

Onboard functions

COM Port

SATA

USB

LPT

TPM

PCIE

4 X RS232 string (not available by default, multiple strings are optional)

2 X SATA3.0

1 x USB2.0 pin 2*USB3.0 pin (up to 4 sets of USB3.0 are supported).

1 ¡Á LPT (pin)

1 ¡Á TCM (pin)

2*PCIe x16, (X8/X4 signal)

1* PCIe x1 (four serial parallel signals can be extended)

Power supply

Input

Rated power

ATX  1*24Pin +1*8Pin

200W

Watchdog

Output

Interval

Interrupt, system restart

255-level timing interval

Physical parameters

Dimensions

225mm (L) x 205mm (W)

Environment

Temperature

Humidity

Working temperature: 0¡ãC ~50¡ãC Storage temperature:-20 ~ 70 C.

5%~90% non-condensing

Operating system

Version

Kirin /UOS/ Linux/WIN10/WIN11

AOS-MSZX706C4W

 ZX7000/Single network/8USB3.0/5COM/DDR4/

AOS-MSZX706C4W2

 ZX7000/Double network/8USB3.0/5COM/DDR4/
