Chipset

SOC

BIOS

Baiao BIOS supports diskless startup, network wake-up, power on, watchdog and other functions.

Memory

Capacity

4GB  4*DDR4 2133/2400 MHz memory ,  Max.64GB

Storage

SATA interface

M.2 interface

4*SATA 3.0

1*M.2 2280(NVME)

Display

the graphics chip

output

PCIE (Jingjiawei 7201/9100/ Fenghua No.2 /RX550 4G)

VGA+HDMI single display, dual display (synchronous/asynchronous display)

1 ¡Á VGA   £¨max£º1920¡Á1080£©

      1 ¡ÁHDMI   £¨max£º3840x2160 30HZ£©

Network

Chip

WIFI

1 ¡Á  10/100/1000M RJ45(Optional dual network ports)

1 X M.2 WIFI

I/O

USB 3.0

RJ45

Audio

COM Port

6 x  USB3.0

2 ¡Á RJ45 interface

1 ¡Á LINE-OUT &  MIC-IN£¬LINE- IN

1*RS232

Onboard functions

USB3.0

USB2.0

FP

PCIE

TPM

LPT

2*USB3.0

2*USB2.0

1*FP

1* PCIE X16 4.0

1* PCIE X16 3.0£¨X4Ðźţ©

1*PCIE X1

1*TPM

1*LPT

Power supply

Input

Rated power

ATX 24PIN+4PIN

90W

Watchdog

Output

Interval

Interrupt, system restart

255-level timing interval

Physical parameters

Dimensions

305mm (L) x 245mm (W))

Environment

Temperature

Humidity

Working temperature:--10¡ãC ~70¡ãC Storage temperature:-20 ~ 75 C.

5%~90% non-condensing

Operating system

Version

Kirin /UOS/ Centos/Linux

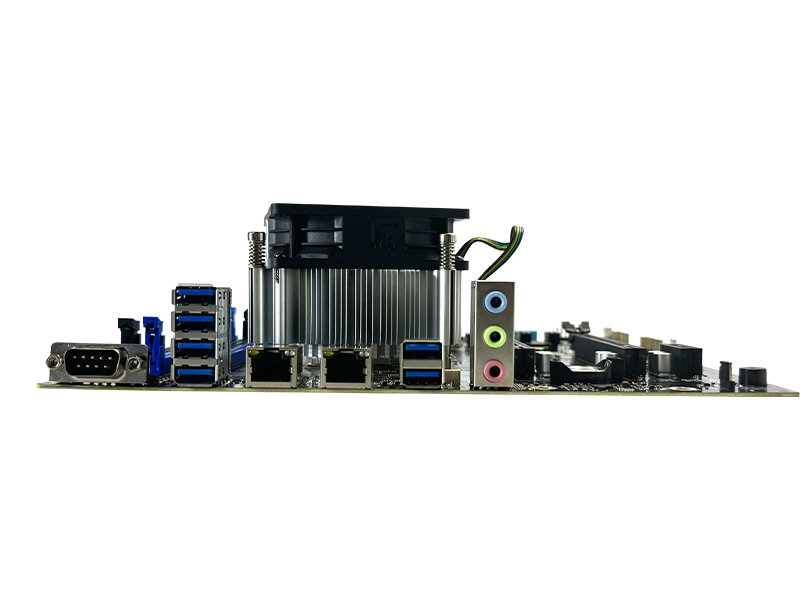

 AOS-MSHG352LJC

Haiguang 3350 3.0G/ Double Net Single COM
