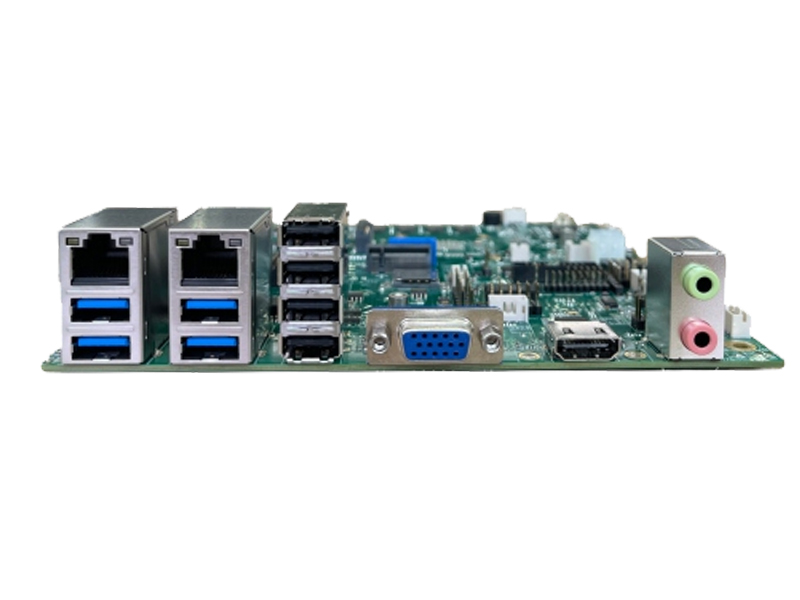

AOS-MMFTE23Y
Product introduction£º
Product introduction
Domestic Feiteng E2000Q (embedded motherboard)
Onboard memory 4/8GB, maximum 16GB
Support up to 14¡ÁRS232
Support 4 groups of USB3.0 and 8 groups of USB2.0
Support 3 Gigabit network ports, support 1 GPIO
Support 1x national secret security module (optional)
Support onboard EMMC, TF card, mSATA, SATA, NVMe
Support network wake-up, power-on, watchdog, etc.
Optional 100% domestic production
Products comply with CE FCC ROHS specifications
Specification
Processor | CPU | E2000Q 2x2.0GHz+2x1.5GHz(2x1.8GHz+2x1.5GHz) |
Chipset | Intel® SOC | |
Memory | Capacity | 4/8GB DDR4 2600 MHz memory , Max.16GB |
Storage | expansion slot | 1xm.2-Key-B(SIM card slot) +1xmini-PCIe(x2 signal) |
Display | Output | VGA0+VGA1/HDMI/eDP/LVDS(VGA0+VGA1+HDMI+eDP/LVDS) |
cache | L2 cache | 2MB+256KB |
IO | Ethernet USB serial port encrypt GPIO expansion slot sound Electromagnetic pen compatibility | 3x10/100/1000M adaptive 4xUSB3.0,4xUSB2.0,4xUSB2.0(2x5PIN2.54) 8xRS232(2xRS232/485/422 optional), 6xRS232 2¡Á13 needle arrangement Default 8 GPIO£»; Optional 16 GPIO+8+8 gpos (3.3v-TTL). 1xm.2-Key-B(SIM card slot) +1xmini-PCIe(x2 signal) 1xLine out, 1xMIC-in (optional amplifier small board 4/8¦¸, 2x20W) classs B |
Power supply | input socket | DC12V~24V 4PIN socket |
Environment | Working temperature Industrial humidity | 0-60 C (optional-40-85 C) 5-95%RH, noncondensable |
Physical parameters | Dimensions | 170x170mm |
Operating system | Version | Holding Kylin, Wing Hui Freeos and other domestic operating systems, Optional 100% localization |
Drawing
Areas of application
Industrial computer, industrial tablet computer, self-service terminal, all-in-one machine, medical treatment, digital sign, POS cash register, etc.
