chip

X100 display chip

Internal memory

Two DDR4 modules 2666 MHz MAX 64G

store

2 x SATA 3.0, 1 x M.2 2280 port

sound card

Realtek supports 5.1 channels

network

2 x 1000 network card,

reveal

VGA+LVDS, VGA+HDMI, LVDS+ HDMI Synchronous and asynchronous display

X100 video card

VGA+HDM +LVDS Synchronous/asynchronous display

COM

6xCOM RS232(Optional)

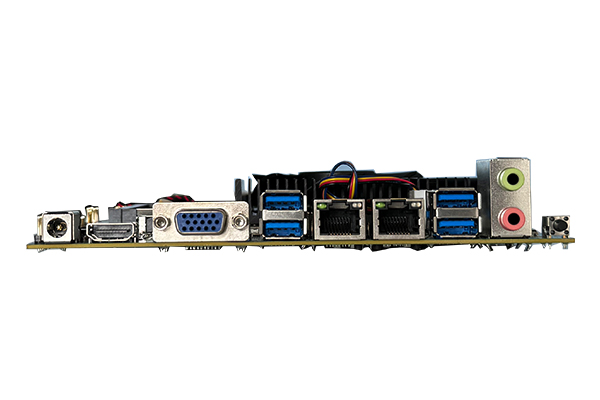

Backplane I/O

1 x DC interface, 4 x USB 3.0, 1 x VGA,1 x HDMI,

1 x Line out1 x Mic in,2 x 1000 network ports

Onboard I/O

1 x front audio pin,1 x front panel pin, 4 x USB 2.0 pin,1 x LVDS/EDP pin,1 x Buzzer,1 x DC power input interface,1 x LCD PWR,1 x HDD_PWR interface,1 x SATA3.0 interface, 6 x COM interface, 1 x TPM,1 x CPU fan socket,1 x system fan socket,1 x PCIE*16 port, supporting WiFi,1 x M.2 port supporting WiFi,1 x M.2 2280 port (supporting SATA/NMVE mode),1X GPIO, 1 x TPM,1 x M.2 port,1 x M.2 port, supporting SATA/NMVE mode

Special function

Holding watchdog, no disk start, network wake up, power on, timed boot

Profile size

Thin mini-itx 170mm*170mm
