Chip

SOC chip

Internal memory

2 pieces  DDR4 2666 MHz  MAX 64G

store

2¡ÁSATA 3.0£¬1 ¡ÁM.2 2280 port

sound card

Realtek  Supports 5.1 channels

network

2¡Á1000 Network adapter

reveal

PCIE Video card display

COM

10xCOM RS232(selectable)

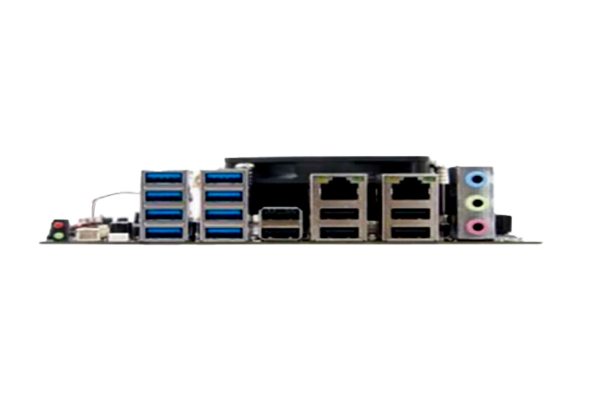

Backplane I/O

2¡Á COM port , 4¡Á USB 3.0, ,1¡Á VGA,1¡Á HDMI,

1¡Á Line out1¡Á Mic in ,2¡Á 1000 Net interface,

Onboard I/O

1 x front audio pin,1 x front panel pin,10* USB 2.0 interface,1 x buzzer,1 x ATX power input port,1 x LCD PWR,2 x HDD_PWR port,2 x SATA3.0 port, 8 x COM port,1 x TPM,1 x CPU fan socket,1 x System fan socket, 1 x PCIEX16 ports support graphics cards,1 x Mini pcie ports support WiFi, and 1 x Msata ports

Special function

Holding watchdog, no disk start, network wake up, power on, timed boot

Profile size

Thin mini-itx 170mm*170mm
