AOS-MMZXK66C12L2W
Product introduction£º
Specification parameter
CPU | Support Megabore KX-U6780A(Octa-core, octa-thread /2.7GHz/8MB second-level cache /16nm/70W) Mega Core KX-6640MA(quad-core quad-thread /2.2GHz/4MB secondary cache /16nm/25W) |
chip | SOC |
Internal memory | Two DDR4-2400/2666 MHz MAX 32G |
store | 2 x SATA 3.0, 1 x M.2 NVME SSD port, supporting 2280 KEY M(PCIE x 4) |
sound card | Realtek supports 5.1 channels |
network | 2 x 1000M network card chip,PCI-E bus Gigabit network card CPU integrated graphics card |
reveal
| VGA+LVDS, VGA+HDMI, LVDS+ HDMI Synchronous and asynchronous display |
CPU integrated graphics card | |
Dual display | VGA+HDM,VGA+LVDS,HDMI+LVDS Synchronous/Asynchronous display) |
COM | 6xCOM RS232 |
USB | 6 x USB 3.0,6 x USB 2.0, |
Backplane I/O
| DC,PS2,4*USB3.0,2*USB2.0,HDMI,VGA,LPT,2*LAN,Audio |
1 x front audio pin, 1 x front panel pin, | |
Onboard I/O
| 2 x USB3.0 pin port,4 x USB2.0 pin port,1x LVDS pin port,1x TPM security module port,1 XLPT port |
1 x buzzer, | |
1 x 12-19V DC power input interface, 1 x LCD PWR,2 x HDD_PWR interface,2 x SATA3.0 interface, 1 x CPU fan socket, | |
1 x system fan socket, 1 x M.2 WIFI interface | |
Special function | Holding watchdog, no disk start, network wake up, power on, timed boot |
dimension | 170x170mm |

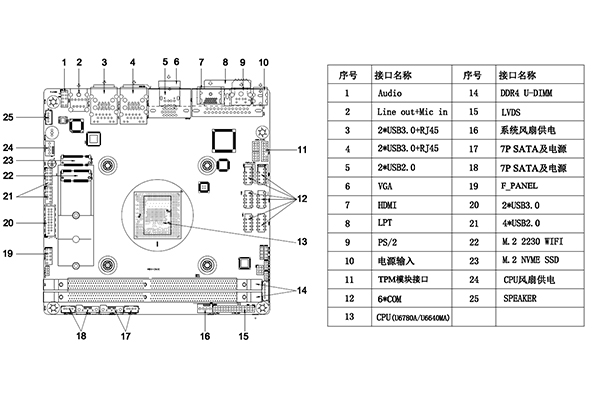

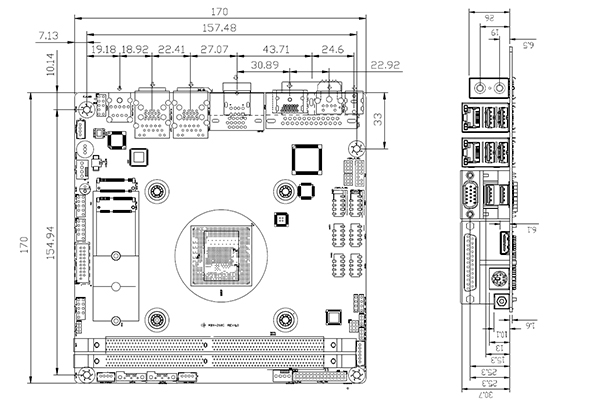

Dimensions and definitions
