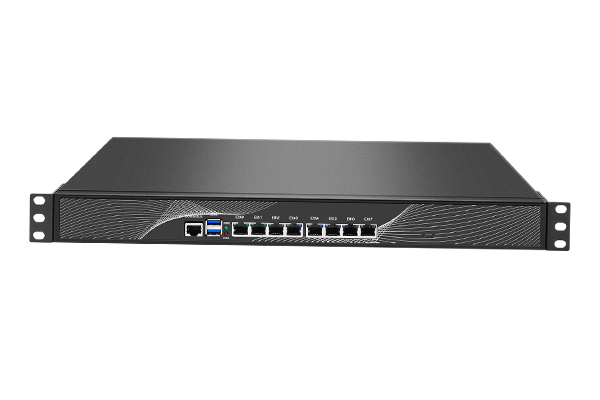

AOS-SNM6I43S10U
Product introduction£º
Specification parameter
processor
| CPU | Intel Core i3-2310MDual-core quad-thread /2.1GHz/3MB Level 3 cache/HD3000/32nm/35W) |
chipset | Intel® HM65 | |
BIOS | The AMI is 32Mbit and supports disk-free startup, wake up on the network, power-on, and watchdog functions | |
Internal memory | capacity | 4GB SO-DIMM DDR3 1333 MHz memory , Max.8GB |
store | MSATA interface MINI PCIE | 32G SSD 1xMini PCIE |
reveal | chipset exportation
| CPU integrated Graphics card HD Graphics VGA+HDMI single display, dual display (same/asynchronous display) 1 ¡Á VGA (Max support resolution: 1920¡Á1080) 1 ¡ÁHDMI (Max support resolution: 1920x1080) |
network | chip WIFI | 8 ¡Á INTEL 82574L 10/100/1000M£¨RJ45 LAN£© 1 x WIFI Module support 802.11b/g/n £¨Mini PCIE half card£© |
I/O | USB 3.0 COM RESET Power button LED light DC JACK | 2x USB3.0 1 ¡ÁCOM£¨RS232£© 1 ¡Á Reset button 1 ¡Á power button 1x power indicator &1x hard disk indicator 1 ¡Á DC JACK |
Power source | input Rated power consumption | DC 12~19V 60W |
Guard dog | exportation | The system restarts. Procedure 255 level timing interval |
Physical parameter | interval | 430mm (L) x 240mm (W) x 44.45mm (H) |
environment | dimension | Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20 ¡ãC ~70¡ãC 5% to 90% no condensation |
Operating system | temperature | Windows xp/Windows 7 / windows8 / Linux |
Ordering information
Sales model | Instructions |
AOS-SNM6D43S10U | Intel Pentium B815 2.1GHz 4G memory 32GB SSD 10 Network port |
AOS-SNM6I43S10U | Intel Core i3-2310M 2.1GHz 4G memory 32 GB SSD 10 Network port |
AOS-SNM6F43S10U | Intel Core i5-2520M 2.5GHz 4G memory 32GB SSD 10 Network port |
AOS-SNM6J43S10U | Intel Core i7-2620M 2.7GHz 4G memory 32GB SSD 10 Network port |
Areas of application
Suitable for education, restaurants, hotels, shopping malls, company meetings, public affairs and other areas.
