Chipset

Intel® H510/B560/W580

BIOS

AMI 32Mbit£¬supports diskless boot, network wake-up, power-on boot, watchdog and other functions

Memory

Capacity

DDR4 16GB , MAX  64G

Storage

SATA interface

M.2 interface

2*SATA

1* 256G SSD

Display

Chipset

Output

HDMI+VGA+DP single display, dual display, (synchronous/asynchronous display)

     1 ¡ÁHDMI (maximum supported resolution: 3840x2160 30HZ)

              1 ¡ÁDP (maximum supported resolution: 3840x2160 60HZ)

Network

Chip

WIFI/3G/4G

2 ¡Á  10/100/1000M£¨RJ45 LAN£©

1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£©

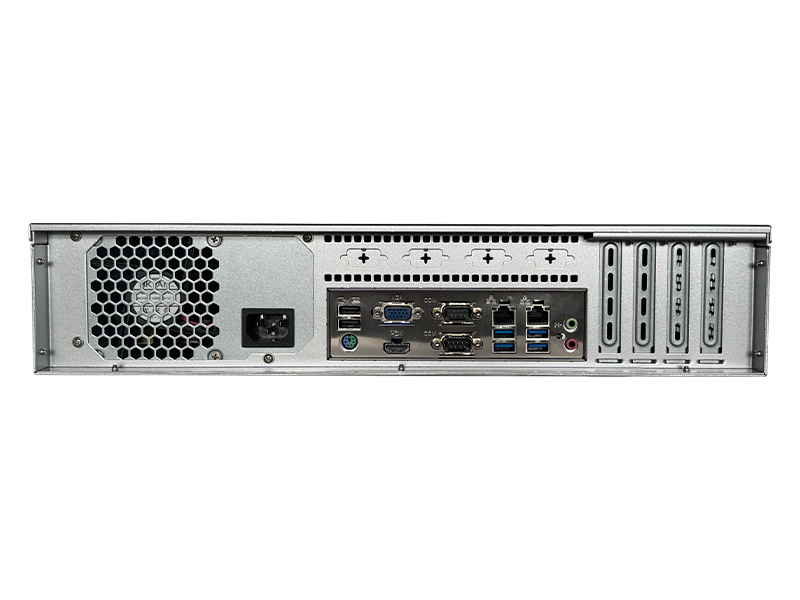

I/O

USB 3.0

USB 2.0

PS/2

COM port

Audio

4x  USB3.0

4¡Á USB2.0

1 ¡Á PS/2 keyboard and mouse

1 ¡Á COM port

1 ¡Á LINE-OUT &  MIC-IN &1x LINE IN£¬integrated 6-channel high-fidelity sound

Onboard functions

COM port

USB2.0

ESPI port

TPM/TCM port

GPIO

I²C/SM bus

PCIE

6*COM((COM1 support RS232/485,COM2-6 support RS232)£¬

2*USB2.0

4 RS422 or RS485 can be expanded (optional)

Onboard encryption chip SLB9670 (SLB9672) supports TPM2.0 (default) / BOM optional TCM chip

8-bit digital I/O, provides power and ground, +5V level

One 4Pin I²C Bus interface (optional)

1*PCIE3.0 X16

Power

Input

Rated power consumption

ATX  1*24Pin (support ATX/AT power on/off mode)

300W

Watchdog output

Input

Interval

Interrupt, system restart

255-level timing interval

Environment Temperature

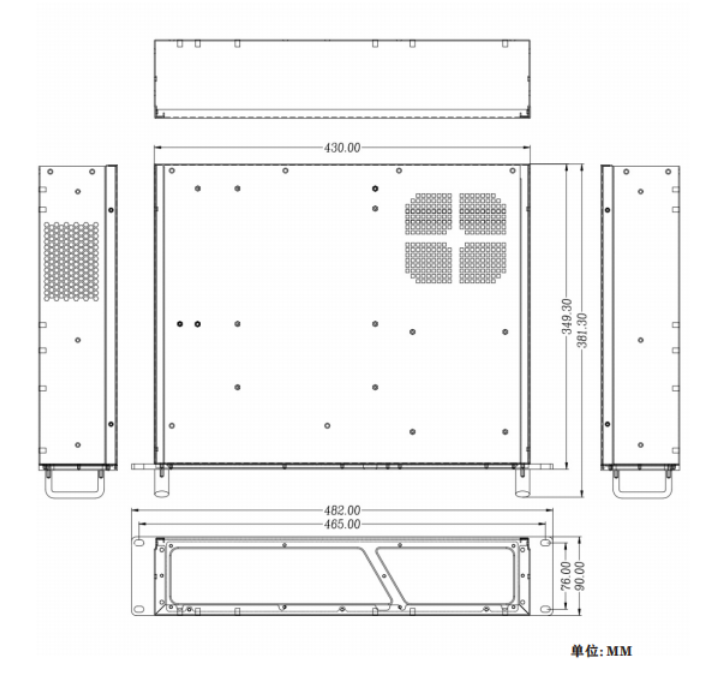

Dimensions

430mm (L) x 349mm (W)  x 88.8mm (H)

Environment

Temperature

Humidity

Operating temperature£º0¡ãC ~50¡ãC  Storage temperature£º-20~70¡ãC

5%~90% non-condensing

Operating system

version

Windows 10/Windows 11 / Linux

AOS-SSH11J162S5IHBU

Intel I7 7700  3.6GHz  16GMemory   256G SSD  GTX1050TI 4G

AOS-SSH11D41S4HBU

Intel Pentium G4400  3.3GHz     4G Memory    128G SSD

AOS-SSH11I41S4HBU

Intel Core i3-6100    3.7GHz     4G Memory     128G SSD

Intel Core i3-7100    3.9GHz     4G Memory     128G SSD

Intel Core i3-8100    3.6GHz     4G Memory    128G SSD

Intel Core i3-9100    3.6GHz     4G Memory    128G SSD

AOS-SSH11F41S4HBU

Intel Core i5-6500    3.2GHz     4G Memory     128G SSD

Intel Core i5-7500    3.4GHz     4G Memory     128G SSD

Intel Core i5-8500    3.0GHz     4G Memory     128G SSD

Intel Core i5-9500    3.0GHz     4G Memory    128G SSD

AOS-SSH11J41S4HBU

Intel Core i7-6700    3.4GHz     4G Memory    128G SSD

Intel Core i7-7700    3.6GHz     4G Memory     128G SSD

 Intel Core i7-8700    3.2GHz    4G Memory    128G SSD
