AOS-SSH11F161S1T2U
Product introduction£º
Product introduction

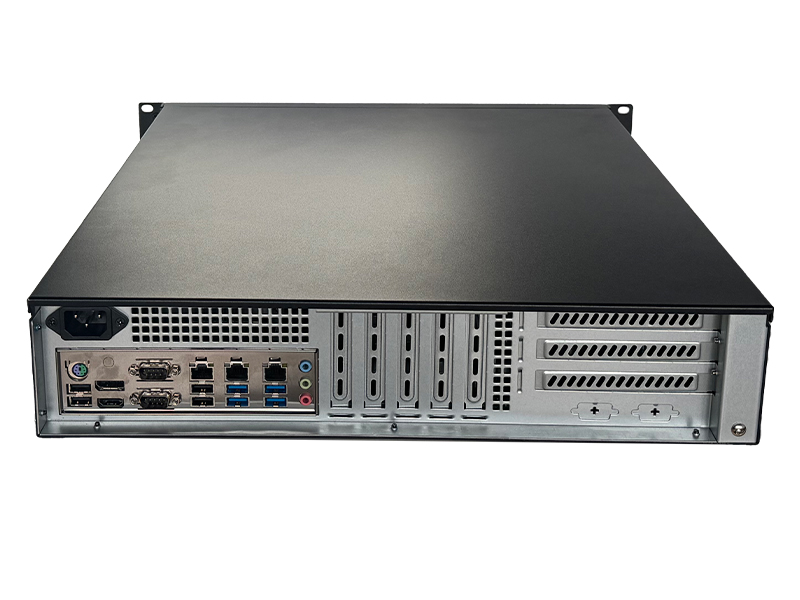

2U server
Support Skylake/KabyLake LGA1151 package I3/I5/I7CPU
Support INTEL H110/Q170/C236 high-speed chipset
Support three Gigabit network ports, support asynchronous dual and triple displays (HDMI+DP+VGA)
Support multi-channel DDR4 memory, maximum support 64G
Support 6*SAS (optional), 1*SATA3.0 interface
Support 1*PCIE 3.0X16, 1*PCIEX4, 4*PCI
Support network wake-up, power-on, watchdog, etc.
The product complies with CE FCC ROHS specifications
Specifications
processor | CPU | Support Intel® /I5 9500 6-core (3.0GHz/9MB/Ultra-core graphics card630/14nm/65W |
Chipset | Intel® Q170 | |
BIOS | AMI 32Mbit£¬support diskless boot, network wake-up, power-on boot, watchdog and other functions | |
Memory | capacity | 16GB DDR4 |
storage | SATA interface SAS interface M.2 interface | 1*SATA 1TB HDD 1*SAS (Optional support 24*SATA 3.0) 1*M.2 128G SSD |
show | Chipset Output
|
HDMI+DP Single display, dual display, (synchronous/asynchronous display) 1 ¡ÁHDMI £¨Maximum supported resolution£º3840x2160 30HZ£© 1 ¡ÁDP £¨Maximum supported resolution£º3840x2160 60HZ£© |
network | Chip WIFI/3G/4G | 2 ¡Á INTEL I211AT 10/100/1000M£¨RJ45 LAN£© 1 ¡Á INTEL I219 10/100/1000M£¨RJ45 LAN£© 1 x WIFI Module support 802.11b/g/n £¨M.2 PCIE half card£© |
I/O | USB 3.0 USB 2.0 PS/2 COM port Audio | 4x USB3.0 4¡Á USB2.0 1 ¡Á PS/2 Keyboard and Mouse 2 ¡Á COM interface (one set of VGA is optional) 1 ¡Á LINE-OUT & MIC-IN &1x LINE IN£¬integrated 6-channel high-fidelity audio |
Onboard Features | COM port USB2.0 USB3.0 PLT FP LED EDP SPK PCIE
| 6*RS232£¨Multiple COM ports optional£© 4*USB2.0 2*USB3.0 1*PLT print port 1*FP 1*SAS LED 1*EDP 1*SPK 1*PCIE3.0 X16 1*PCIE X4 4*PCI 1*MINI PCIE (Support switch card) |
power supply | Input Rated power consumption | ATX 1*24Pin +1*8Pin 400W |
Watchdog | Output Interval | Interrupt, system restart 255 level timer interval |
Physical parameters | size | 482.6mm (L) x 458mm (W) x 88.6mm (H) |
environment | Temperature Humidity | Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20~70¡ãC 5%~90% non-condensing |
operating system | Version | Windows 10/Windows 7 / windows8 / Linux |
rdering Information
Sales Model | illustrate |
AOS-SSH11F161S1T2U | Intel Core i5-9500 3.0GHz 16G RAM 128G SSD 1TB HDD |
AOS-SSH11I41S2U | Intel Core i3-6100 3.7GHz 4G RAM 128G SSD Intel Core i3-7100 3.9GHz 4G RAM 128G SSD Intel Core i3-8100 3.6GHz 4G RAM 128G SSD Intel Core i3-9100 3.6GHz 4G RAM 128G SSD |
AOS-SSH11F41S2U | Intel Core i5-6500 3.2GHz 4G RAM 128G SSD Intel Core i5-7500 3.4GHz 4G RAM 128G SSD Intel Core i5-8500 3.0GHz 4G RAM 128G SSD Intel Core i5-9500 3.0GHz 4G RAM 128G SSD |
AOS-SSH11J41S2U | Intel Core i7-6700 3.4GHz 4G RAM 128G SSD Intel Core i7-7700 3.6GHz 4G RAM 128G SSD Intel Core i7-8700 3.2GHz 4G RAM 128G SSD
|
Dimensions
Application Areas
Applicable to education, restaurants, hotels, shopping malls, company meetings,government affairs disclosure and other fields¡£
