Chipset

Intel® H110/H310C/B250

BIOS

AMI 32Mbit£¬supports diskless boot, network wake-up, power-on boot, watchdog and other functions

Memory

Capacity

16GB SO-DIMM DDR4 ,  Max.64GB

Storage

SATA interface

MINI PCIE

1TB SSD

1xMini PCIE

Display

Chipset

Output

CPU integrated graphics HD Graphics

VGA+HDMI single display, dual display (synchronous/asynchronous display)

1 ¡Á VGA (maximum support resolution: 1920¡Á1080)

1 ¡ÁHDMI (maximum support resolution: 4096x2304)

Network

Chip

WIFI

2 ¡Á RTL8111E  10/100/1000M£¨RJ45 LAN£©

1 x WIFI Module support 802.11b/g/n £¨Mini PCIE half card£©

I/O

USB 3.0

USB 2.0

COM

Power button

LED light

Audio

4x USB3.0

2¡Á USB2.0+2*USB2.0 pins

1-2x COM

1 ¡Á power button

1 x power indicator & 1x hard disk indicator

1 ¡Á LINE-OUT & MIC-IN, integrated 6-channel sound ALC662 sound card chip

Power

Input

Rated power consumption

AC  220V

150W

Watchdog

Output

Interval

Interrupt, system restart

255 level timer interval

Physical parameters

Dimensions

427mm (L) x 306mm (W) x 88.8mm (H)

Environment

Temperature

Humidity

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20~70¡ãC

5%~90% non-condensing

Operating system

Version

Windows 10/Windows 7 / windows8 / Linux

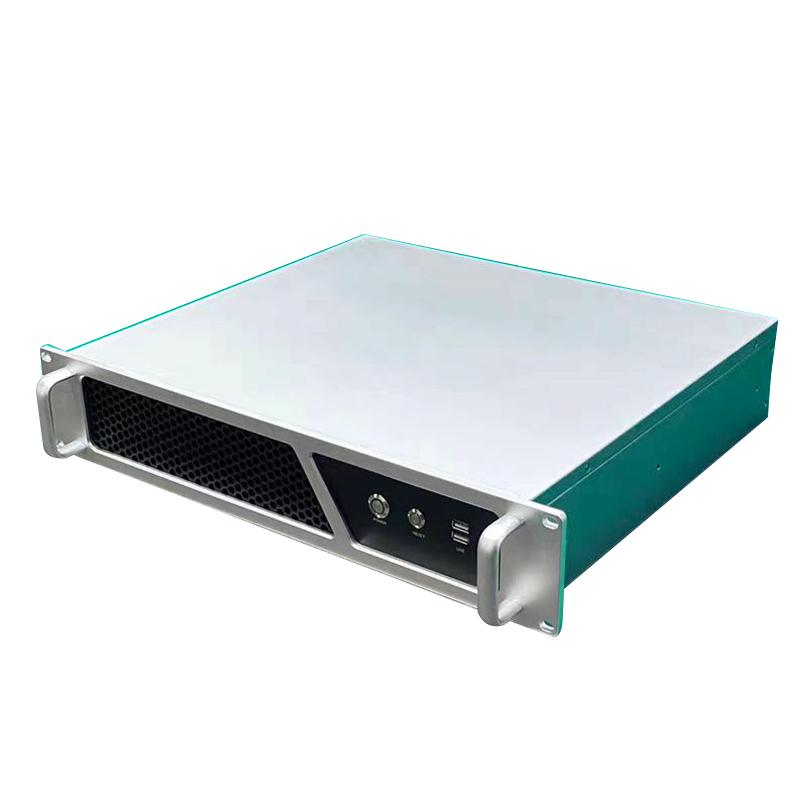

AOS-SSHB25F161TS2U

Intel Core i5-9500   3.0GHz     16G RAM   1T SSD
