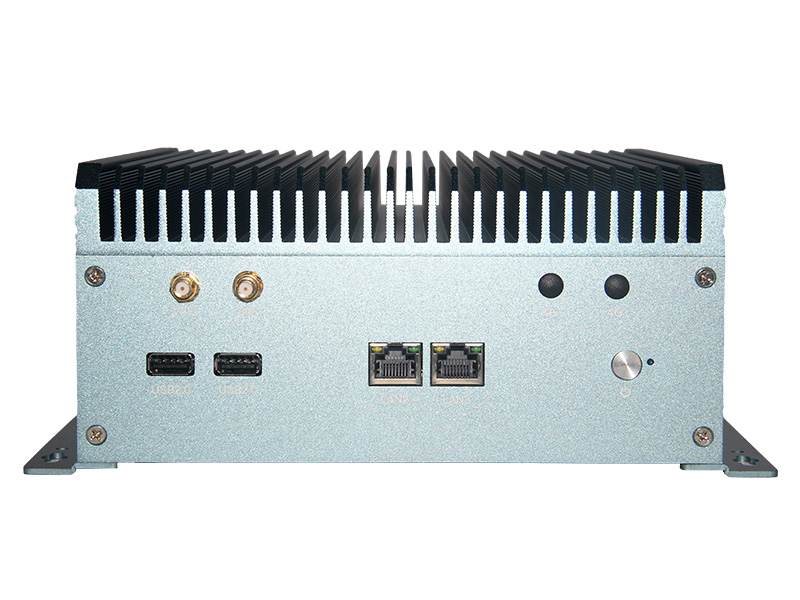

AOS-SEAUF81S2L6CX
Product introduction：
Embedded Fanless Industrial PC
On-board Intel@ Tigerlake-U 11th Gen i3/i5/i7 CPUs optional
On-board Intel@ Alderlake-U 12th-13th Gen i3/i5/i7 CPUs optional
Supports dual-channel DDR4 memory, maximum 64GB
Supports 6×COM ports, 2-4 Gigabit Ethernet ports (2XPOE)
Supports 3×USB 3.0, 5×USB 2.0
1×HDMI, 1×DP, 1×VGA triple display output, simultaneous/asynchronous display
Supports HDMI_IN signal acquisition
Supports 9-36V wide voltage input
Supports 4-in-4-out GPIO/DI/DO and other function expansions
Supports watchdog timer, Wake-on-LAN, power-on timed power-on
Product complies with CE, FCC, and RoHS standards
Specification
Processor | CPU | Onboard Intel® Alderlake-U I5-1240P 12 Core 16 thread CPU (I3 1220P/I3 1315U/I5 1240P/I5 13420H /I7 1260P/I7 12650H) CPU(optional) |
Chipset | SOC | |
BIOS | AMI 32Mbit，supports diskless boot, network wake-up, power-on, watchdog and other functions | |
Memory | Capacity | 2×SODIMM 4G, Support DDR4 2400MHz Max 64GB |
Storage | M.2 SATA | 128G SSD NGFF/NVME SSD(optional) |
Display |
Output/Input
|
1×DP+1×HDMI +1×VGA output,Support Synchronous/Asynchronous Triple-disply Function 1XHDMI_IN Input（Signal Acquisition) |
Internet | Chip
WIFI | 1× RTL8111H+1 × INTLEL I219 10/100/1000M Can expansion2×intel i226/2XRTL8111H Network，Can optional Support POE Power Supply） 1 x WIFI Module support 802.11b/g/n （M.2 half card） (optional)1×MINI PCIE 3G/4G
|
I/O | USB 3.0 USB2.0 COM GPIO Power button SW Reset LED DC JACK One-click restore Audio | 3× USB3.0 5× USB2.0 6x COM(optional) 1× 4 In 4 out GPIO or DI/DO（Phoenix Terminal） 2× power button 1× Switch（Phoenix Terminal） 1 × Reset button 1 x power indicator light & 1x hard disk indicator light 1 × DC JACK 1 x One-click restore 1 × LINE-OUT & MIC-IN ，integrated 6channel audio ALC897 Sound card chip |
Power | Input Rated Power | DC 19V or 9-36V input 90-200W |
Watchdog | Output intervals | Interrupt, system restart 255 Levels Timing Interval |
Physical Parameters | Size | 235mm（L）×215mm（W）×97mm（H） |
Environment | Temperature Humidity | Operating temperature: 0°C ~50°C Storage temperature: -20~70°C 5%~90% non-condensing |
Operating System | Versions | Windows 10/ Windows11/Linux |
Ordering Information Intel 12-13 generation CPU
Sale Model | Illustrate |
AOS-SEAUI81S2L6CX | Intel I3 1220P/I3 1315P 4G 128G SSD |
AOS-SEAUF81S2L6CX | Intel I5 1240P/I5 13420H 4G 128G SSD |
AOS-SEAUJ81S2L6CX | Intel I7 1260P/I7 12650H 4G 128G SSD |

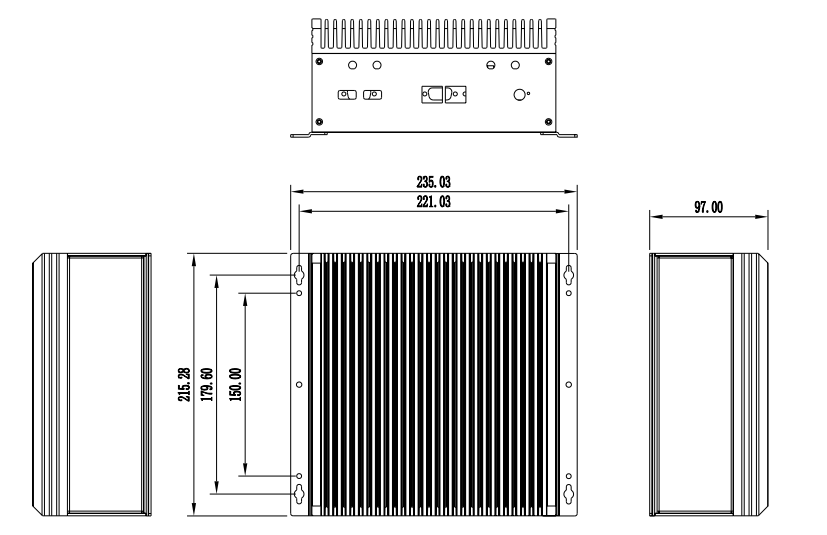

Size Image
Application areas
Self-service terminals, industrial robot equipment, security, robots, industrial automation, visual inspection, government transparency, and other fields
