AOS-SEQ17I82S10J

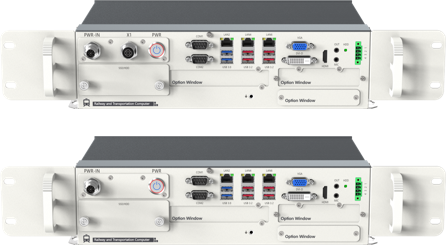

Product introduction：
Product introduction
Intel® 6~14th i3-6100/i5-7400T/i7-8700/ i7-9700/i9-9900T/ i3-10100/
i5-11400/i7-12700/i9-12900/ i9-13900/ I5-14400, etc. optional
Intel® H110/Q170/H410/Q470/H610/Q670 chipset
Supports 2 x DDR4 2666/2933/3200MHz SO-DIMM memory slots
Provides 1 x VGA, 1 x DVI-D, 1 x HDMI display interface
Rich interface expansion capabilities, expandable COM, USB, SMBUS, PS/2, LPT,
16/32 GPIO, multi-port visual card, light source controller
16/32 GPIO optional, optional motherboard direct output standard GPIO, optional optocoupler isolation rugged GPIO
Support Win10/11/Linux
EMC/certification CE/FCC/CCC
PRODUCTSPECIFICATIONS
MODEL | AOS-SEQ17I82S10J |
CPU | Intel® 6~14th i3-6100/i5-7400T/i7-8700/ i7-9700/i9-9900T/ i3-10100/ i5-11400/i7-12700/i9-12900/ i9-13900/ I5-14400，etc. optional |
Chipset | Intel® H110/Q170/H410/Q470/H610/Q670Chipset |
BIOS | 64MbSPIFLASH |
Memory | Supports 2 x DDR4 2666/2933/3200MHz SO-DIMM memory slots, up to 64GB |
show | Provides 1 x VGA, 1 x DVI-D, 1 x HDMI display interface |
network | 1 x Intel® i210AT，1 x Intel® i219，1 x Intel® i225V 2.5G Network Card |
storage | 1 x mSATA，1 x m.2 M-Key SATA/NVMeX4 2280（Q670） Optional 2.5-inch or 3.5-inch hard disk slots, Q670 supports dual hard disk RAID0 acceleration/RAID1 mirroring |
USB | Default 4 x USB 3.2 GEN2, 2 x USB 3.0 GEN1, more USB ports can be expanded |
COM | Default 2 x COM, optional RS232/422/485 and other protocols, optional chip isolation, optional optocoupler isolation, etc., can be expanded to more COM interfaces |
Expansion interface Optional | Rich interface expansion capabilities, including COM, USB, SMBUS, PS/2, LPT, 16/32-channel GPIO, multi-port vision card, light source controller |
Expansion slot Optional | Rich slot expansion capabilities, 1 x full-length miniPCIE slot, expandable wifi module, 4G module, MVB module and other general/special modules; 1 x m.2 B-Key 3042/3052 slot, expandable 4G, 5G modules, etc.; PCIE16X, 4X (Q670), 1X, PCI slots are flexible combinations, dozens of expansion slots are optional |
Audio | Realtek ALC987 Sound card, support Line-out, Mic-in |
GPIO Optional | 16/32 GPIO optional Optional motherboard direct output standard GPIO Optional optocoupler isolation rugged GPIO, supports dry contact, wet contact, bidirectional optocoupler isolation, withstand voltage up to 80V. Optional NPN, PNP mode. DI is to filter out interference, no action below 5V. DO is amplified by OD gate, the output current can reach 300-500mA |
Watchdog | Watchdog Reset function, supports 1~255 seconds system restart |
Power interface | Lockable power supply interface, input voltage 12V, 20V, 24V, 36V, 48V, 55V optional, circular and wiring type power terminals are available |
operating system | support Win10/11/Linux |
Fanless design | Enclosed fanless body heat dissipation eliminates the potential malfunction caused by traditional built-in cooling fans and their dust |
Temperature control auxiliary cooling fan | An optional external temperature-controlled auxiliary fan can be installed. When the temperature is not high, the fan runs at idle speed. When the temperature rises, the fan speed increases until it runs at full speed. It is easy to disassemble and maintain. For high-temperature and closed environments, an external temperature-controlled auxiliary cooling fan can be installed to assist in cooling, enhance cooling, improve system operation comfort, and enhance system stability. |
Placement | Horizontal placement and fixing method, multi-slot model supports vertical placement and fixing method |
Work Environment | Operating temperature: -10℃ ~ 60℃, storage temperature: -20℃ ~ 85℃ Operating humidity: 5% ~ 95% (operating, no condensation) Vibration With SSD: 5Grms/5~500Hz/random; With HDD: 1Grms/5~500Hz/random Shock With SSD: 50G/half-sine/lasting 11ms; With HDD: 20G/half-sine/lasting 11ms |
EMC/Certification | CE/FCC/CCC |
Product size | 245mm (L) x 210mm (W) x 88mm (H) |

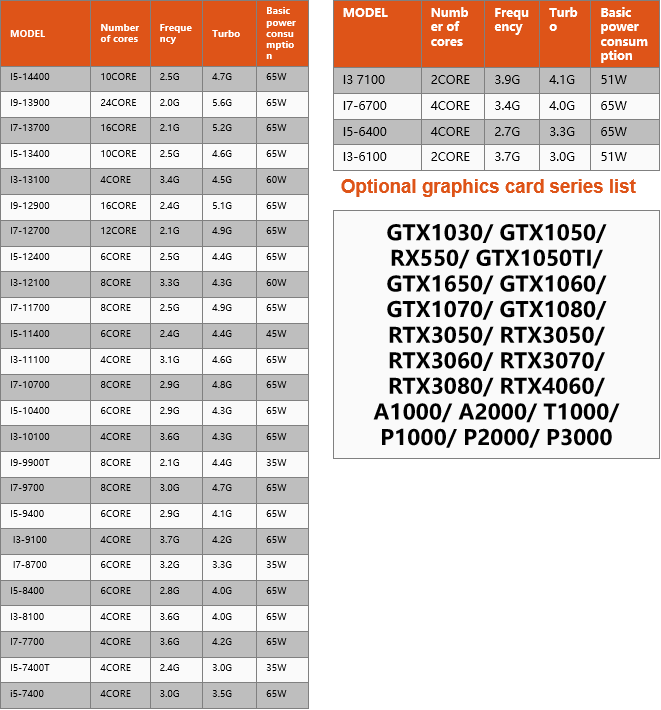

LIST OFOPTIONAL CPUS

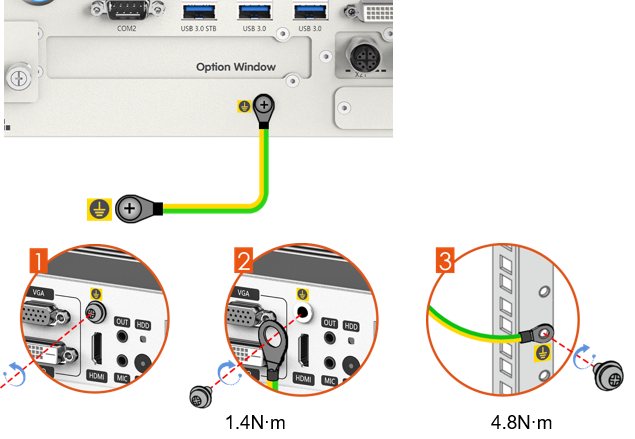

GROUNDING DIAGRAM
After the grounding cable is connected, perform the following checks:
The grounding cable is firmly and reliably connected to the grounding terminal
Use the ohmmeter of a multimeter to measure the resistance between the two ends of the grounding wire. The grounding resistance is required to be less than 5Ω。

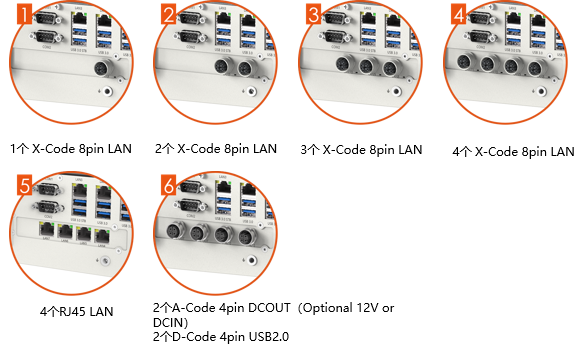

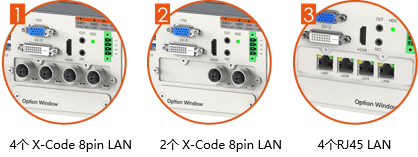

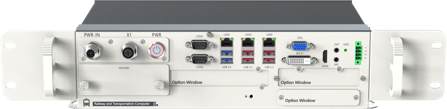

EXTENSIBLE PANEL

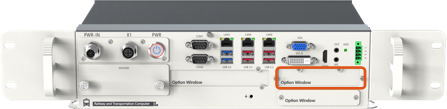

Option window For expansion panel, for optional accessories
Option window For expansion panel, for optional accessories

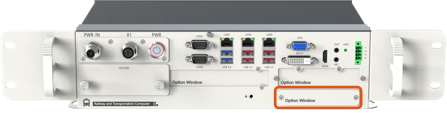

Option window For expansion panel, for optional accessories
Expand 2 DB9, such as MVB module
Replaceable power supply
Optional power input terminal (pin type)
Optional M12 4-pin A-code or S-code pin terminal, default is S-code, see the power terminal definition table for details
Optional power synchronous output terminal (hole type)
Optional M12 4-pin A-code or S-code hole terminal, default is S-code, see the power terminal definition table for details
PACKINGLIST
Serial number | name | quantity |
1 | Host | 1set |
2 | Standard rack mount ears (if selected) | 1pair |
3 | Wall mount bracket (if selected) | 1pair |
4 | 1.5 meter yellow green ground wire, M4 on the industrial computer side, M6 on the user cabinet side | 1set |
5 | Shipping inspection report | 1set |
6 | Packing List | 1set |
7 | Certificate | 1set |
ORDERINGINFORMATION
Serial number | name | illustrate |
1 | AOS-SEQ17I82S10J | Barebones |
2 | Power adapter | Multiple power options |
