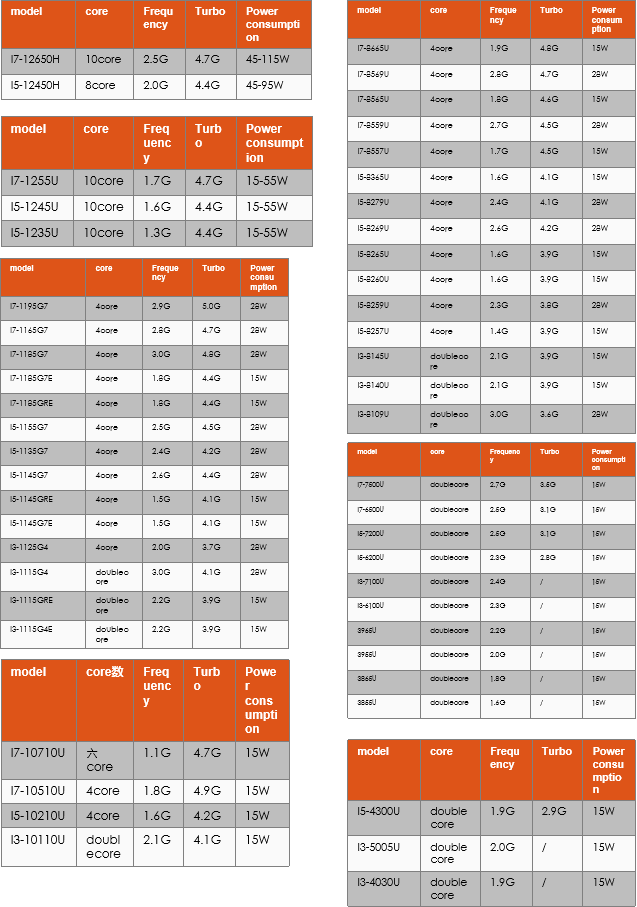

CPU

Intel® Core™ i7/i5/i3/Pentium®/Celeron®Ultra-low voltage and low power processor

chip set

Intel® SoC

BIOS

AMI BIOS

memory

1 x SO-DIMM DDR4 2666/2933/3200MHz£¬The maximum capacity is 32GB.

show

Provide HDMI external display interface, Intel® HD Graphics display core, support external

 display expansion screen, and support synchronous or asynchronous touch operation.

network

3 Gigabit network card, board interface Intel i219LM, Intel i210AT, built-in Realtek 8111H, in t

he form of socket, all support network wake-up and PXE diskless startup functions, and can

expand multiple network ports as needed.

save

1 x m.2 2280 SATA/NVMe SSD solid-state hard drive bit, with 1 x 2.5 inch hard drive bit optional.

USB

The default is 4 x USB3.0, and more USB2.0 can be extended according to requirements.

COM

Default 2 x COM, optional RS232/422/485 mode, BIOS switching, and more COM interfaces can

 be expanded as required.

Expansion slot

1 x m.2 2230 E-Key, supporting WIFI module, 1 x m.2 3052 B-Key, supporting 4G/5G module,

etc., with SIM card holder.

audio frequency

Integrated Realtek ALC897 HD digital audio decoder, providing Line-out and MIC-in interfaces,

Support external 4¦Ø 3W/8¦Ø 2W speakers.

GPIO

Optional 16-channel GPIO

watchdog

Watchdog function, support 1~255 seconds system restart.

Terminal

IO panel is reserved with 3.5mm 2 x 2pin locking terminal, which can be predefined before

leaving the factory. Remote SW and Power Led are the default.

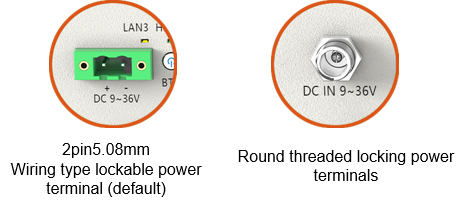

power source

DC 9-36V wide-voltage power supply, round and wired locking power terminals are available.

Fan-free cooling

The fuselage is closed, relying on aluminum profile fuselage to dissipate heat, eliminating the

 hidden trouble caused by traditional built-in cooling fan and dust entering the machine.

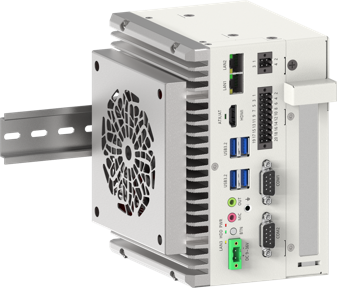

Temperature control auxiliary cooling fan

An optional external temperature-controlled auxiliary fan can be installed. When the temperature is not high, the fan runs at idle speed. When the temperature rises, the fan speed increases until it runs at full speed. It is easy to disassemble and maintain. For high-temperature and closed environments, an external temperature-controlled auxiliary cooling fan can be installed to assist in cooling, enhance cooling, improve system operation comfort, and enhance system stability.

operating system

Windows 10/11/Various versions of Linux

Work Environment

Working temperature: -20¡ãC ~60¡ãC

Environmental humidity: 0% ~95%

Vibration with SSD: 5Grms/5~500Hz/random;

Shock with SSD: 50G/half-sine/lasting 11ms;

EMC/Certification

CE/FCC

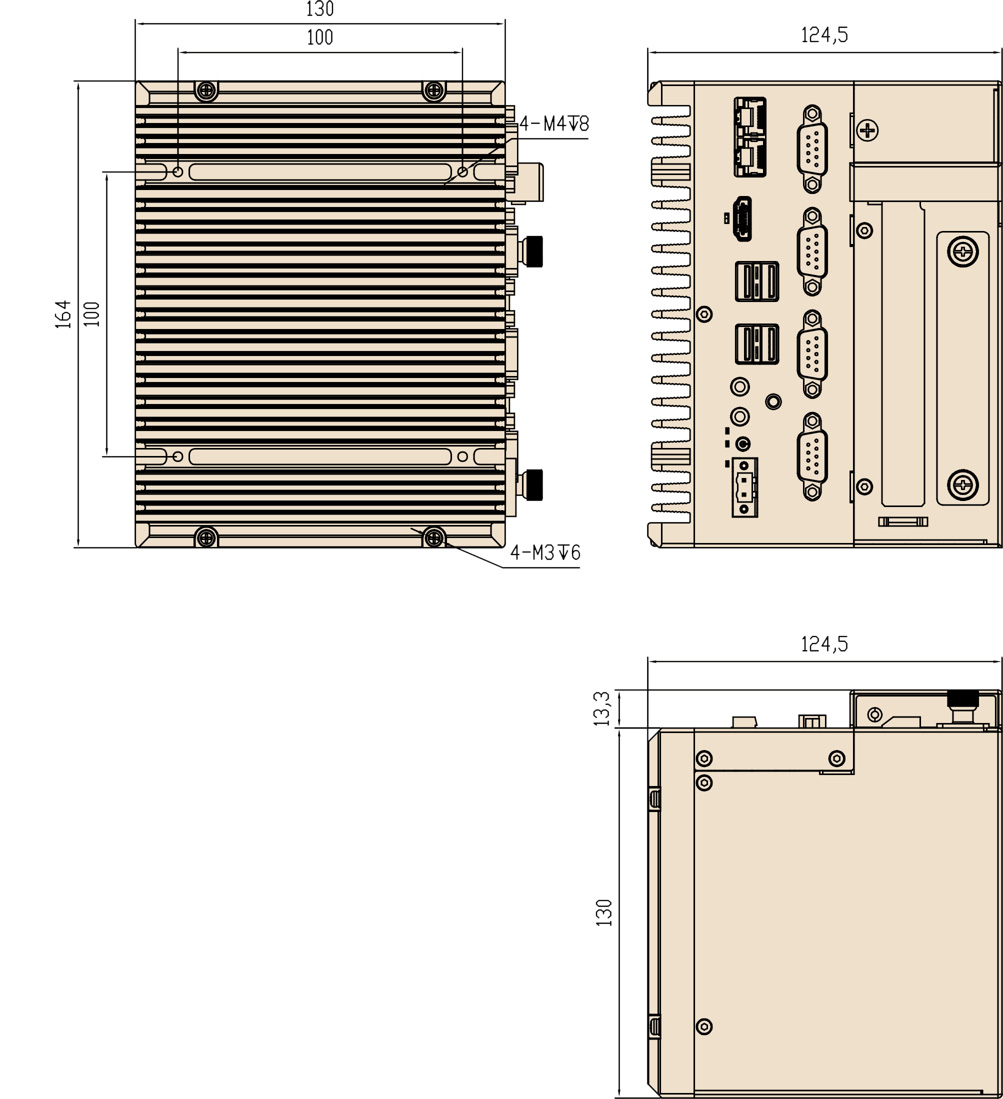

Size

164mm(L)¡Á130mm(W)x104.5mm(H)
