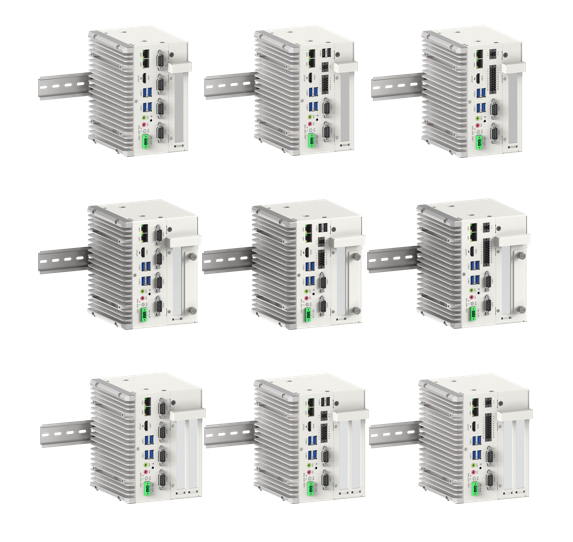

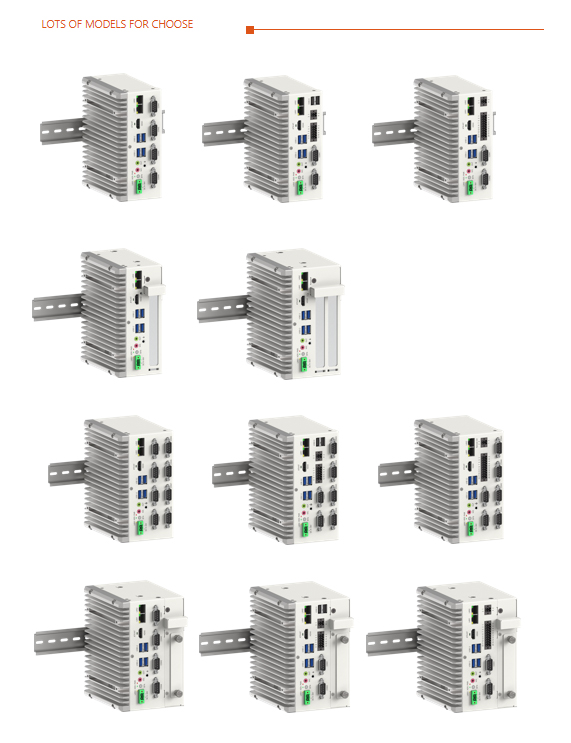

AOS-SESUF82S08J

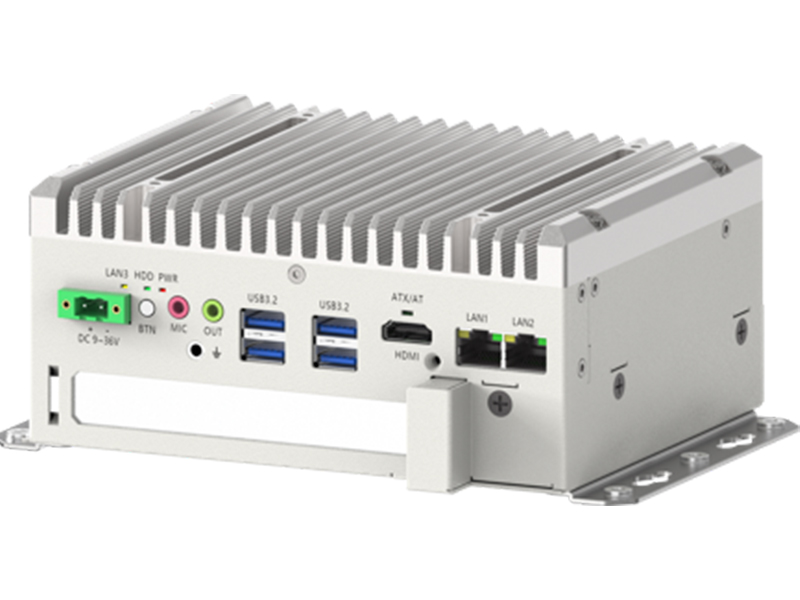

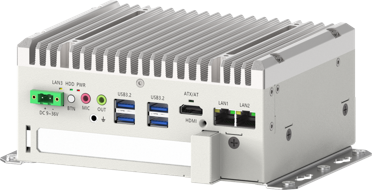

Product introduction：
Product introduction
Intel® Core™ i7/i5/i3/Pentium®/Celeron® ultra-low voltage and low power consumption processor
1 x SO-DIMM DDR4 2666/2933/3200MHz, maximum capacity 32GB
HDMI external display interface, Intel® HD Graphics display core
Three Gigabit network cards, edge interface Intel i219LM, Intel i210AT
Default 4 x USB3.0, more USB2.0 can be expanded according to needs
Optional 16-way GPIO, DC 9-36V wide voltage power supply
Windows 7/10/11/various versions of Linux
EMC/certification CE/FCC
dimension diagram
PRODUCT
SPECIFICATIONS
model | AOS-SESUF82S08J |
CPU | Intel® Core™ i7/i5/i3/Pentium®/Celeron®Ultra-low voltage and low power processor |
Chipset | Intel® SoC |
BIOS | AMI BIOS |
Memory | 1 x SO-DIMM DDR4 2666/2933/3200MHz，Maximum capacity 32GB |
show | Provides HDMI external display interface, Intel® HD Graphics display core, supports external display to expand the screen, and supports synchronous or asynchronous touch operation |
network | Three Gigabit network cards, board edge interfaces Intel i219LM, Intel i210AT, built-in Realtek 8111H, in the form of sockets, all support network wake-up and PXE diskless boot functions, and multiple network ports can be expanded as needed |
storage | 1 x m.2 2280 SATA/NVMe SSD SSD slot, optional 1 x 2.5-inch hard drive slot |
USB | Default 4 x USB3.0, more USB2.0 can be expanded as needed |
COM | Default 2 x COM, optional RS232/422/485 mode, BIOS switch, can expand more COM ports according to needs |
Expansion slots | 1 x m.2 2230 E-Key，Support WIFI module, 1 x m.2 3052 B-Key, support 4G/5G module, etc., with SIM card holder |
Audio | Integrated Realtek ALC897 HD digital audio decoder, provides Line-out, MIC-in interface, supports external 4Ω3W/8Ω2W speakers |
GPIO | Optional 16-channel GPIO |
Watchdog | Watchdog Function, supports 1~255 seconds system restart |
Terminal Blocks | The IO panel has 3.5mm 2 x 2pin locking terminal blocks, which can be predefined before leaving the factory. The default settings are Remote SW and Power Led |
Power interface | DC 9-36V Wide voltage power supply, with two types of locking power terminals: circular and wiring type. |
Fanless cooling | The machine body is closed and relies on the aluminum profile for heat dissipation, eliminating the hidden dangers of malfunction caused by traditional built-in cooling fans and dust entering the machine. |
Temperature control auxiliary cooling fan | An optional external temperature-controlled auxiliary fan can be installed. When the temperature is not high, the fan runs at idle speed. When the temperature rises, the fan speed increases until it runs at full speed. It is easy to disassemble and maintain. For high-temperature and closed environments, an external temperature-controlled auxiliary cooling fan can be installed to assist in cooling, enhance cooling, improve system operation comfort, and enhance system stability. |
operating system | Windows 7/10/11/Various versions of Linux |
Work Environment | Working temperature: -20°C ~60°C Environmental humidity: 0% ~95% Vibration with SSD: 5Grms/5~500Hz/random; Shock with SSD: 50G/half-sine/lasting 11ms; |
EMC/Certification | CE/FCC |
size | 164mm(L)×130mm(W)x75mm(H) |
LIST OF
OPTIONAL CPUS

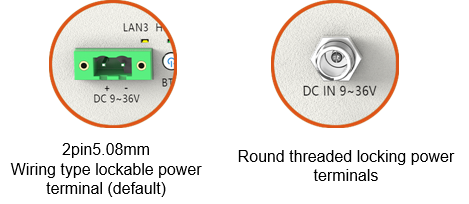

OPTIONAL POWER
TERMINAL
OPTIONAL POWER
TERMINAL

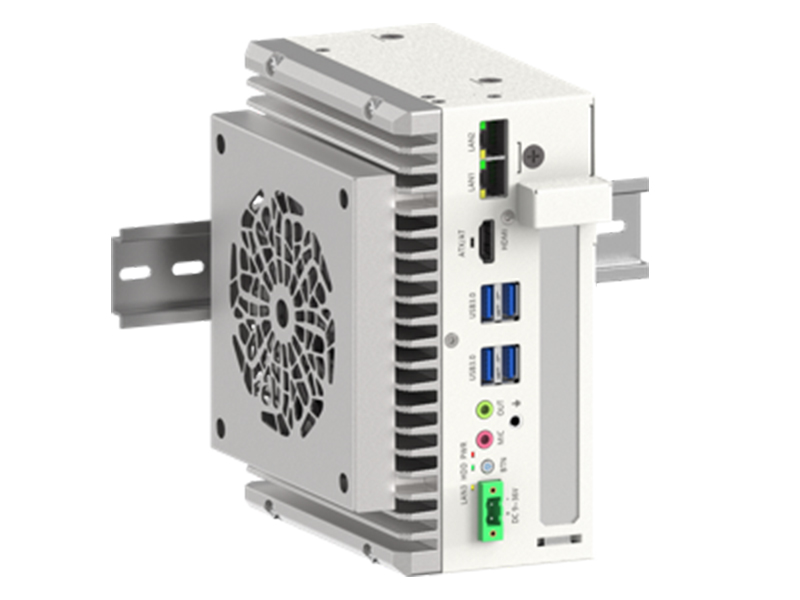

Optional horizontal
bracket

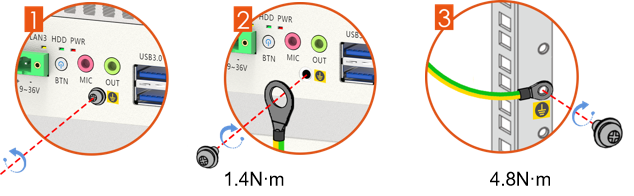

GROUNDING DIAGRAM
After the grounding cable is connected, perform the following checks:
The grounding cable is firmly and reliably connected to the grounding terminal
Use the ohmmeter of a multimeter to measure the resistance between the two ends of the grounding wire.
The grounding resistance is required to be less than 5Ω。
