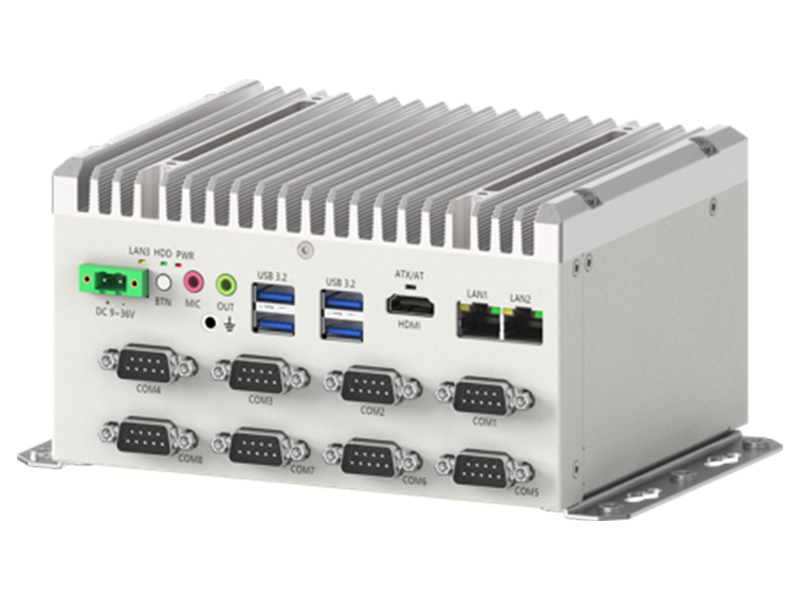

AOS-SEAUJ82S05J

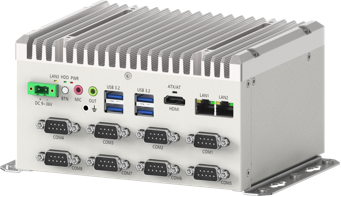

Product introduction：
Product introduction
Intel® Core™U 3~13th i7/i5/i3 ultra-low voltage low power processor
8G 1 x SO-DIMM DDR4 2666/2933/3200MHz, maximum capacity 32GB
Provide HDMI external display interface, Intel® HD Graphics display core
Three Gigabit network card, board edge interface Intel i219LM, Intel i210AT
Default 4 x USB3.0, can expand more USB2.0 according to needs
Default 2 x COM, optional RS232/422/485 mode, BIOS switch
IO panel reserved 3.5mm 2 x 2pin locking terminal
DC 9-36V wide voltage power supply, Windows 7/10/11/various versions of Linux
dimension diagram
PRODUCT
SPECIFICATIONS
name | AOS-SEAUJ82S05J |
CPU | Intel® Core™ i7/i5/i3/Pentium®/Celeron® Ultra-low voltage and low power processor |
Chipset | Intel® SoC |
BIOS | AMI BIOS |
Memory | 8G 1 x SO-DIMM DDR4 2666/2933/3200MHz，Maximum capacity 32GB |
show | Provides HDMI external display interface, Intel® HD Graphics display core, supports external display to expand the screen, and supports synchronous or asynchronous touch operation |
network | Three Gigabit network cards, board edge interfaces Intel i219LM, Intel i210AT, built-in Realtek 8111H, in the form of sockets, all support network wake-up and PXE diskless boot functions, and multiple network ports can be expanded as needed |
storage | 256G 1 x m.2 2280 SATA/NVMe SSD SSD slot, optional 1 x 2.5-inch hard drive slot |
USB | Default 4 x USB3.0, more USB2.0 can be expanded as needed |
COM | Default 2 x COM, optional RS232/422/485 mode, BIOS switch, can expand more COM ports according to needs |
Expansion slots | 1 x m.2 2230 E-Key，Support WIFI module, 1 x m.2 3052 B-Key, support 4G/5G module, etc., with SIM card holder |
Audio | Integrated Realtek ALC897 HD digital audio decoder, provides Line-out, MIC-in interface, supports external 4Ω3W/8Ω2W speakers |
GPIO | Optional 16-channel GPIO |
Watchdog | Watchdog Function, supports 1~255 seconds system restart |
Terminal Blocks | The IO panel has 3.5mm 2 x 2pin locking terminal blocks, which can be predefined before leaving the factory. The default settings are Remote SW and Power Led |
Power interface | DC 9-36V Wide voltage power supply, with two types of locking power terminals: circular and wiring type. |
Fanless cooling | The machine body is closed and relies on the aluminum profile for heat dissipation, eliminating the hidden dangers of malfunction caused by traditional built-in cooling fans and dust entering the machine. |
Temperature contro l auxiliary cooling fan | An optional external temperature-controlled auxiliary fan can be installed. When the temperature is not high, the fan runs at idle speed. When the temperature rises, the fan speed increases until it runs at full speed.It is easy to disassemble and maintain. For high-temperature and closed environments, an external temperature controlled auxiliary cooling fan can be installed to assist in cooling, enhance cooling, improve system operation comfort, and enhance system stability. |
operating system | Windows 7/10/11/Various versions of Linux |
Work Environment | Working temperature: -20°C ~60°C Environmental humidity: 0% ~95% Vibration with SSD: 5Grms/5~500Hz/random; Shock with SSD: 50G/half-sine/lasting 11ms; |
EMC/Certification | CE/FCC |
size | 164mm(L)×130mm(W)x90mm(H) |

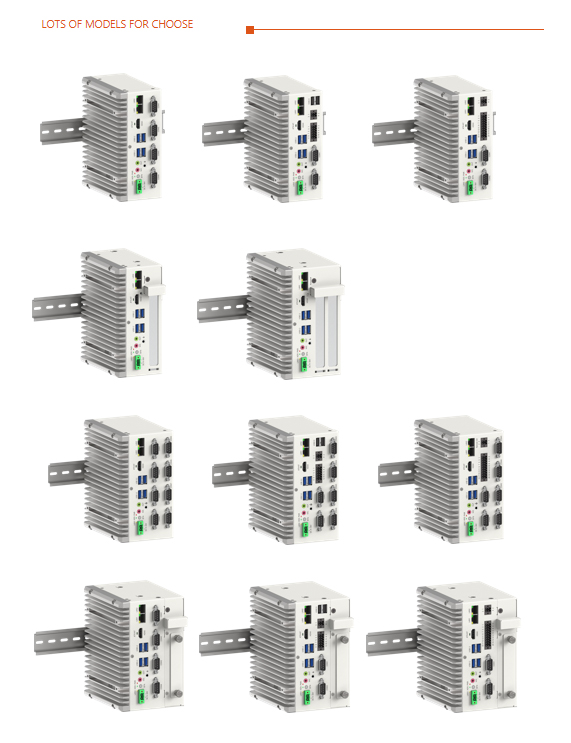

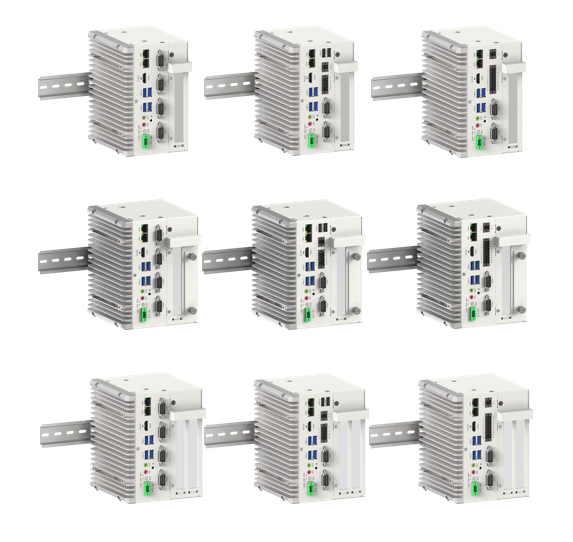

LIST OF

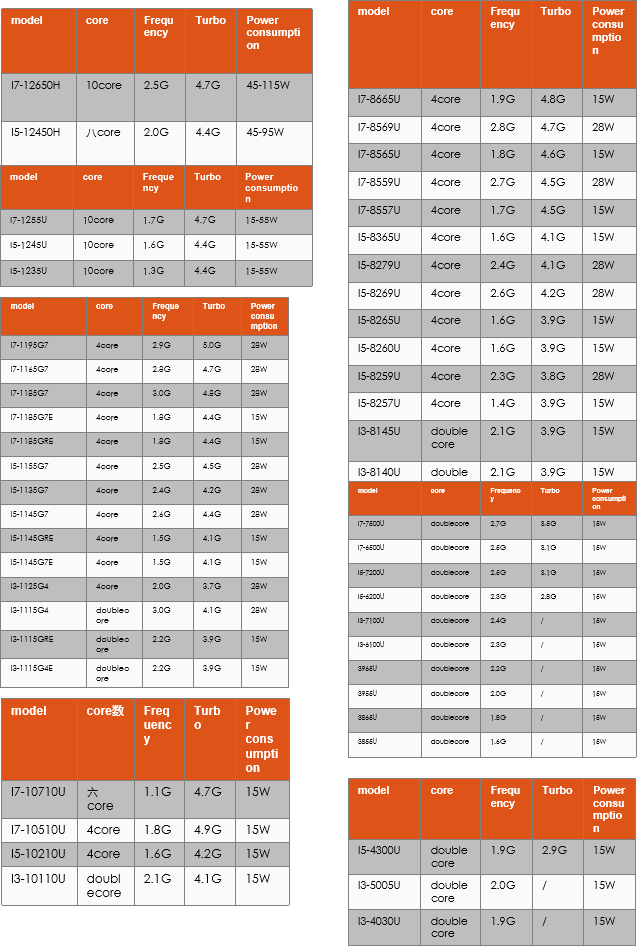

OPTIONAL CPUS

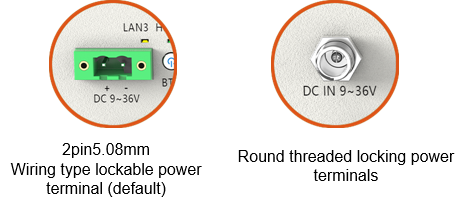

OPTIONAL POWER
TERMINAL
OPTIONAL POWER
TERMINAL

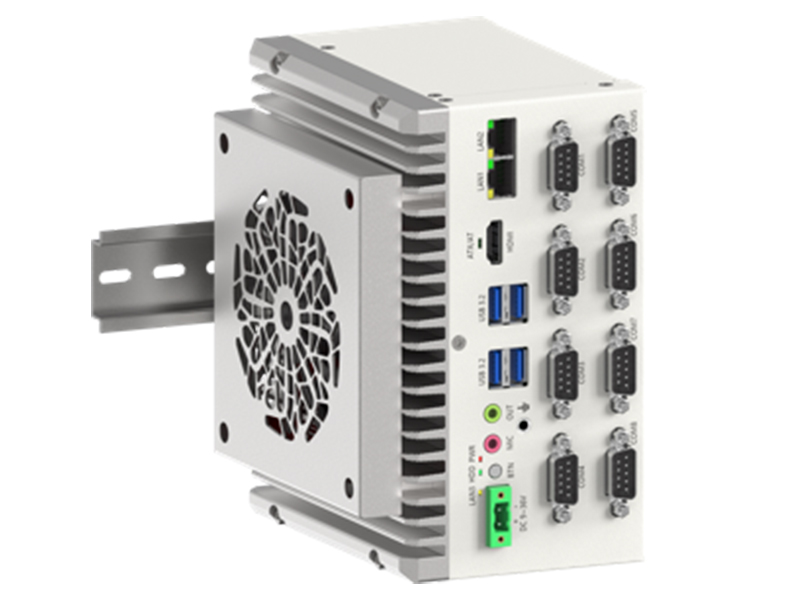

Optional horizontal
bracket

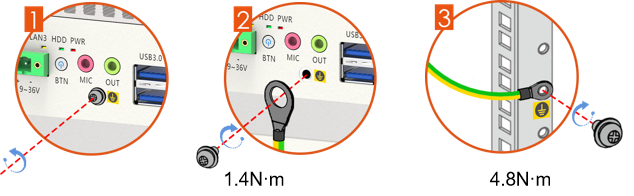

GROUNDING DIAGRAM
After the grounding cable is connected, perform the following checks:
The grounding cable is firmly and reliably connected to the grounding terminal
Use the ohmmeter of a multimeter to measure the resistance between the two ends of the grounding wire.
The grounding resistance is required to be less than 5Ω。
PACKING
LIST
Serial number | name | quantity |
1 | Host | 1set |
2 | Mounting ears (choose 1 from 2) | 1set |
3 | Power adapter (if selected) | 1set |
4 | Three-hole 1.5M national standard power cord (if selected) | 1set |
5 | 1.5m yellow-green ground wire M3 on the industrial computer side, M6 on the user cabinet side | 1set |
6 | Shipping inspection report | 1set |
7 | Packing List | 1set |
8 | Certificate | 1set |
ORDERING
INFORMATION
Serial number | name | illustrate |
1 | AOS-SEAUJ82S05J | Barebones |
2 | Power adapter | Default 12V5A, multiple power options |
3 | Wall mounting bracket, with 4 M4*6 round head screws | 1pair |
4 | DIN rail mounting ears | 1set |
