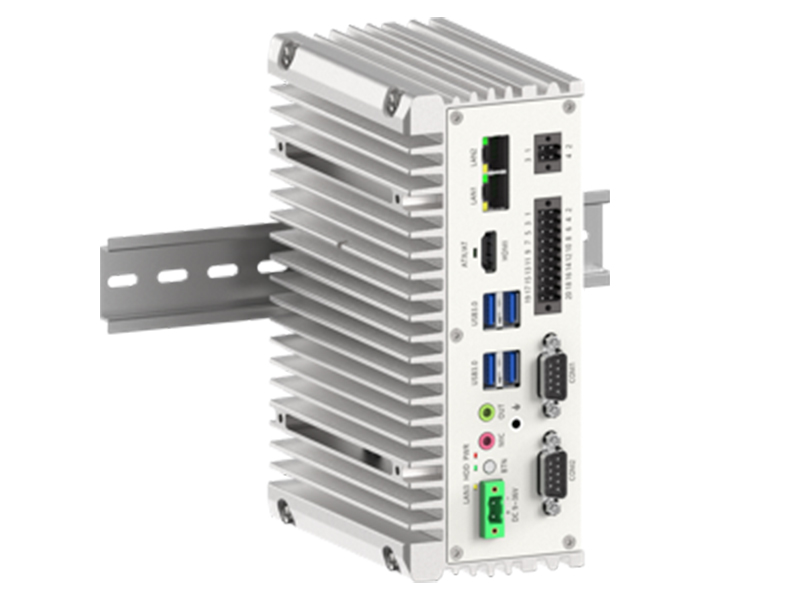

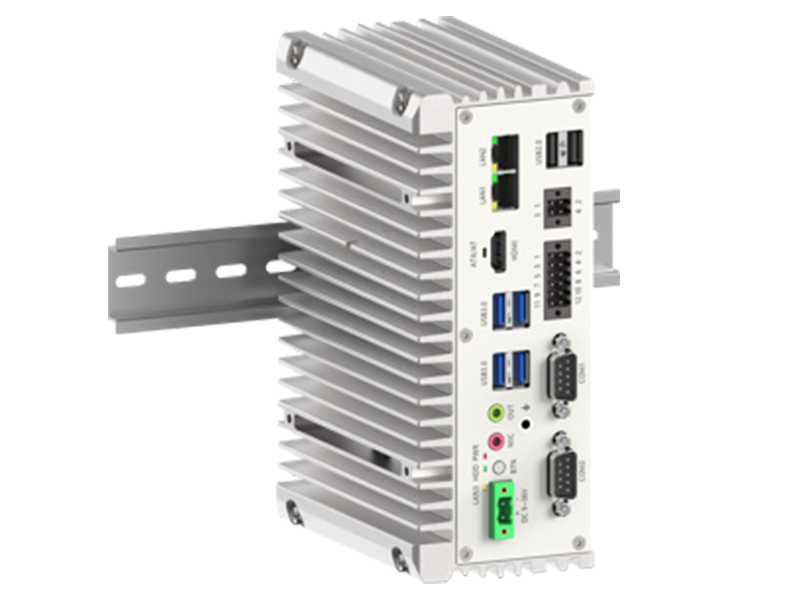

AOS-SEAUJ81S02J
Product introduction：
Product introduction
Intel® Core™U 3~13th generation i7/i5/i3/Pentium®/Celeron® ultra-low voltage and low power consumption processor
1 x SO-DIMM DDR4 2666/2933/3200MHz, maximum capacity 32GB
4 x USB3.0 by default, more USB2.0 can be expanded as needed
2 x CAN optional, 16 GPIO optional
IO panel reserved 3.5mm 2 x 2pin locking terminal block, can be predefined before leaving the factory
DC 9-36V wide voltage power supply

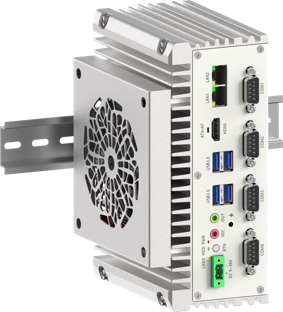

Enclosed body, heat dissipation relies on aluminum profile body
dimension diagram

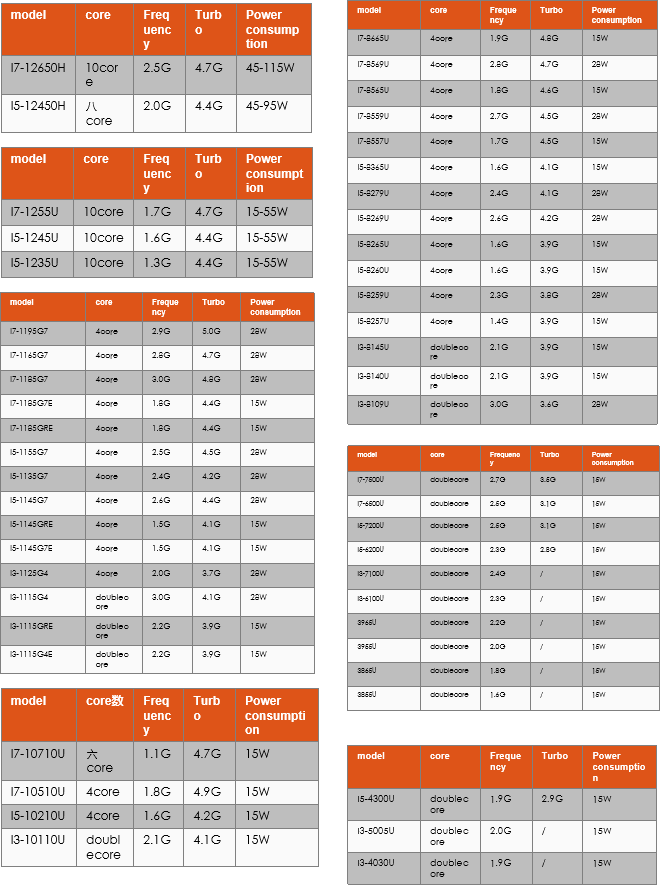

LIST OF
OPTIONAL CPUS

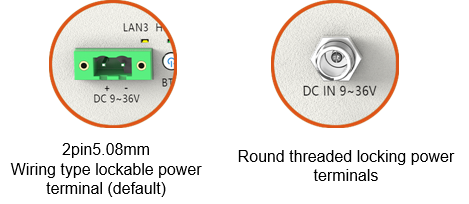

OPTIONAL POWER
TERMINAL
OPTIONAL POWER
TERMINAL

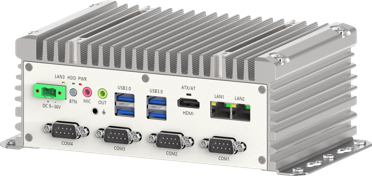

Optional horizontal
bracket

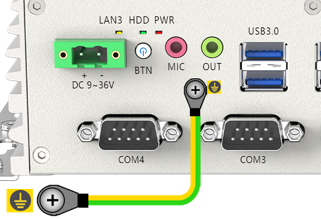

GROUNDING DIAGRAM

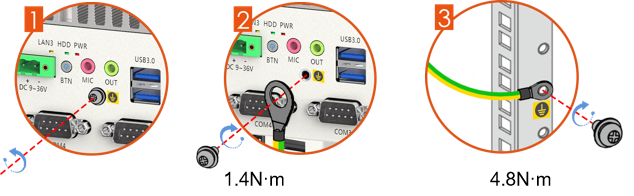

After the grounding cable is connected, perform the following checks:
The grounding cable is firmly and reliably connected to the grounding terminal
Use the ohmmeter of a multimeter to measure the resistance between the two ends of the grounding wire.
The grounding resistance is required to be less than 5Ω。

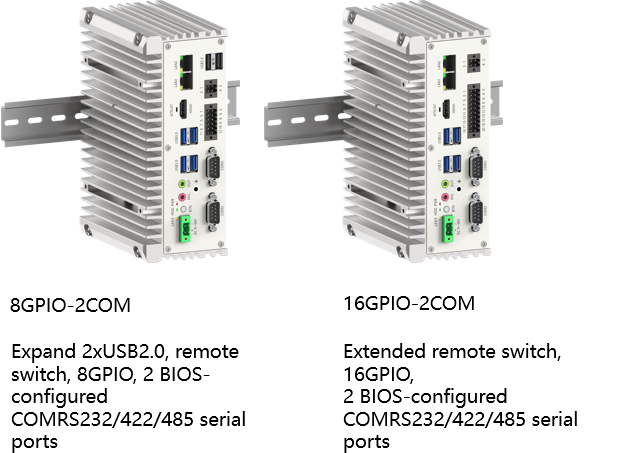

LOTS OF models FOR choose
