AOS-SEN9582S10J

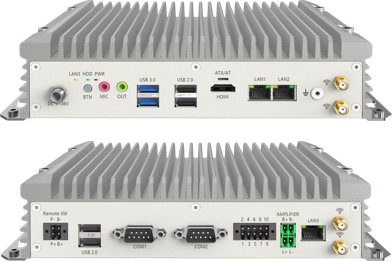

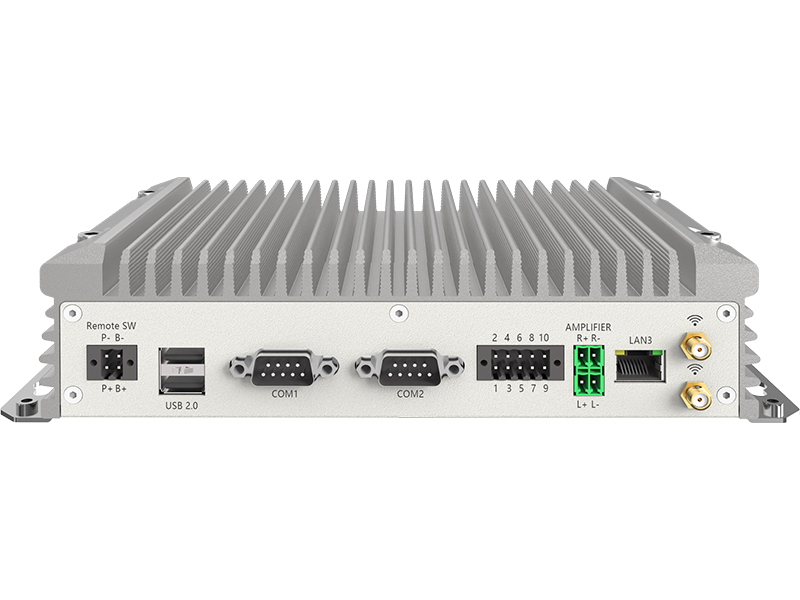

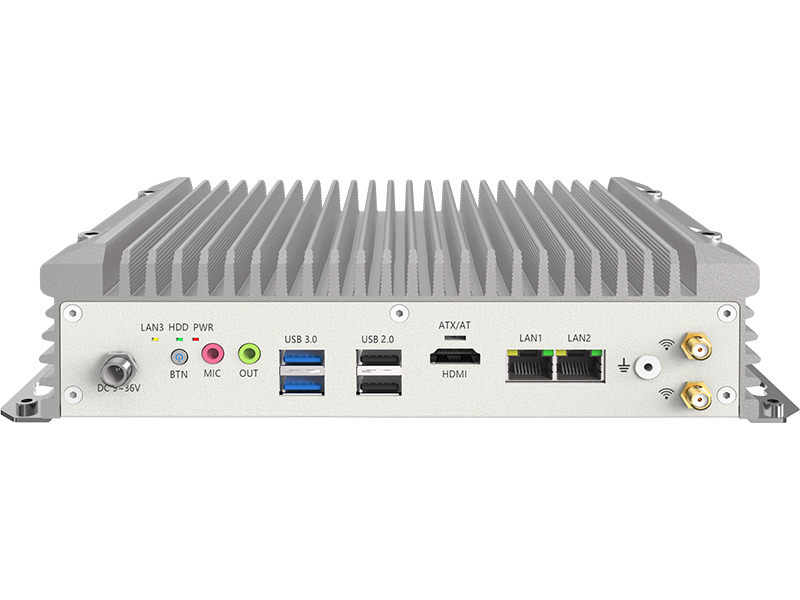

Product introduction：
Product introduction
Intel® ATOM J6412/N97/N95/N100 ultra-low voltage low power processor
1 x SO-DIMM DDR4 2666/2933/3200MHz, maximum capacity 32GB
Provide HDMI external display interface, Intel®
Triple Gigabit network card, board edge network port Intel i210AT, Realtek 8111H
Default 2 x USB3.2, 2 x USB2.0, more USB2.0 can be expanded according to needs
Default 2 x COM, optional RS232/422/485 mode
Optional 16-way GPIO
Windows 10/11/various versions of Linux

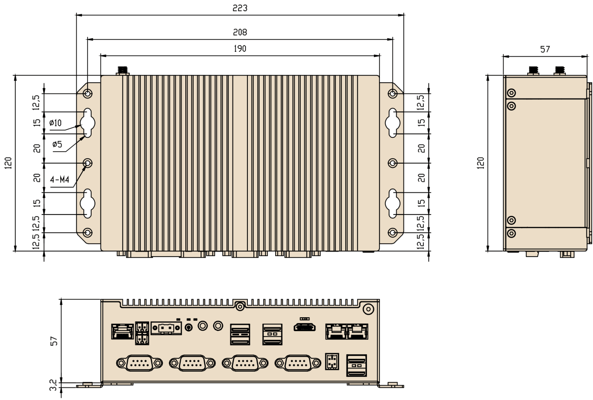

dimension diagram
PRODUCT
SPECIFICATIONS
model | AOS-SEN9582S10J |
CPU | IIntel® ATOM J6412/N97/N95/N100 Ultra-low voltage and low power processor |
Chipset | Intel® Elkhart Lake J6412 SoC |
BIOS | AMI BIOS |
Memory | 1 x SO-DIMM DDR4 2666/2933/3200MHz，Maximum capacity32GB |
show | Provides HDMI external display interface, Intel® HD Graphics display core, supports external display to expand the screen, and supports synchronous or asynchronous touch operation |
network | Three Gigabit network cards, edge network ports Intel i210AT, Realtek 8111H, and built-in network port Realtek 8111H, in the form of a socket, both support network wake-up and PXE diskless boot functions, and multiple network ports can be expanded as needed |
storage | 1 x m.2 2280 SATA/NVMe SSDSSD slot, optional 1 x 2.5-inch hard drive slot |
USB | Default 2 x USB3.2, 2 x USB2.0, more USB2.0 can be expanded as needed |
COM | Default 2 x COM, optional RS232/422/485 mode, BIOS switch, can expand more COM ports according to needs |
Expansion slots | 1 x m.2 2230 E-Key，Support WIFI module, 1 x m.2 3052 B-Key, support 4G/5G module, etc., with SIM card holder |
Audio | Integrated Realtek ALC897 HD digital audio decoder, provides Line-out, MIC-in interface, supports external 4Ω3W/8Ω2W speakers |
GPIO | Optional 16 channels GPIO |
Watchdog | WatchdogFunction, supports 1~255 seconds system restart |
Terminal Blocks | IOThe panel has 3.5mm 2 x 2pin locking terminal blocks, which can be predefined before leaving the factory. The default settings are Remote SW and Power Led |

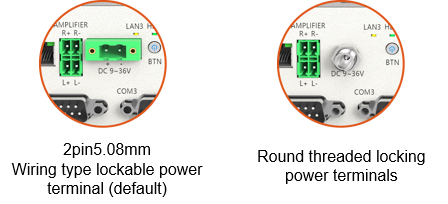

Power interface | DC 9-36VWide voltage power supply, with two types of locking power terminals: circular and wiring type. |
Fanless cooling | The machine body is closed and relies on the aluminum profile for heat dissipation, eliminating the hidden dangers of malfunction caused by traditional built-in cooling fans and dust entering the machine. |
operating system | Windows 10/11/Various versions of Linux |
Work Environment | Working temperature: -20°C ~60°C Environmental humidity: 0% ~95% Vibration with SSD: 5Grms/5~500Hz/random; Shock with SSD: 50G/half-sine/lasting 11ms; |
EMC/Certification | CE/FCC |
OPTIONAL POWER
TERMINAL

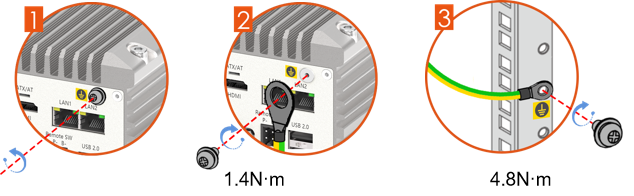

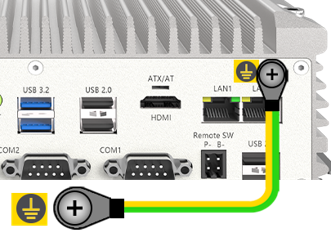

GROUNDING DIAGRAM
After the grounding cable is connected, do the following checks：
The grounding cable and grounding terminal are firmly and reliably connected
Use the ohmmeter of a multimeter to measure the resistance between the two ends of the ground wire
. The ground resistance should be less than5Ω。
TERMINAL

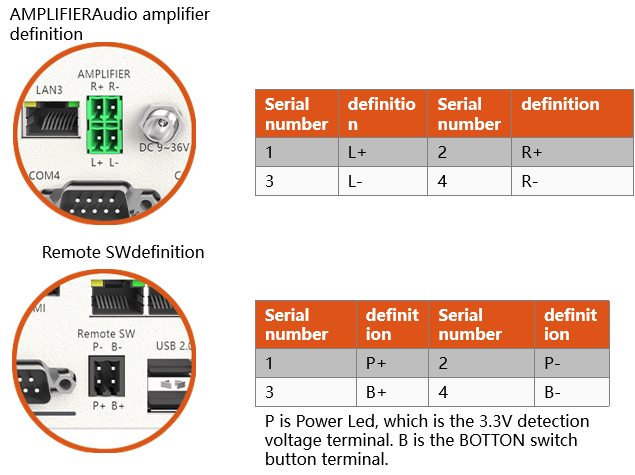

DEFINITION

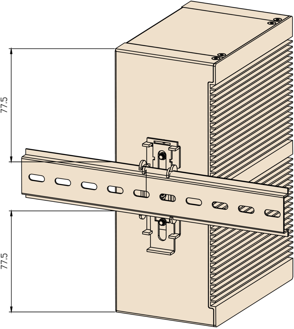

DIN-Rail Mounting
PACKING
LIST
Serial number | name | quantity |
1 | Host | 1 unit |
2 | Mounting ears (if selected) | 1set |
3 | Power adapter (if selected) | 1 unit |
4 | Three-hole 1.5M national standard power cord (if selected) | 1 unit |
5 | 1.5m yellow-green ground wire M3 on the industrial computer side, M6 on the user cabinet side | 1 unit |
6 | Shipping inspection report | 1 unit |
7 | Packing List | 1 unit |
8 | Certificate | 1 unit |
ORDERING
INFORMATION
Serial number | name | illustrate |
1 | AOS-SEN9582S10J | Barebones |
2 | Power adapter | Default 12V5A, multiple power options |
3 | 1x2pin 3.5mmAmplifier terminal plug | 2set |
4 | 2x2pin 3.5mm Signal terminal plug | 1set |
5 | Horizontal mounting ears, with 4 M4*6 round head screws | 1 pair |
6 | Wall mount bracket | 1set |
7 | DINGuide rail mounting ears | 1set |
LOTS OF models FOR choose
Single-side output interface double-layer expansion model
