AOS-SEN9582SH07J
Product introduction：
Product introduction
Intel® ATOM J6412/N97/N95/N100 ultra-low voltage and low power processor
1 x SO-DIMM DDR4, maximum capacity 32GB
HDMI external display interface
Optional 6 x COM, COM1/2 supports RS232/422/485 mode, BIOS switch
Optional 3.5mm 2 x 2pin locking terminal block
Optional 16-way GPIO
Windows 10/11/various versions of Linux
dimension diagram

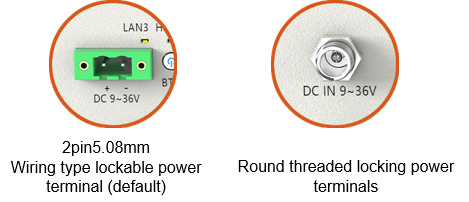

OPTIONAL POWER
TERMINAL

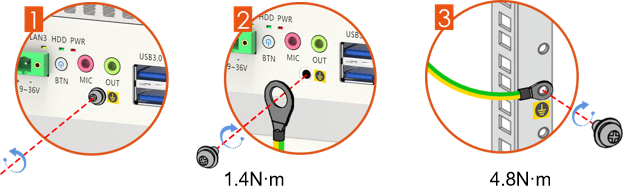

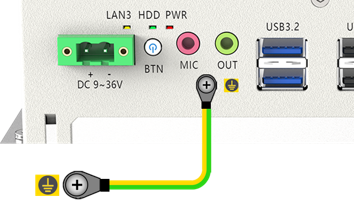

GROUNDING DIAGRAM
After the grounding cable is connected, perform the following checks:
The grounding cable is firmly and reliably connected to the grounding terminal
Use the ohmmeter of a multimeter to measure the resistance between the two ends of the grounding wire.
The grounding resistance is required to be less than5Ω。
PACKING
LIST
Serial number | Name | quantity |
1 | Host | 1set |
2 | Mounting ears (choose 1 from 2) | 1set |
3 | Power adapter (if selected) | 1set |
4 | Three-hole 1.5M national standard power cord (if selected) | 1set |
5 | 1.5m yellow-green ground wire M3 on the industrial computer side, M6 on the user cabinet side | 1set |
6 | Shipping inspection report | 1set |
7 | Packing List | 1set |
8 | Certificate | 1set |
INFORMATION
Serial number | name | illustrate |
1 | AOS-SEN9582SH07J | Barebones |
2 | Power adapter | Default 12V5A, multiple power options |
3 | Wall mounting bracket, with 4 M4*6 round head screws | 1 pair |
4 | DIN Guide rail mounting ears | 1set |
