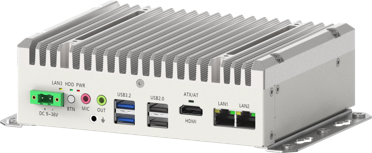

AOS-SEN9742S06J
Product introduction：
Product introduction
Intel® ATOM J6412/N97/N95/N10 0 ultra-low voltage low power processor
1 x SO-DIMM DDR4 2666/2933/3200MHz, maximum capacity 32GB
1 x m.2 2280 SATA/NVMe SSD solid state drive slot
Default 2 x USB3.2, 2 x USB2.0, more USB2.0 can be expanded according to needs
Optional 6 x COM, COM1/2 supports RS232/422/485 mode
Windows 10/11/various versions of Linux
dimension diagram
PRODUCT
SPECIFICATIONS
model | AOS-SEN9742S06J |
CPU | Intel® ATOM J6412/N97/N95/N10 0 Ultra-low voltage and low power processor |
Chipset | Intel® Elkhart Lake J6412 SoC |
BIOS | AMI BIOS |
Memory | 1 x SO-DIMM DDR4 2666/2933/3200MHz，Maximum capacity32GB |
show | Provides HDMI external display interface, Intel® HD Graphics display core, supports external display to expand the screen, and supports synchronous or asynchronous touch operation |
network | Three Gigabit network cards, edge network ports Intel i210AT, Realtek 8111H, and built-in network port Realtek 8111H, in the form of a socket, both support network wake-up and PXE diskless boot functions, and multiple network ports can be expanded as needed |
storage | 1 x m.2 2280 SATA/NVMe SSDSSD slot, optional 1 x 2.5-inch hard drive slot |
USB | Default 2 x USB3.2, 2 x USB2.0, more can be expanded as needed USB2.0 |
COM | Optional 6 x COM, COM1/2 supports RS232/422/485 mode, BIOS switch, more COM ports can be expanded as needed |
CAN | Optional 2 x CAN |
Expansion slots | 1 x m.2 2230 E-Key，Support WIFI module, 1 x m.2 3052 B-Key, support 4G/5G module, etc., with SIM card holder, optional 1 x PCIEx1 slot |
Audio | Integrated Realtek ALC897 HD digital audio decoder, provides Line-out, MIC-in interface, supports external 4Ω3W/8Ω2W speakers |
GPIO | Optional 16 channels GPIO |
Watchdog | Watchdog Function, supports 1~255 seconds system restart |
Terminal Blocks | Optional 3.5mm 2 x 2pin locking terminal block, pre-defined before delivery, default Remote SW and Power Led |
Power interface | DC 9-36VWide voltage power supply, with two types of locking power terminals: circular and wiring type. |
Fanless cooling | The machine body is closed and relies on the aluminum profile for heat dissipation, eliminating the hidden dangers of malfunction caused by traditional built-in cooling fans and dust entering the machine. |
Temperature control auxiliary cooling fan | An optional external temperature-controlled auxiliary fan can be installed. When the temperature is not high, the fan runs at idle speed. When the temperature rises, the fan speed increases until it runs at full speed. It is easy to disassemble and maintain. For high-temperature and closed environments, an external temperature-controlled auxiliary cooling fan can be installed to assist in cooling, enhance cooling, improve system operation comfort, and enhance system stability. |
operating system | Windows 10/11/Various versions of Linux |
Work Environment | Working temperature: -20°C ~60°C Environmental humidity: 0% ~95% Vibration with SSD: 5Grms/5~500Hz/random; Shock with SSD: 50G/half-sine/lasting 11ms; |
EMC/Certification | CE/FCC |

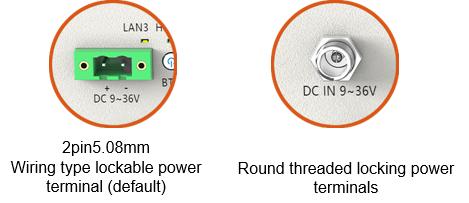

OPTIONAL POWER
TERMINAL
GROUNDING DIAGRAM
After the grounding cable is connected, perform the following checks:
The grounding cable is firmly and reliably connected to the grounding terminal
Use the ohmmeter of a multimeter to measure the resistance between the two ends of the grounding wire.
The grounding resistance is required to be less than 5Ω。
PACKING
LIST
Serial number | name | quantity |
1 | Host | 1set |
2 | Mounting ears (choose 1 from 2) | 1set |
3 | Power adapter (if selected) | 1set |
4 | Three-hole 1.5M national standard power cord (if selected) | 1set |
5 | 1.5m yellow-green ground wire M3 on the industrial computer side, M6 on the user cabinet side | 1set |
6 | Shipping inspection report | 1set |
7 | Packing List | 1set |
8 | Certificate | 1set |
ORDERING
INFORMATION
Serial number | name | illustrate |
1 | AOS-SEN9742S06J | Barebones |
2 | Power adapter | Default 12V5A, multiple power options |
3 | Wall mounting bracket, with 4 M4*6 round head screws | 1 pair |
4 | DINGuide rail mounting ears | 1set |
