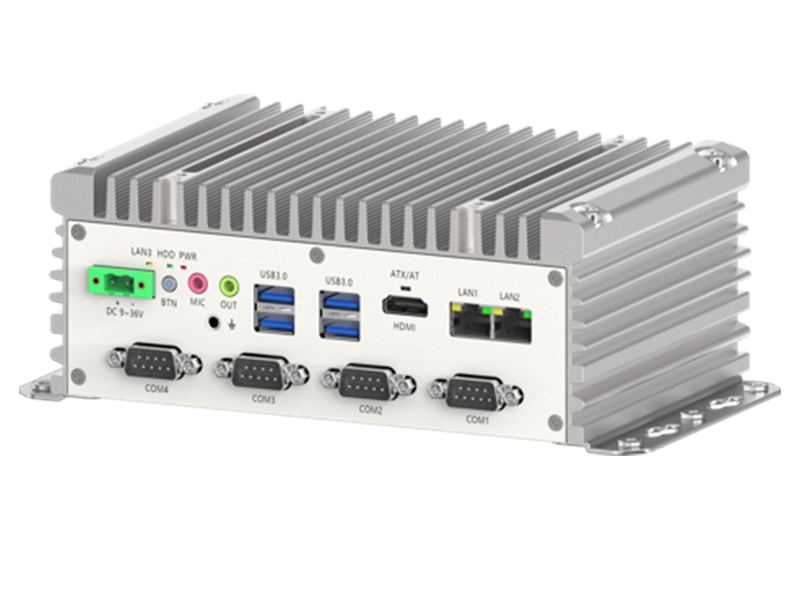

AOS-SEJ6481S02J

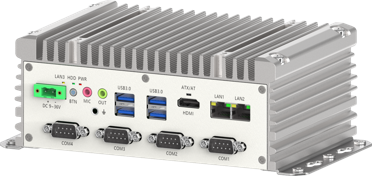

Product introduction：
Product introduction
1.Intel® ATOM J6412/N97/N95/N100 ultra-low voltage and low power consumption processor
2.DDR4 2666/2933/3200MHz, maximum capacity 32GB
3.Default 4 x USB3.0, more USB2.0 can be expanded according to needs
4.Default 2 x COM, optional RS232/422/485 mode
5.Optional 2 x CAN, optional 16-way GPIO
6.DC 9-36V wide voltage power supply

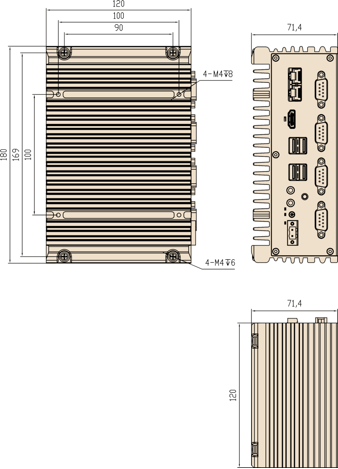

dimension diagram
PRODUCT
SPECIFICATIONS
MODEL | AOS-SEJ6481S02J |
CPU | Intel® ATOM J6412/N97/N95/N100 Ultra-low voltage and low power processor |
Chipset | Intel® SoC |
BIOS | AMI BIOS |
Memory | 1 x SO-DIMM DDR4 2666/2933/3200MHz，Maximum capacity32GB |
illustrate | Provides HDMI external display interface, Intel® HD Graphics display core, supports external display to expand the screen, and supports synchronous or asynchronous touch operation |
network | Three Gigabit network cards, Intel i219LM and Intel i210AT on the edge of the board, built-in Realtek 8111H, in the form of a socket, both support network wake-up and PXE diskless boot functions, and multiple network ports can be expanded as needed |
storage | 1 x m.2 2280 SATA/NVMe SSDSSD slot, optional 1 x 2.5-inch hard drive slot |
USB | Default 4 x USB3.0, more USB2.0 can be expanded as needed |
COM | Default 2 x COM, optional RS232/422/485 mode, BIOS switch, can expand more COM ports according to needs |
CAN | Optional2 x CAN |
Expansion slots | 1 x m.2 2230 E-Key，Support WIFI module, 1 x m.2 3052 B-Key, support 4G/5G module, etc., with SIM card holder |
Audio | Integrated Realtek ALC897 HD digital audio decoder, provides Line-out, MIC-in interface, supports external 4Ω3W/8Ω2W speakers |
GPIO | Optional 16 channels GPIO |
Watchdog | Watchdog Function, supports 1~255 seconds system restart |
Terminal Blocks | The IO panel has 3.5mm 2 x 2pin locking terminal blocks, which can be predefined before leaving the factory. The default settings are Remote SW and Power Led |
Power interface | DC 9-36VWide voltage power supply, with two types of locking power terminals: circular and wiring type. |
Fanless cooling | The machine body is closed and relies on the aluminum profile for heat dissipation, eliminating the hidden dangers of malfunction caused by traditional built-in cooling fans and dust entering the machine. |
Temperature control auxiliary cooling fan | An optional external temperature-controlled auxiliary fan can be installed. When the temperature is not high, the fan runs at idle speed. When the temperature rises, the fan speed increases until it runs at full speed. It is easy to disassemble and maintain. For high-temperature and closed environments, an external temperature-controlled auxiliary cooling fan can be installed to assist in cooling, enhance cooling, improve system operation comfort, and enhance system stability. |
operating system | Windows 7/10/11/Various versions Linux |
Work Environment | Operating temperature：-20°C ~60°C Ambient humidity：0% ~95% vibrationSSD：5Grms/5~500Hz/random； ImpactSSD：50G/Half sine/continuous11ms； |
EMC/Certification | CE/FCC |

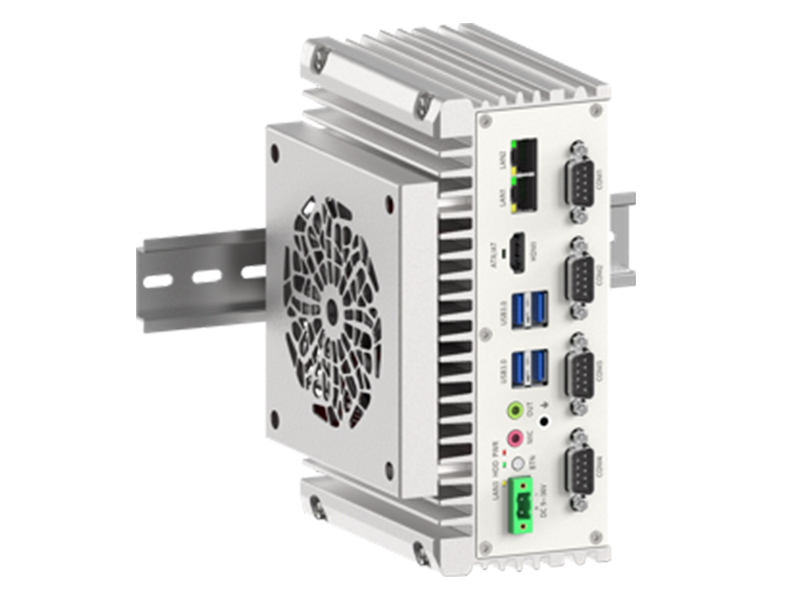

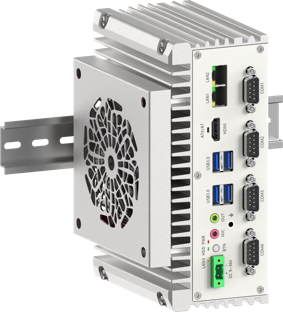

Install temperature-controlled auxiliary cooling fan

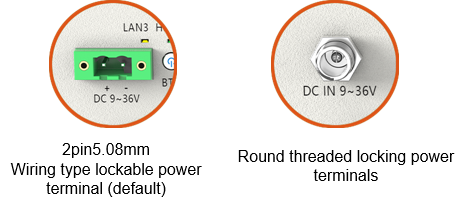

OPTIONAL POWER
TERMINAL
Optional horizontal mounting ears

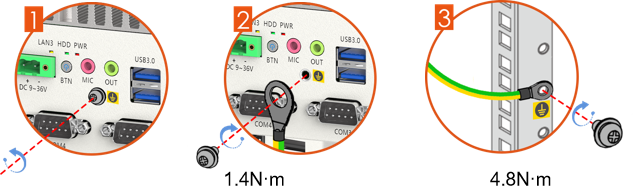

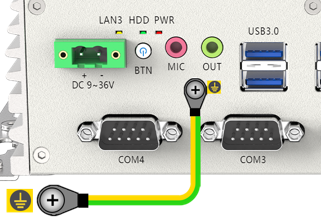

GROUNDING DIAGRAM
After the grounding cable is connected, perform the following checks:
The grounding cable is firmly and reliably connected to the grounding terminal
Use the ohm range of a multimeter to measure the resistance between the two ends of
the grounding wire. The grounding resistance is required to be less than 5Ω.
packing list
number | name | quantity |
1 | Host | 1 unit |
2 | Mounting ears (choose 1 from 2) | 1 set |
3 | Power adapter (if selected) | 1 piece |
4 | Three-hole 1.5M national standard power cord (if selected) | 1 piece |
5 | 1.5m yellow-green ground wire M3 on the industrial computer side, M6 on the user cabinet side | 1piece |
6 | Shipping inspection report | 1 piece |
7 | Packing List | 1piece |
8 | Certificate | 1piece |
ORDERING
INFORMATION
2 | Power adapter | Default 12V5A, multiple power options |
3 | Wall mounting bracket, with 4 M4*6 round head screws | 1 pair |
4 | DIN Guide rail mounting ears | 1 set |

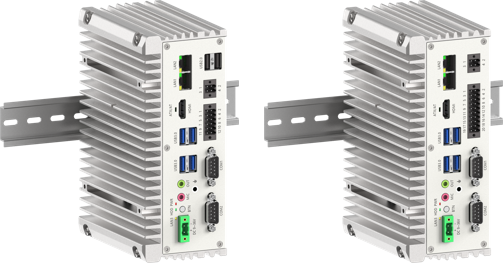

LOTS OF models FOR choose
