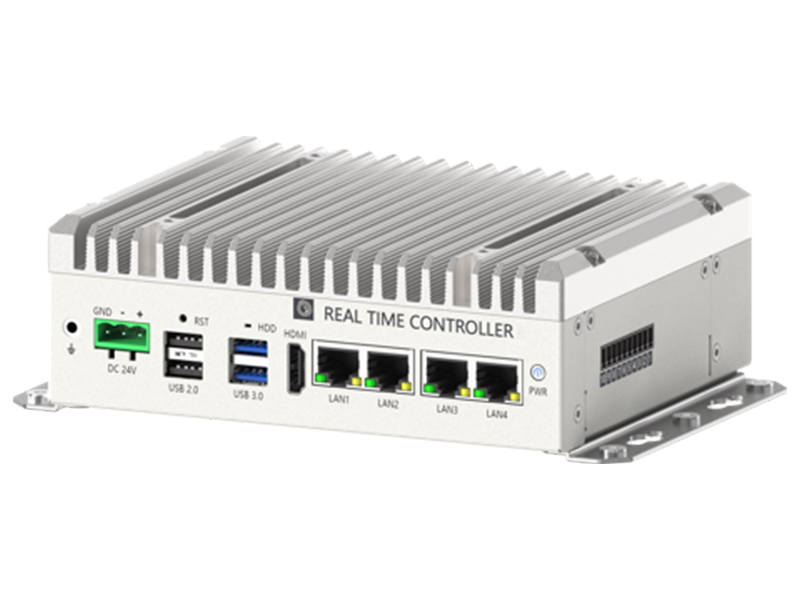

1. Compact low-power fanless industrial computer
2. Support J6412/N97/N95/N100/N305 CPU
3. 2 x USB3.2, 2 x USB2.0
4. Optional 16-way GPIO
5. Enclosed body, relying on aluminum profile body for heat dissipation
6. Windows 10/11/various versions of Linux
dimension diagram
PRODUCT
SPECIFICATIONS
model | AOS-SEN9781S401J |
CPU | Intel® Processor N-series Intel 7 process Alder Lake-N N97 Quad-core Maximum frequency 3.6GHz Cache 6M Typical power consumption 12W (J6412/N97/N95/N100/N305) |
Chipset | Intel® N97 SoC |
BIOS | AMI BIOS |
Memory | 1 x SO-DIMM DDR4 2666/2933/3200MHz，Maximum capacity16GB |
show | Provides HDMI display interface, Intel® HD Graphics display core |
network | 4 x Intel i210ATGigabit network card, supports network wake-up and PXE diskless boot functions, supports real-time requirements of motion control |
storage | 1 x m.2 2280 SATA/NVMeX2 SSDSSD slot, optional 1 x 2.5-inch hard drive slot |
USB | 2 x USB3.2，2 x USB2.0 |
COM | 2 x COM，COM1Support RS232/485 mode, COM2 supports RS485 mode |
CAN | Optional 2 x CAN |
Expansion slots | 1 x m.2 2230 E-Key，Support WIFI module, 1 x m.2 3052 B-Key, support 4G/5G module, etc., with SIM card holder, optional 1 x PCIEx1 slot |
Audio | none |
GPIO | Optional 16 channels GPIO |
Watchdog | Watchdog Function, supports 1~255 seconds system restart |
Terminal Blocks | 10-pin locking terminal block is reserved on the top of the machine |
Power interface | DC 24V Power supply, wiring type locking power terminal |
Fanless cooling | The machine body is closed and relies on the aluminum profile for heat dissipation, eliminating the hidden dangers of malfunction caused by traditional built-in cooling fans and dust entering the machine. |
Temperature control auxiliary cooling fan | An optional external temperature-controlled auxiliary fan can be installed. When the temperature is not high, the fan runs at idle speed. When the temperature rises, the fan speed increases until it runs at full speed. It is easy to disassemble and maintain. For high-temperature and closed environments, an external temperature-controlled auxiliary cooling fan can be installed to assist in cooling, enhance cooling, improve system operation comfort, and enhance system stability. |
operating system | Windows 10/11/Various versions of Linux |
Work Environment | Working temperature: -20°C ~60°C Environmental humidity: 0% ~95% Vibration with SSD: 5Grms/5~500Hz/random; Shock with SSD: 50G/half-sine/lasting 11ms; |
EMC/Certification | CE/FCC |
OPTIONAL POWER
TERMINAL
Optional horizontal
bracket
TERMINAL
DEFINITION
Serial number | name | illustrate |
1 | RX1/485+1 | 232/485 mode can be set |
2 | TX1/485-1 | |
3 | GND | |
4 | 485+2 | 485model |
5 | 485-2 | |
6 | GND | |
7 | UPS+ | DI input, detect UPS level |
8 | UPS- | |
9 | GND | Remote switch |
10 | SW+ |

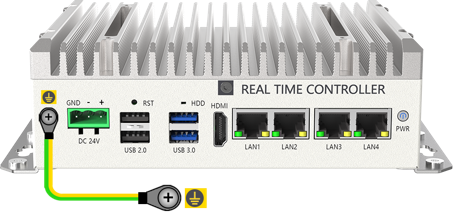

GROUNDING DIAGRAM

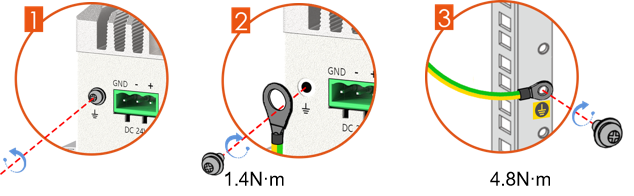

After the grounding cable is connected, perform the following checks:
The grounding cable is firmly and reliably connected to the grounding terminal
Use the ohm range of a multimeter to measure the resistance between the two ends of
the grounding wire. The grounding resistance is required to be less than 5Ω.
PACKING
LIST
Serial number | name | quantity |
1 | Host | 1set |
2 | Mounting ears (choose 1 from 2) | 1set |
3 | Power adapter (if selected) | 1set |
4 | Three-hole 1.5M national standard power cord (if selected) | 1set |
5 | 1.5m yellow-green ground wire M3 on the industrial computer side, M6 on the user cabinet side | 1set |
6 | Shipping inspection report | 1set |
7 | Packing List | 1set |
8 | Certificate | 1set |
ORDERING
INFORMATION
Serial number | name | illustrate |
1 | ||
2 | Power adapter | 1set |
3 | Wall mounting bracket, with 4 M4*6 round head screws | 1 pair |
4 | DIN rail mounting ears | 1set |
