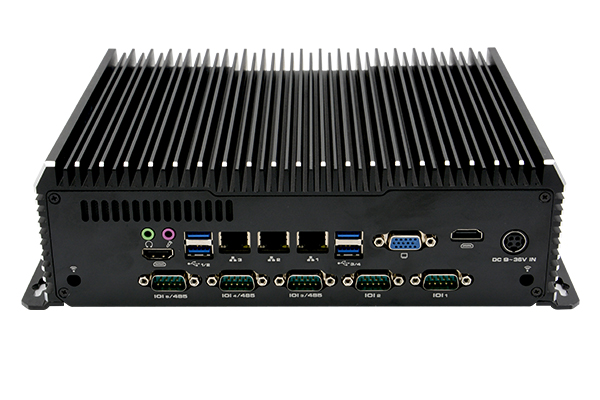

AOS-SEH11I41S3L6C
Product introduction：
Specification
CPU Chip RAM Storage
Display Networking
COM Front Panel I/O
Rear Panel I/O
Chassis Material Surface treatment Heat Dissipation Power Supply Mounting Dimension Working Temperature Storage Temperature Ambient Humidity Operating System | Board sticker Intel® LGA1151 I3 6100 CPU B365 2×SODIMM 4G,support DDR4 2400MHz Maximum 32GB 1×M.2 128G SSD 1×SATA HDD 1×VGA/2×HDMI output, support synchronous/asynchronous display function 3×Intel i211 1000M NIC chip, PCI-E bus Gigabit LAN card 1×MINI PCI-E interface, support wireless network (WIFI) or 3G 6×COM RS-232 (optional 2*RS485) 1*Power Switch/1*Reset Switch/1*AC LOSS(Power On/Off DIP Switch)/4*USB2.0 Interface/4*USB3.0/1*12PIN Support Quad Input Quad Output GPIO,Switch,5V/1*PS2/1×RS232 COM(Support RS232/RS485 Switch)/1*LED Lamp/1*SIM Card(3G/4G) ) 6×USB, 1×Power switch 1×VGA /2×HDMI/ 3× Intel i211AT/4*USB3.0/5*RS232(com3-com5 support RS232/485 switch)/1*Line out/1*Mic in/1*4pin DC power supply support 9-36V 1×DC_IN Aluminum Alloy Oxidized surface Fanless chassis with integrated heat dissipation DC9-36V power supply Flat, Wall Mount 282mm(L)×192mm(W)x80mm(H) 0~50℃ -40~75℃ 5~90% Air Humidity, Non-Condensing Windows XP / Windows 7 / Windows 10 / Linux |
Ordering Info
Sales Model | Description |
AOS-SEH11I41S3L6C | Intel Core i3-6100 3.7GHZ 4G RAM 128G SSD Intel Core i3-7100 3.9GHZ 4G RAM 128G SSD Intel Core i3-8100 3.6GHz 4G RAM 128G SSD Intel Core i3-9100 3.6GHz 4G RAM 128G SSD |
AOS-SEH11F41S3L6C | Intel Core i5-6400 2.7GHz 4G RAM 128G SSD Intel Core i5-7400 3.0GHz 4G RAM 128G SSD Intel Core i5-8400 2.8GHz 4G RAM 128G SSD Intel Core i5-9400 2.9GHz 4G RAM 128G SSD |
AOS-SEH11J41S3L6C | Intel Core i7-6700 3.4GHz 4G RAM 128G SSD Intel Core i7-7700 3.6GHz 4G RAM 128G SSD Intel Core i7-8700 3.2GHz 4G RAM 128G SSD |

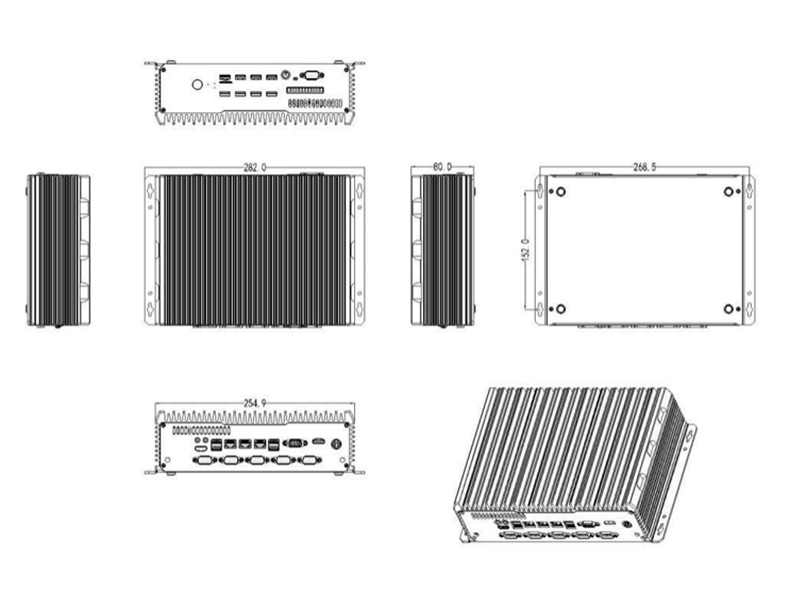

Dimension Drawing
Areas of application
Suitable for visual inspection, industrial automation, self-service terminals, industrial robotic equipment, etc.
