AOS-SPHG35A481S10H
Product introduction£º
Specifications
Capacitive/resistive optional 10.1-inch | |
CPU | Onboard Intel ATOM / Intel Core U Series Android Rockchip RK Series CPUs Domestic Phytium / Zhaoxin / Hygon |
Chipset | Intel® SOC |
BIOS | AMI 32Mbit; diskless boot, Wake-on-LAN, auto power-on and watchdog |
Capacity | 4GB SO-DIMM DDR3/DDR4 /DDR5 memory , Max.64GB |
SATA Interface MINI PCIE | 128G SSD 1xMini PCIE |
Chipset Output | CPU integrated HD Graphics VGA + HDMI, single/dual display (sync/async) 1 ¡Á VGA (Max. resolution: 1920¡Á1080) 1 ¡ÁHDMI (Max. resolution: 3840x2160) |
Chipset WIFI | 2 ¡Á 10/100/1000M (RJ45 LAN, 4 groups optional) 1 x Mini PCIE half card |

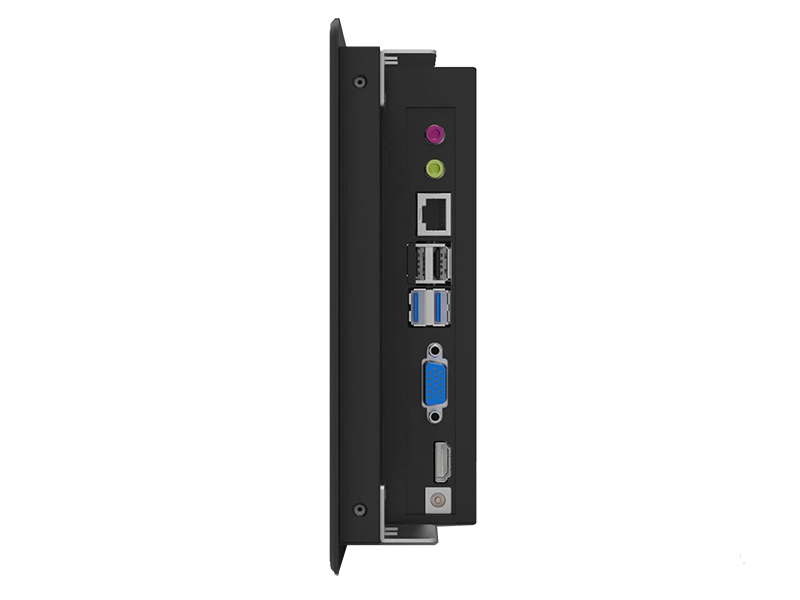

USB 3.0 USB 2.0 COM GPIO Power button Reset DC JACK Audio | 2x USB3.0 (4*USB3.0 optional) 2¡Á USB2.0 1x COM (6 groups RS232/485/422 optional) 1x GPIO (1 group, 4-in/4-out optional) 1 ¡Á power button 1 ¡Á Reset button 1 ¡Á DC JACK 1 ¡Á LINE-OUT & MIC-IN |
Input Rated Power | DC 12V (9-36V wide input optional) 60W |
Output Interval | Interrupt, system restart 255-level timing interval |
Size | 193mm (L) x 294mm (W) x53 mm (H) |
Temperature Humidity | Operating Temperature: 0¡ãC~50¡ãC Storage Temperature: -20¡ãC~70¡ãC 5%~90% non-condensing |
Version | Windows 7 / windows8 /Windows 10/Windows 11 Linux Optional Android 12/13, Linux QT/Debian 11/Ubuntu 20.04, UOS and OpenHarmony 4.0 Kylin / UOS / Fangde / Linux |
Ordering Information
Sales Model | Description |
ATOM Series | J1800/J1900/J2900 CPU N4000/N4020/N4100/N4120/N5000 /N5030/J4025/J4125/J5005/J5040 J6413/J6412/J6426/N5095 N95/N97/N100/N105/N200/I3 N300/I3 N305 |
Core U Series | Onboard Intel Core U CPUs: I3 3217U/ I5 3317U/I7-3537U/I3-4030U/ I3-5005U/ I5 4300U/I5 5300U/I7 4600U/I7 5600U/I3-6100U/ I5-6200U/ I5-6360U/ I7-6500U I3-7100U /I5-7200U/ I5 7300U/I7-7500U/I3-8145U/ I5-8265U / I7-8565U/ I3-10110U/ I5-10210U / I7-10510U/I3-1110G4/ I5-1135G7/I7-1160G7 I3-1220P/ I3-1215U/ I5-1240P/ I7-1260P/ I3-1315U/ I5-1340P/ I7-1360P Ultra Series: Ultra3, Intel Ultra5 135H/135U, Ultra7 155H/155U, Ultra9 185H/185U |
Android Series CPUs | Supported RK Series: RK 3188/RK 3288/RK3328/RK 3399/RK 3566/RK 3568/RK 3399PRO/ RK 3576/RK 3512/RK 3588/3588S, etc. |
Domestic Series CPUs | Phytium CPUs: FT-2000, FT-D2000, FT-D3000 Zhaoxin CPUs: KX-U6780A, KX-6580, KX-6640A, KX-6640MA, KX-7000 Hygon CPUs: HG-3230, HG-3350, HG-3450 |
Application Fields
Suitable for visual inspection, industrial automation, self-service terminals, industrial robots, laser cutting, CNC equipment, and other fields.
