processor

CPU

Intel Atom board-level full series, Intel Core U board-level full series, Intel Core-S desktop series

The full series of RK CPUs from Rockchip for Android

Domestic IT innovation companies such as Phytium, Zhaoxin, and Hygon

chip set

Intel® SOC/H610

BIOS

The 32Mbit AMI supports diskless boot, network wake-up, power-on boot, watchdog, and other features.

internal storage

capacity

8GB SO-DIMM DDR3/DDR4 /DDR5 memory ,  Max.96GB

memory

SATA joggle

MINI PCIE

128G SSD

1xMini PCIE

video card

NVDIA

GTX1030 2G/1050TI 4G/1650 4G/1060 6G/RTX3050 6G/3080 16G/4060 8G

AMD

RX550 2G/RX550 4G/RX580 8G

domestic

Jingjia Micro 7201 2G/9100 2G; Chindong A4 2G/4G/A6 4G

show

chip set

output

CPU integrated graphics HD Graphics

DP (VGA optional) + HDMI single display, dual display (synchronous/asynchronous)

1 ¡ÁDP (VGA optional) (Supports maximum resolution: 7680¡Á3840)

1 ¡ÁHDMI (Supports up to 3840x2160 resolution)

network

slug

WIFI

2 ¡Á 10/100/1000M (RJ45 LAN ¨C up to 4 groups optional)

1 x  Mini PCIE half card

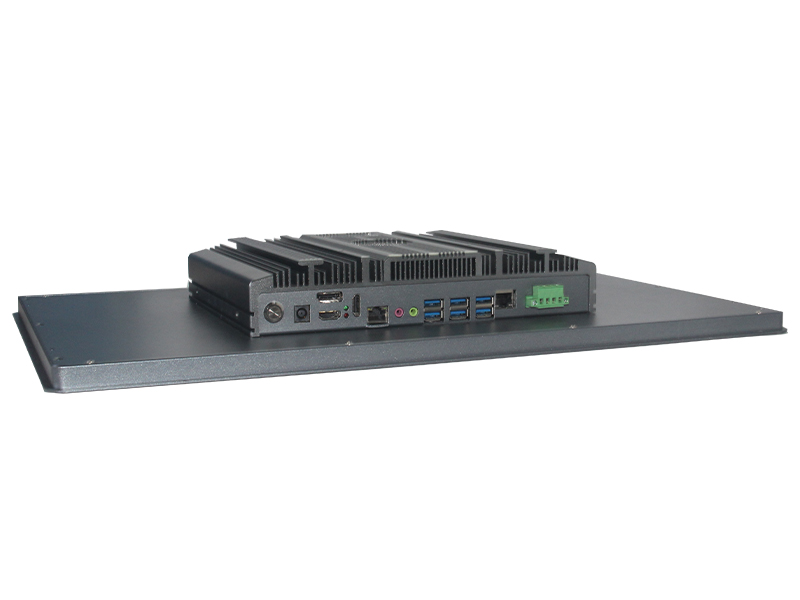

I/O

USB 3.0

USB 2.0

COM

GPIO

Power button

Reset

DC JACK

audio frequency

2x USB3.0 (6x USB3.0 optional)

2¡Á USB2.0

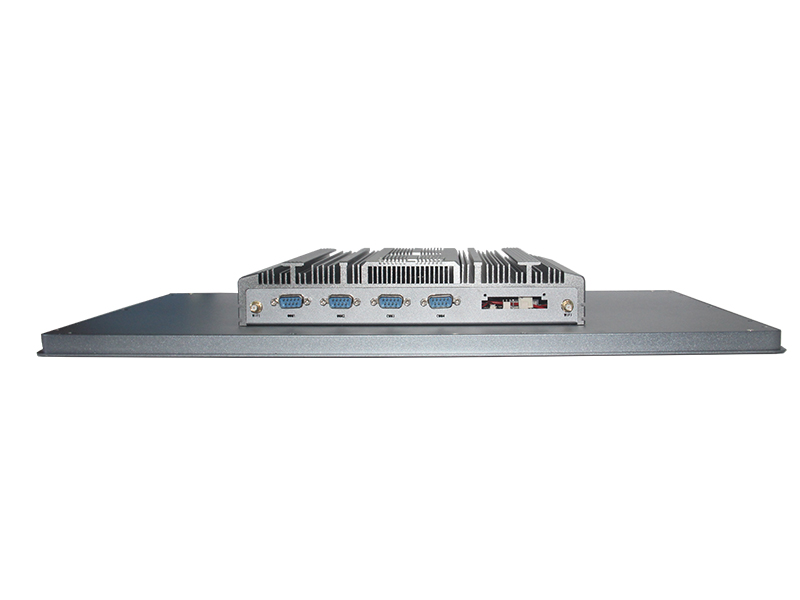

1x COM (with optional 6 sets of RS232/485/422 ports)

1x GPIO (optional 1 set of 4 inputs/4 outputs)

1 ¡Á power button

1 ¡Á Reset button

1 ¡Á DC JACK

1 ¡Á LINE-OUT &  MIC-IN

source

import

rated dissipation

DC 12-19V (with optional 9-36V wide voltage range)

90-300W

watchdog

output

margin

Interrupt, system reboot

Level 255 Fixed Interval

Physical parameters

size

525mm (L) x 320mm (W) x80 mm (H)

environment

temperature

humidity

Operating temperature: 0¡ãC to 50¡ãC Storage temperature: -20¡ãC to 70¡ãC

5%~90% No condensation

operating system

edition

Windows 7 / windows8 /Windows 10/Windows 11/ Linux

Available options: Android 12/13, Linux QT/Debian 11/Ubuntu-20.04, UnionTech UOS, and OpenHarmony4.0

Kirin/UOS/China Unicom/Intel/Intel/Intel/Intel/Intel/Intel/Intel/Intel/Intel/Intel/Intel/Intel/Intel/Intel/Intel/Intel

ATOM series

J1800/J1900/J2900 CPU

N4000/N4020/N4100/N4120/N5000 /N5030/J4025/J4125/J5005/J5040

J6413/J6412/J6426/N5095

N95/N97/N100/N105/N200/I3 N300/I3 N305

Core Union series

Intel Core U series CPUs: I3 3217U, I5 3317U, I7-3537U, I3-4030U, and I3-5005U.

I5 4300U/I5 5300U/I7 4600U/I7 5600U/I3-6100U/ I5-6200U/ I5-6360U/ I7-6500U

I3-7100U /I5-7200U/ I5 7300U/I7-7500U/I3-8145U/ I5-8265U / I7-8565U/

I3-10110U/ I5-10210U / I7-10510U/I3-1110G4/ I5-1135G7/I7-1160G7

I3-1220P/ I3-1215U/ I5-1240P/ I7-1260P/ I3-1315U/ I5-1340P/ I7-1360P

The Ultra series includes the Ultra3, Intel Ultra5 135H/135U, Ultra7 155H/155U, and Ultra9 185H/185U.

Android series CPU

Supports all RK series: RK 3188/RK 3288/RK 3328/RK 3399/RK 3566/RK 3568/RK 3399PRO/

RK 3576/RK 3512/RK 3588/3588S, etc.

Domestic series CPU

Feiteng series CPU: FT-2000, FT-D2000, FT-D3000

Zhaoxin series CPUs: KX-6780A, KX-6580, KX-6640A, KX-6640MA, KX-7000

HaiGuang series CPU: HG-3230, HG-3350, HG-3450

Core S Series

Intel Core S-series desktop CPU:

Intel® H110/Z170: i3-6100/I5-7400/i5-8400T/I9-9900£¬Intel® H310: i3-8100/I9 9900X

Intel® H510: i3-10100/i5-10400 /i5-11400 /i7-11700/i9-11900

Intel® H610/B660/Q670: i3-12100/i5-13400/ i7-13700/ i9-13900/I7-14700

Intel® H810 LGA1851 Core™ Ultra 2 Series processors (Ultra9, Ultra7, Ultra5)

Core S+ MXM Graphics Card Series

Intel Core S-series desktop CPU:

Intel® H110/Z170: i3-6100/I5-7400/i5-8400T/I9-9900£¬Intel® H310: i3-8100/I9 9900X

Intel® H510: i3-10100/i5-10400 /i5-11400 /i7-11700/i9-11900

Intel® H610/B660/Q670: i3-12100/i5-13400/ i7-13700/ i9-13900/I7-14700

Intel® H810 LGA1851 Core™ Ultra 2 Series processors (Ultra9, Ultra7, Ultra5)

Graphics card options: GTX1030 2G, RX550 4G,1050TI 4G,1650 4G,1060 6G, RTX3050 6G,3080 16G,4060 8G

Available domestic graphics cards: Jingjia Micro 7201 (2GB/9100) and Chindong A4 (2GB/4GB/A6 4GB).
