CPU

CPU

intel core Skylake-U 6~7´ú I7-6500U

Or intel core4~13 gen I3-4030U/I5-5300U/ I5-6200U/I5-7200U/I7-8565U/I7-10510U / I5-1135G7/I3-1220P/I5-1235U/I5-1340P/I7-1270P/I7-1355eri3- i5- i7CPUchoice

Chipset

Intel® SOC

BIOS

AMI 32Mbit£¬support diskless boot, wake on LAN, power-on boot, watchdog etc.

Memory

Capacity

16GB SO-DIMM DDR4 2400 MHz memory ,  Max.32GB

Storage

SATA Port

MINI PCIE

512G SSD

1xMini PCIE

Display

Chipset

output

CPU integrated HD Graphics

VGA+HDMIsingle/dual display (synchronous/asynchronous display)

1 ¡Á VGA   £¨Max. resolution£º1920¡Á1080£©

1 ¡ÁHDMI   £¨Max. resolution£º3840x2160£©

Internet

Lan

WIFI

2 ¡Á 10/100/1000M£¨RJ45 LAN£©

1 x  M.2 MINI PCIE  card

I/O

USB 3.0

USB 2.0

Power button

Reset

COM Port

DC JACK

Audio

2x USB3.0

2¡Á USB2.0

1 ¡Á power button

1 ¡Á Reset button

 1 ¡Á RS232+1 X RS485(Max Supports 6COM)

1 ¡Á DC JACK

1 ¡Á LINE-OUT &  MIC-IN

power

Input

Rated power

DC  12V or9-36V

60W

Watch dog

Output

Interval

Interrupts, system restart

L255 time interval

Physical parameters

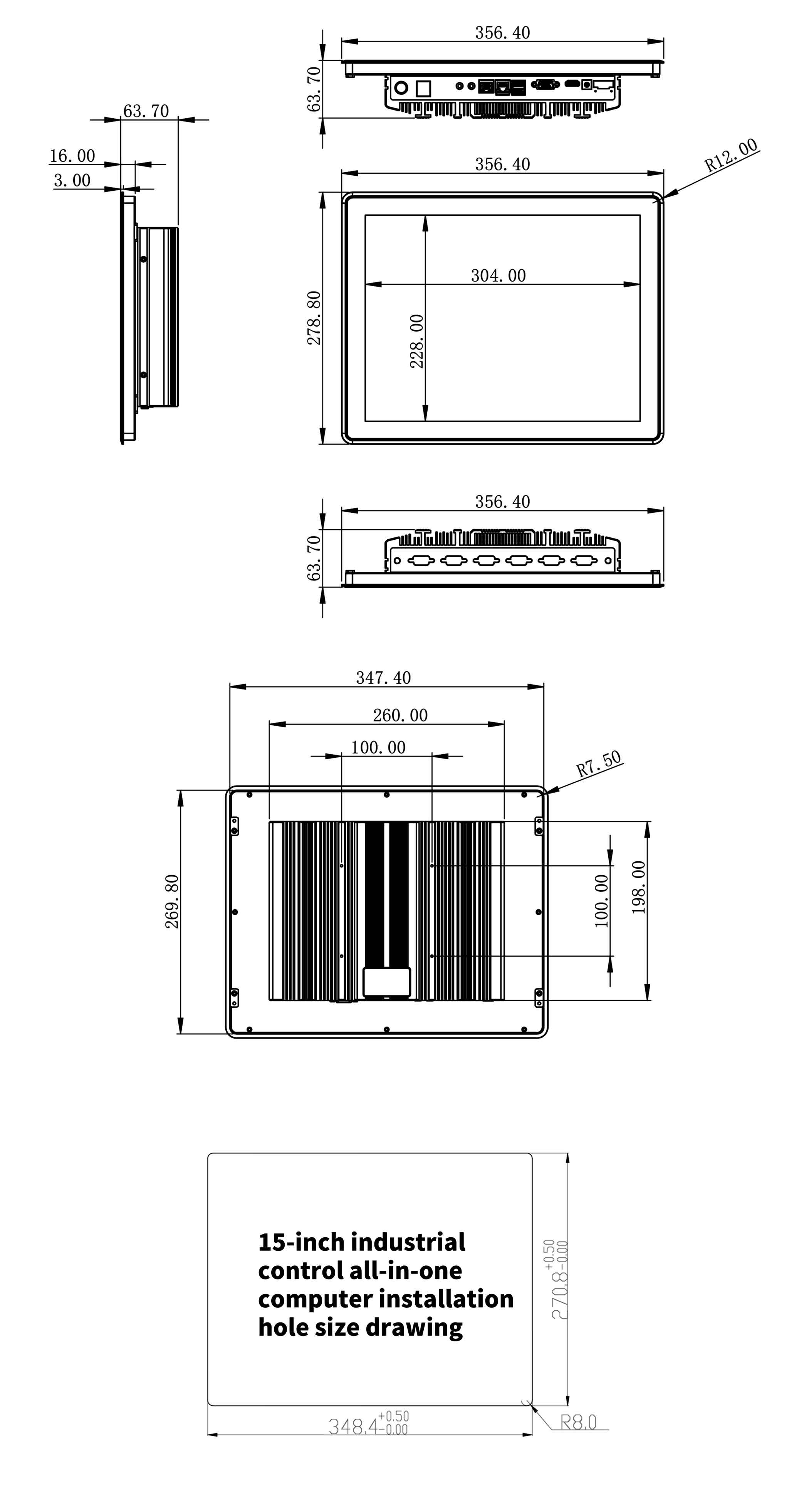

Dimensions

356.4mm (L) x 278.8mm (W) x 63.7mm (H)

environment

Temperature

Humidity

Working temperature£º-20¡ãC ~70¡ãC    Storage temperature£º-25~75¡ãC

5%~90% No condensation

Operating system

Vision

Windows 10/Windows 7 / windows11 / Linux

AOS-SOHUJ82S5Z

Intel Core I7-4600U    8G Memory    256G SSD

AOS-SOSUJ165S5Z

Intel Core I7-6500U    16G Memory    512G SSD

AOS-SOWUJ165S5Z

 Intel Core I7-8565U   16G Memory    512G SSD

AOS-SOTUF165S5Z

 Intel Core I5-1135G7   16G Memory    512G SSD

AOS-SOAUJ165S5Z

 Intel Core I7-1270P   16G Memory    512G SSD

AOS-SOMUJ165S5Z

 Intel Ultra 7-155U   16GMemory    512G SSD
