size

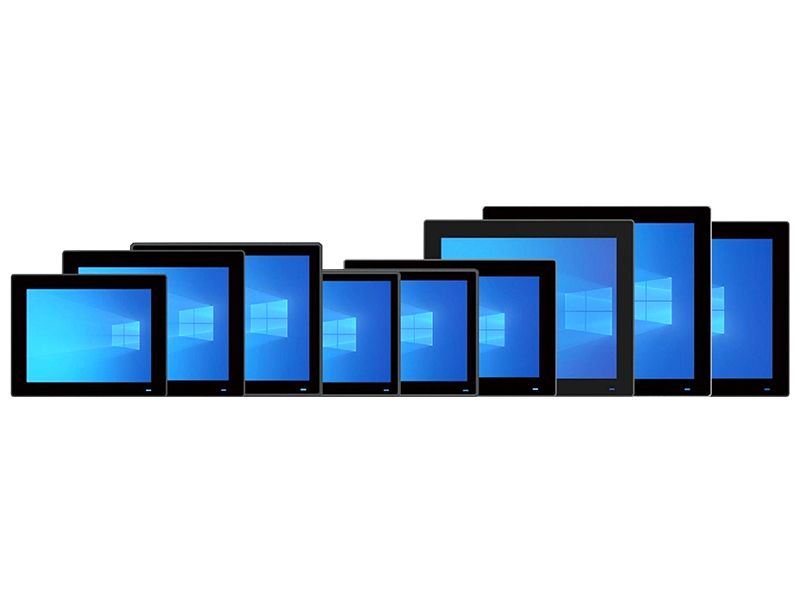

Screen size

7-inch, 8-inch, 10.1-inch, 10.4-inch, 12.1-inch, 13.3-inch, 15-inch, 15.6-inch, 17-inch,

18.5-inch, 19-inch, 21.5-inch, 23.8-inch 4:3, 16:9 ratio display

Screen Display

Resolution

640¡Á480¡¢800¡Á600¡¢1024¡Á600¡¢1024¡Á768¡¢1280¡Á800¡¢1280¡Á1024¡¢1920¡Á1080¡¢  1920¡Á1200

Screen temperature

Operating temperature

0~50¡æ¡¢-10~60¡æ¡¢-20~60¡æ¡¢-20~65¡æ¡¢-20~70¡æ¡¢-20~80¡æ¡¢-30~70¡æ¡¢           -30~80¡æ¡¢-30~85¡æ

brightness

Screen brightness

250/300/350/400/450/500/600/800/1000 nits

Installation

Embedded

Support embedded panel installation (opening size other than standard products can be adjusted according to user needs)

processor

CPU

Support Intel 3rd~14th generation I3/I5/I7/I9 I3-3220/I5-4440/I7-6700T/I3-7100/I5-8400/ I7-9700T/I3-10100/I5-11500T/I7-12700/ I9-13900/I5-14500 and other CPUs are optional

Chipset

IntelB75/B85/H81/H110/Q170/H310/Q370/Z390/H420E/Q470/H610/Q670

BIOS

AMI 32Mbit£¬Support diskless boot, network wake-up, power-on boot, watchdog and other functions

Memory

capacity

Supports 2¡ÁDDR42133/2400/2666MHz memory slots, up to 64GB

storage

SATA interface

NVMe

1¡ÁmSATA,1xm.2 M-Key SATA/NVMe 2280(QPlatform) Optional 2.5-inch or 3.5-inch hard disk

Protection level

IP66

By adding the glue dispensing process, the front panel is dustproof and waterproof, and the protection level reaches the reliable IP66

show

Chipset Output

Provide 1¡ÁVGA, 1¡ÁDVl-D, 1¡ÁHDMI display interface

network

Chip

WIFI

1x Inteli210,1¡ÁIntel¢ài219,1¡ÁRealtek 8125BG2.5G Network Card

Extensions

Rich control interface

Expansion slot

Rich interface expansion capabilities, expandable COM, USB, SMBUS, PS/2, LPT, 16/32-way GPIO, multi-port vision card, light source controller

Rich slot expansion capabilities, flexible combination of PCIE16X, 4X (Q platform), 1X, PCI slots, dozens of expansion slots optional

I/O

USB

COM port

DC JACK

Audio

Default 6¡ÁUSB 3.0, more USB ports can be expanded

Default 2¡ÁCOM, RS232/422/485 optional, COM ports can be expanded

1 ¡Á DC JACK

Realtek sound card, supports Line-out, Mic-in

GPIO interface

GPIO

16/32 GPIO optional

Optional motherboard direct output standard GPIO

Optional optocoupler isolation rugged GPIO, supports dry contact, wet contact, bidirectional optocoupler isolation, withstand voltage up to 80V. Optional NPN, PNP mode. DI is to filter out interference, and will not work below 5V.

DO is amplified by OD gate, and the output current can reach 300-500mA

terminal

Terminal Blocks

The IO panel has a 3.5mm 2¡Á2pin locking terminal block, which can be predefined before leaving the factory. The default Remote SW and Power Led

power supply

Input Rated power consumption

Lockable DC9-36V wide voltage power supply interface, providing DCJACK round and 2pin 5.08mm wiring type 2 power terminals to choose from

Watchdog

Output

Interval

Interrupt, system restart

255 level timer interval

environment

Temperature Humidity

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20~70¡ãC

5%~90% non-condensing

operating system

Version

Windows 10/11/Various versions of Linux/domestic system Tongxin Kylin, etc.

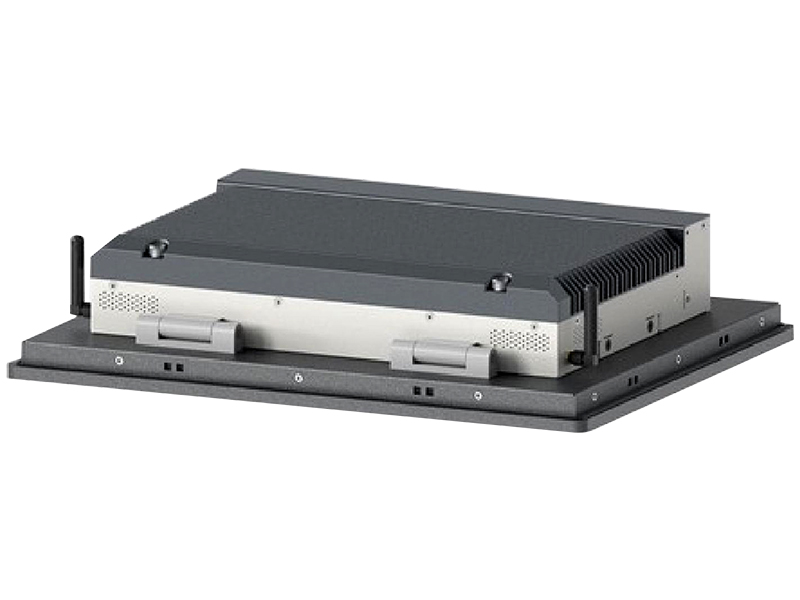

Fanless

design

The machine body is closed and relies on the aluminum die-casting body to dissipate heat, eliminating the hidden dangers of malfunction caused by traditional built-in cooling fans and dust entering the machine.

Physical Dimensions

15-inch tablet

371.4mm (L) x 297.7mm (W)x79mm(H)

AOS-SPH81F82S4J

CPU£ºI5-4440      Screen: 10.1 inches Memory: 8G Storage: 256G SSD

AOS-SPH31J82S4J

CPU£ºI7-6700T     Screen: 13.3 inches Memory: 8G Storage: 256G SSD

AOS-SPQ47F82S4J

CPU£ºI5-11500T       Screen: 15.6 inches Memory: 8G Storage: 256G SSD

AOS-SPH61I82S4J

CPU£ºI3-13100       Screen: 21 inches Memory: 16G Storage: 256G SSD
