size

Screen size

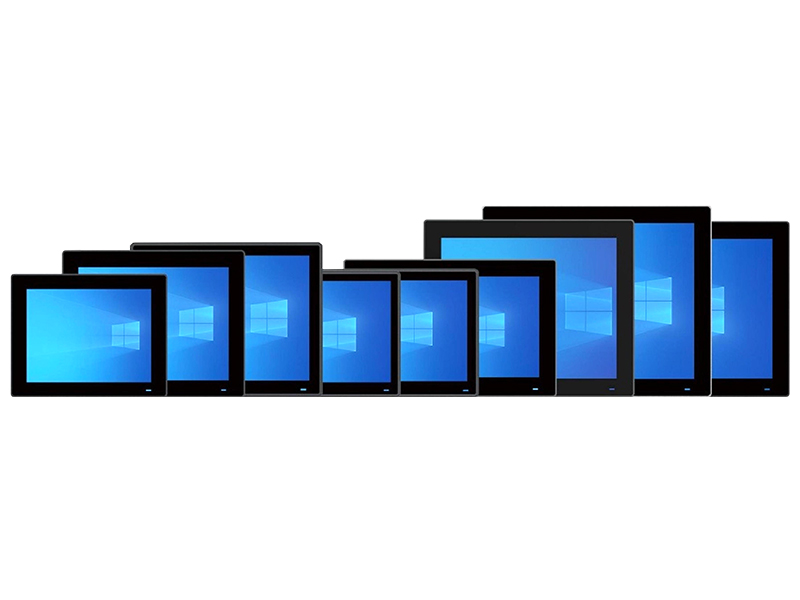

7-inch, 8-inch, 10.1-inch, 10.4-inch, 12.1-inch, 13.3-inch, 15-inch, 15.6-inch, 17-inch,

18.5-inch, 19-inch, 21.5-inch, 23.8-inch 4:3, 16:9 ratio display

Screen Display

Resolution

640¡Á480¡¢800¡Á600¡¢1024¡Á600¡¢1024¡Á768¡¢1280¡Á800¡¢1280¡Á1024¡¢1920¡Á1080¡¢  1920¡Á1200

Screen temperature

Operating temperature

0~50¡æ¡¢-10~60¡æ¡¢-20~60¡æ¡¢-20~65¡æ¡¢-20~70¡æ¡¢-20~80¡æ¡¢-30~70¡æ¡¢           -30~80¡æ¡¢-30~85¡æ

brightness

Screen brightness

250/300/350/400/450/500/600/800/1000 nits

Installation

Embedded

Support embedded panel installation (opening size other than standard products can be adjusted according to user needs)

processor

CPU

Android ARM ROCKCHIP SOC package 3328/3288/3399/3588/3568/3576/3588 CPU optional

Chipset

Intel® SOC

BIOS

AMI 32Mbit£¬Support diskless boot, network wake-up, power-on boot, watchdog and other functions

Memory

capacity

2~8G 1¡ÁDDR4 £¬Maximum capacity 8GB,

1~4G, maximum capacity 4GB

storage

SATA interface

NVMe

Onboard EMMC 8G (16G/32G/64G optional), provides a TF memory card slot, users can expand the storage space as needed

Protection level

IP66

By adding the glue dispensing process, the front panel is dustproof and waterproof, and the protection level reaches the reliable IP66

show

Display interface

Chipset/output

GPU

NPU

Provides HDMI display interface, supports external display to expand the screen, and supports synchronous touch operation

Supports 4K 6Ofps H.265/H.264/VP9 video decoding

Supports 1080P 10Ofps H.265/H.264 video encoding

Supports 8M ISP, supports HDR

ARM G522EE supports OpenGL ES 1.1/2.0/3.2, OpenCL2.0, Vulkan 1.1 embedded high-performance 2D acceleration hardware

Supports 1T computing power

network

Chip

WIFI

10M/100M adaptive Ethernet, WIFI wireless network, support WIFI-2.4G (expandable BT-4.0)

Expansion slots

Slots

1¡Ám.22230 E-Key, supports WIFI module, 1¡Ám.23052B-Key, supports 4G/5G module, etc., supports 3.3V/4.0V power supply voltage switching. With SIM card slot, provides 2x3pin socket for external SIM card signal. The 1¡Ám.2 M-Key 2280 SATA/NVMeX4 socket on the board supports both SSD and computing power stick

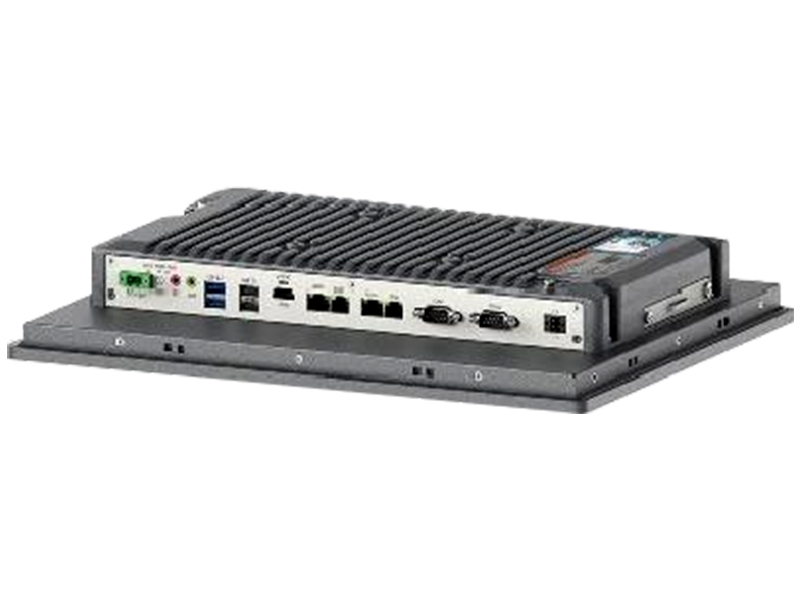

I/O

USB

COM port

DC JACK

Audio

Terminal block

Default 3¡ÁUSB, 1¡ÁOTG USB TYPE-A, 2 more USB ports can be expanded as needed

Default 2¡ÁCOM, COM1 is RS232, COM2 is TTL

1 ¡Á DC JACK

Built-in dual speakers, two 8¦¸5W speaker outputs, 3.5mm audio interface, Line-OUt and Mic composite interface

Reserved 3.81mm 1¡Á6pin locking terminal, can be pre-defined before leaving the factory, default RemoteSW and POWER LED

GPIO interface

GPIO

Optional 4 IO interfaces, factory preset

terminal

Terminal Blocks

The IO panel has 2¡Á2pin 3.5mm locking terminal blocks, which can be predefined before leaving the factory. The default Remote SW and Power Led (3.3V detection signal) are optional. 2¡Á10pin 3.5mm locking terminal blocks are optional, which can be customized by the user. GPIO is optional

power supply

Input Rated power consumption

Lockable DC 12V power supply interface, with two types of power terminals: round and wired

Watchdog

Output

Interval

Interrupt, system restart

255 level timer interval

environment

Temperature Humidity

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20~70¡ãC

5%~90% non-condensing

operating system

Version

Support Android 5.1.1, 7.1.2, 11 systems, factory preset

/domestic system Tongxin Kirin, etc.

Fanless

design

The machine body is closed and relies on the aluminum die-casting body to dissipate heat, eliminating the hidden dangers of malfunction caused by traditional built-in cooling fans and dust entering the machine.

Physical Dimensions

15-inch tablet

371.5mm (L) x 297.7mm (W)x55mm(H)

AOS-SP3282S12J

CPU£º3328      Screen£º10.1 inches     Memory£º8G      storage£º256G SSD

AOS-SP3682S32J

CPU£º3568       Screen£º13.3 inches     Memory£º8G     storage£º256G SSD

AOS-SP3782S72J

CPU£º3576      Screen£º17 inches       Memory£º8G      storage£º256G SSD

AOS-SP38162S22J

CPU£º3588       Screen£º21 inches       Memory£º16G     storage£º256G SSD
