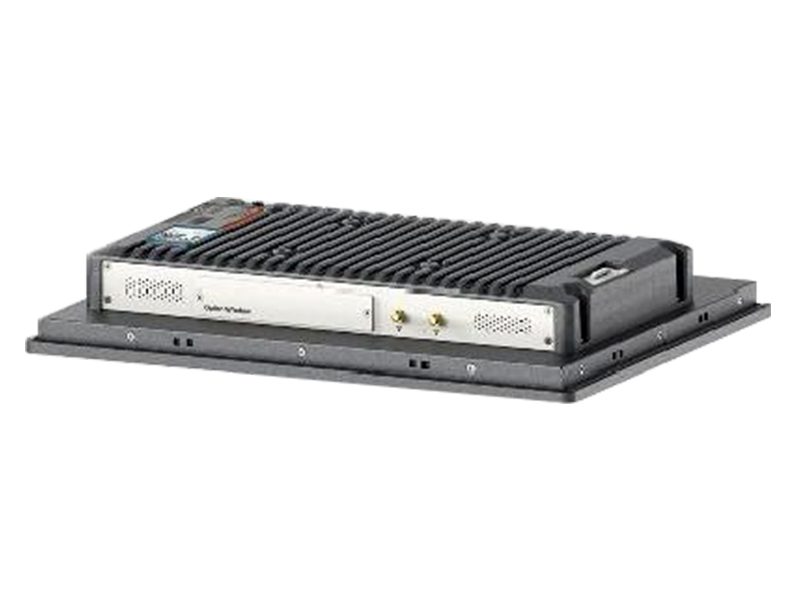

AOS-SPN10I82S1J
Product introduction£º
Product introduction
Embedded, wall-mounted installation
7-inch, 10.1-inch, 10.4-inch, 12.1-inch, 15-inch, 17-inch, 18.5-inch, 19-inch, 21.5-inch, 23.8-inch 4:3, 16:9 ratio display screens are available
Support Intel ATOM J1800/J1900/J2900/J4125/N4000/N5000/J6412/N100/N97/N105 CPUs are available
Support DDR3/DDR4/4~32G memory is available
Support 2~4 Gigabit network ports are available
Default 2¡ÁUSB3.2, 2¡ÁUSB2.0, optional as needed
10th generation core graphics card HDMI display expansion screen
Provide 2 COM interfaces, optional as needed
Support network wake-up, power-on, watchdog, etc.
Products comply with CE FCC ROHS specifications
Specifications
Screen | touchscreen | Default full-plane 10-point capacitive touch screen, optional 5-wire resistive touch screen |
size | Screen size | 7-inch, 8-inch, 10.1-inch, 10.4-inch, 12.1-inch, 13.3-inch, 15-inch, 15.6-inch, 17-inch, 18.5-inch, 19-inch, 21.5-inch, 23.8-inch 4:3, 16:9 ratio display |
Screen Display | Resolution | 640¡Á480¡¢800¡Á600¡¢1024¡Á600¡¢1024¡Á768¡¢1280¡Á800¡¢1280¡Á1024¡¢1920¡Á1080¡¢ 1920¡Á1200 |
Screen temperature | Operating temperature | 0~50¡æ¡¢-10~60¡æ¡¢-20~60¡æ¡¢-20~65¡æ¡¢-20~70¡æ¡¢-20~80¡æ¡¢-30~70¡æ¡¢ -30~80¡æ¡¢-30~85¡æ |
brightness | Screen brightness | 250/300/350/400/450/500/600/800/1000 nits |
Installation | Embedded | Embedded supports embedded panel installation (opening size other than standard products can be adjusted according to user needs) |
processor | CPU | Intel J1800/J1900/J2900/J4125/N4000/N5000/J6412/N100/N97/N105 |
Chipset | Intel® SOC | |
BIOS | AMI 32Mbit£¬Support diskless boot, network wake-up, power-on boot, watchdog and other functions | |
Memory | capacity | 1¡ÁDDR4 SO-DIMM 2666Memory, maximum capacity 32GB, 1¡ÁDDR3 SO-DIMM 1600 Memory, maximum capacity 8GB |
storage | SATA interface NVMe | 1¡Ám.22280 SATA/ Solid state drive slot, optional 1¡Á2.5-inch hard drive slot, optional external pull-out hard drive slot |
Protection level | IP66 | By adding the glue dispensing process, the front panel is dustproof and waterproof, and the protection level reaches the reliable IP66 |
show | Chipset Output | Integrated Intel⁵UHD Graphics 10th generation core graphics card, supports external HDMI display to expand the screen, and supports synchronous and asynchronous touch operation |
network | Chip WIFI | Dual Gigabit LAN on the board, Intel i219LM and Intel i210AT, Realtek 8111H Gigabit LAN on the board, in the form of a socket, supports network wake-up and PXE diskless boot function |
Expansion slots | Slots | 1¡Ám.22230 E-Key,Supports WIFI module, 1¡Ám.23052B-Key, supports 4G/5G module, etc., supports 3.3V/4.0V power supply voltage switching. With SIM card slot, provides 2x3pin socket for external SIM card signal. The 1¡Ám.2 M-Key 2280 SATA/NVMeX4 socket on the board supports both SSD and computing power stick |

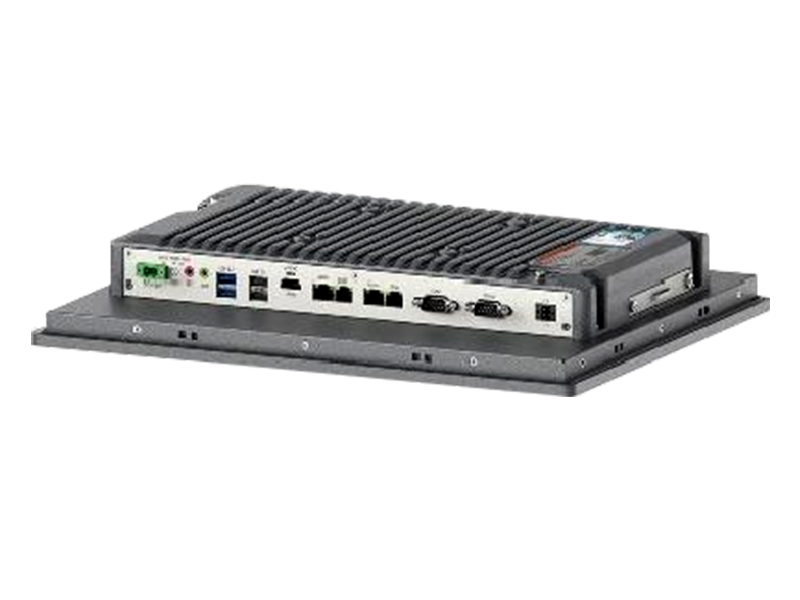

I/O | USB COM port DC JACK Audio | Default 2¡ÁUSB3.2, 2¡ÁUSB2.0, can be expanded according to needs Default COM1/2, RS232/RS422/485, all BIOS settings, COM port can be expanded according to needs 1 ¡Á DC JACK Integrated Realtek ALC897 HD digital audio decoder/Line-out, MIC-in, built-in 8¦¸2W speaker |
GPIO interface | GPIO | Up to 16 GPIOs are available. Standard GPIOs can be directly output from the motherboard. Optocoupler isolation and rugged GPIOs are available. DI supports dry contacts and wet contacts, bidirectional optocoupler isolation, and input voltage supports 9-80V wide voltage. NPN and PNP modes are available. DI is used to filter out interference, and will not function below 5V. DO is optocoupler isolated and amplified by OC gate. The maximum output current can reach 500mA, and the output voltage depends on the external power supply. |
terminal | Terminal Blocks | IO The panel has 2¡Á2pin 3.5mm locking terminal blocks, which can be predefined before leaving the factory. The default Remote SW and Power Led (3.3V detection signal) are optional. 2¡Á10pin 3.5mm locking terminal blocks are optional, which can be customized by the user. GPIO is optional |
power supply | Input Rated power consumption | Lockable DC 9-36V wide voltage power supply interface, providing DCJACK round and 2pin 5.08mm wiring type 2 power terminals to choose from |
Watchdog | Output Interval | Interrupt, system restart 255 level timer interval |
environment | Temperature Humidity | Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20~70¡ãC 5%~90% non-condensing |
operating system | Version | Windows 10/11/Various versions of Linux/domestic system Tongxin Kylin, etc. |
Fanless | design | The machine body is closed and relies on the aluminum die-casting body to dissipate heat, eliminating the hidden dangers of malfunction caused by traditional built-in cooling fans and dust entering the machine. |
Dimensions | 15-inch tablet | 371.5mm (L) x 297.7mm (W)x 60mm(H) |
Ordering Information
Sales Model | Configuration |
AOS-SPN182S11J | CPU£ºN100 Screen: 10.1 inches Memory: 8G Storage: 256G SSD |
AOS-SPN482S31J | CPU£ºN400 Screen: 13.3 inches Memory: 8G Storage: 256G SSD |
AOS-SPJ682S61J | CPU£ºJ6412 Screen: 15.6 inches Memory: 8G Storage: 256G SSD |
AOS-SPJ4162S21J | CPU£ºJ4125 Screen: 21 inches Memory: 16G Storage: 256G SSD |
Application fields:
Suitable for education, restaurants, hotels, shopping malls, company meetings, government affairs disclosure and other fields.
