Chipset

IntelB75/B85/H81/H110/Q170/H310/Q370/Z390/H420E/Q470/H610/Q670

BIOS

AMI 32Mbit£¬Support diskless boot, network wake-up, power-on boot, watchdog and other functions

Memory

capacity

2/4 memory slots, 4GB/8GB- DDR3, 4GB/8GB/16GB/32GB/64GB- DDR4/DDR5, maximum support 32/64/128/256GB optional

storage

SATA/M.2 interface

mSATA,m.2 M-Key 2280 SATA/NVMe SSD,1¸ö2.5inch hard disk slot, 2/4 3.5-inch hard disk slots, optional 1 optical drive slot

show

Chipset

Output

Independent graphics card

Supported Graphics Cards

Provides VGA+DVI+HDMI+DP display interfaces

This model has a depth of 405mm and is suitable for large independent graphics cards with 3 fans. Because large independent graphics cards have high power consumption and high temperature inside the chassis, 3 system fans are used by default.

GTX1030/ GTX1050/ RX550/ GTX1050TI/ GTX1650/ GTX1060/ GTX1070/ GTX1080/ RTX3050/ RTX3050/ RTX3060/ RTX3070/ RTX3080/ RTX4060/ A1000/ A2000/ T1000/ P1000/ P2000/ P3000

network

Chip

WIFI/3G/4G

Onboard 2 or more Intel® 10/100/1000/2500Mb adaptive network cards

Intel¡òi210AT, Inteli219LM, Inteli225V and other network card chips

I/O

Rear IO panel USB

Front panel USB

COM port

Audio

6-8 USB2.0/3.0/3.2, 2-4 USB2.0 can be expanded

2¡Á USB2.0

Provide 2-10 COM ports, COM1-2 can be set to RS232/422/485

1 ¡Á LINE-OUT & MIC-IN &1x LINE IN, integrated 6-channel high-fidelity sound

Expansion slot (optional)

PCLE Slots

Provide PCl-E16X slot, PCl-E 8X slot, PCl-E 4X slot, PCl-E 1X slot, PCl slot

Onboard Features

Front Panel

Provides switch, indicator light, 2 USB2.0 ports,

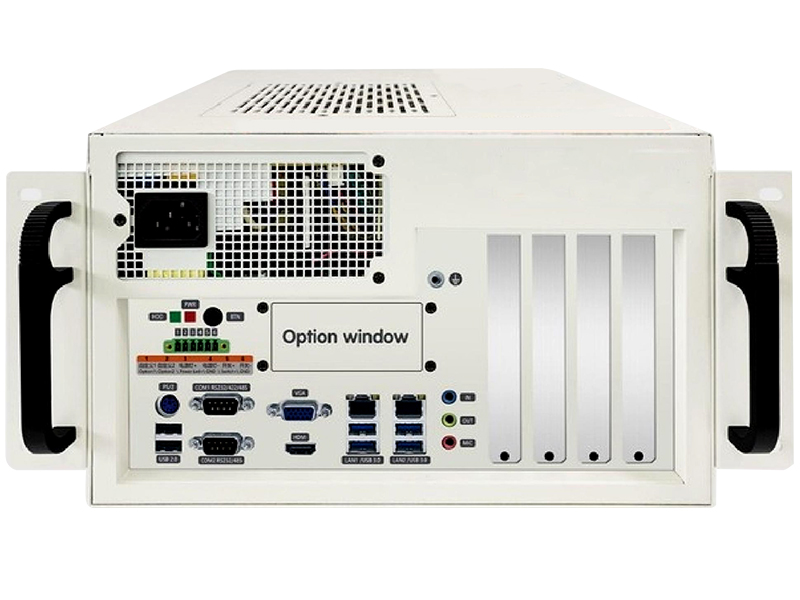

Rear Panel

In addition to display, network, USB, and COM, it also provides key switches, power hard disk indicators, and 4/6pin terminal blocks defined as remote switches and indicators, making it convenient for users to connect 12/16/19/22mm 3.3V/12V illuminated keys

GPIO

Optional 8/16/32 GPIOs

PS

1 ¡Á PS/2 keyboard and mouse

LPT

1¡ÁLPT

power supply

Input Rated power consumption

ATX Power Supply

400W

Watchdog

Output

Interval

Interrupt, system restart

255 level timer interval

Physical parameters

size

345mm (L) x 308mm (W)  x 165mm (H)

environment

Temperature Humidity

Operating temperature: 0¡ãC ~50¡ãC Storage temperature: -20~70¡ãC

5%~90% non-condensing

operating system

Version

Support WinXP/7/10/11 various versions of Linux/domestic system Tongxin Kylin, etc.

AOS-SSH81I41S4U6J

3~4´úCPU£ºI3-3220/ I5-3470/I7-3770/I3-4160/I5-4440/I7-4770Setc.

AOS-SSH31F82S4U6J

6~9´úCPU£ºI3-6100/I5-6400/I7-6700T/ I3-7100/I5-7400/I7 7700T/ I3-8100/I5-8400/I7-8700/

I3-9100/I5 9500/I7-9700Tetc.

AOS-SSQ47J81S4U6J

10~11´úCPU£ºI3-10100/ i5-10505/I7-10700/ I3-11100/ I5-11400T/I7-11700etc.

AOS-SSH61J42S4U6J

12~14´úCPU£ºI3-12100/ I5-12400/I7-12700/  I3-13100/ I5-13400/ I7-13700/  I5-14400etc.

30Series Graphics Cards

 RTX3050/ RTX3050/ RTX3060/ RTX3070/ RTX3080

40Series Graphics Cards

RTX4060/ RTX4090

ASeries Graphics Cards

A1000/ A2000

TSeries Graphics Cards

T1000

PSeries Graphics Cards

P1000/ P2000/ P3000
