Chipset

IntelB75/B85/H81/H110/Q170/H310/Q370/Z390/H420E/Q470/H610/Q670

BIOS

AMI 32Mbit£¬Support diskless boot, network wake-up, power-on boot, watchdog and other functions

Memory

capacity

2/4 memory slots 4GB/8GB- DDR3, 4GB/8GB/16GB/32GB/64GB- DDR4/DDR5 maximum support 32/64/128/256GB optional

storage

SATA/M.2interface

mSATA, m.2 M-Key 2280 SATA/NVMe SSD, 1 2.5-inch hard drive slot, 2/4 3.5-inch hard drive slots, 1 optical drive slot optional

show

Chipset/Output

Independent graphics card slot

Supported graphics card

Provide VGA+DVI+HDMI+DP display interface

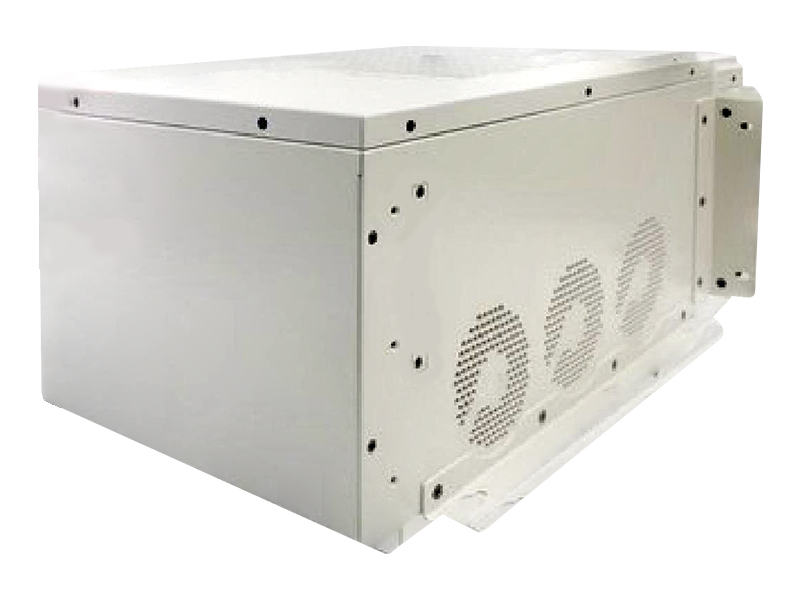

The depth of this model reaches 405mm, which is suitable for large independent graphics cards with 3 fans. Because large independent graphics cards have high power consumption and high temperature inside the chassis, 3 system fans are used by default.

GTX1030/ GTX1050/ RX550/ GTX1050TI/ GTX1650/ GTX1060/ GTX1070/ GTX1080/ RTX3050/ RTX3050/ RTX3060/ RTX3070/ RTX3080/ RTX4060/ A1000/ A2000/ T1000/ P1000/ P2000/ P3000

network

Chip

WIFI/3G/4G

Onboard 2 or more Intel® 10/100/1000/2500Mb adaptive network cards

Intel¡òi210AT, Inteli219LM, Inteli225V and other network card chips

I/O

RearIO PanelUSB

Front PanelUSB

COM port

Audio

6-8 USB2.0/3.0/3.2, can be expanded to 2-4 USB2.0

2¡Á USB2.0

Provides 2-10 COM ports, COM1-2 can be set to RS232/422/485

1 ¡Á LINE-OUT &  MIC-IN &1x LINE IN£¬Integrated 6-channel high-fidelity audio

Expansion slot (optional)

PCLE Slots

Provide PCl-E16X slot, PCl-E 8X slot, PCl-E 4X slot, PCl-E 1X slot, PCl slot

Onboard Features

Front Panel

Provides switch, indicator light, 2 USB2.0 ports,

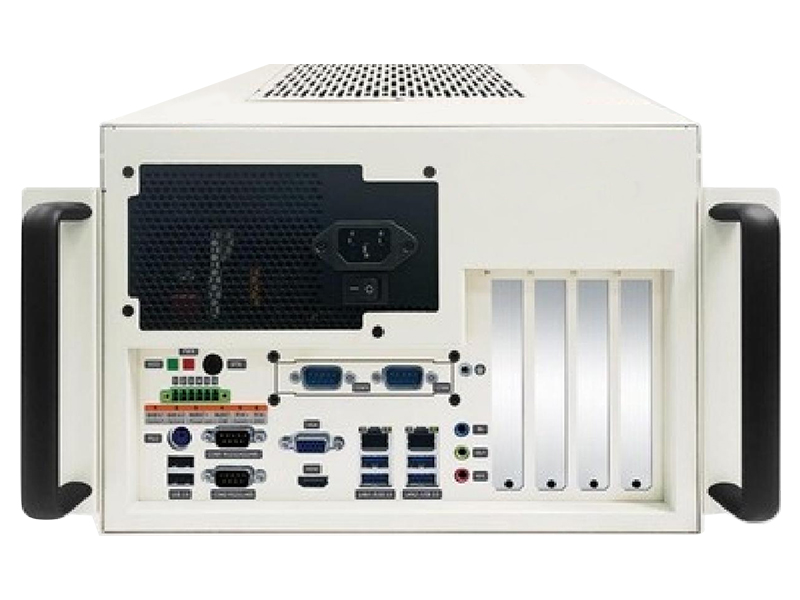

Rear Panel

In addition to display, network, USB, and COM, it also provides key switches, power hard disk indicators, and 4/6pin terminal blocks defined as remote switches and indicators, making it convenient for users to connect 12/16/19/22mm 3.3V/12V illuminated keys

GPIO

Optional 8/16/32 GPIOs

PS

1 ¡Á PS/2 keyboard and mouse

LPT

1¡ÁLPT

power supply

Enter

Rated power consumption

ATX Power Supply

400W

Watchdog

Output

interval

Interruption, system restart

255 level timing interval

Physical parameters

size

345mm (L) x 405mm (W)  x 190mm (H)

environment

Temperature

humidity

Working temperature: 0¡ãC ~50¡ãC Storage temperature: -20~70¡ãC

5%~90% No condensation

operating system

Version

Support WinXP/7/10/11 various versions of Linux/domestic system Tongxin Kylin, etc.

AOS-SSH81I41S4U4J

3rd ~ 4th generation CPU: I3-3220/ I5-3470/I7-3770/I3-4160/I5-4440/I7-4770S, etc.

AOS-SSH31F82S4U4J

6th to 9th generation CPU: I3-6100/I5-6400/I7-6700T/ I3-7100/I5-7400/I7 7700T/ I3-8100/I5-8400/I7-8700/

I3-9100/I5 9500/I7-9700T etc.

AOS-SSQ47J81S4U4J

10~11th generation CPU: I3-10100/ i5-10505/I7-10700/ I3-11100/ I5-11400T/I7-11700, etc.

AOS-SSH61J42S4U4J

12~14 generation CPU: I3-12100/ I5-12400/ I7-12700/ I3-13100/ I5-13400/ I7-13700/ I5-14400, etc.

30Series Graphics Cards

 RTX3050/ RTX3050/ RTX3060/ RTX3070/ RTX3080

40Series Graphics Cards

RTX4060/ RTX4090

ASeries Graphics Cards

A1000/ A2000

TSeries Graphics Cards

T1000

PSeries Graphics Cards

P1000/ P2000/ P3000
