AOS-SM3568BW
Product introduction£º
Android Mini PC
ARM platform Cortex-A55 architecture RK3568 CPU
Supports 6 USB ports (2 USB 3.0 / 4 USB 2.0)
GPU uses Mail-G52 with built-in high-performance 2D acceleration hardware
Supports dual VGA and HDMI displays, with HDMI supporting 4K@30Hz
Dual-core, fanless design for zero noise
Supports Android 11/12 and Debian 10
Complies with CE, FCC, and ROHS regulations
Dimensions: 170mm (L) x 104mm (W) x 30mm (H)
Product Introduction
This MINI PC BOX is custom-designed for VDI cloud desktop terminals and supports Android 11/12 and Debian 10 (Linux) operating systems. The product adopts the Rockchip RK3568 processor on an ARM platform, positioned as a mid-to-high-end general-purpose SoC manufactured with 22nm process technology. It is suitable for applications such as education cloud terminals, enterprise office cloud terminals, financial cloud terminals, and private cloud terminals.
Specifications
Processor | CPU | Rockchip® RK3568,qual-core 64-bit Cortex-A55 |
Chipset | Intel® SOC | |
BIOS | AMI 32Mbit, supports diskless boot, Wake-on-LAN, power-on boot, watchdog and other functions | |
Memory | Capacity | Onboard LPDDR4£¬2G/4GB |
Storage | eMMC5.1 SSD | 8G/16G/32G/64G N/A |
Display | Graohics card Output
| ARM G52 1-Core-2EE HDMI+VGA single display; dual display (synchronous/asynchronous display) 1¡ÁHDMI £¨MAX£º3840x2160£©4K@30Hz 1¡Á VGA £¨MAX£º2048¡Á1536£©2K@60Hz |
internet | Lan WIFI | 1 ¡Á 10/100/1000M£¨optional dual-network-chip gigabit£© M.2 2230 Support WIFI5+BT4.2 or WIFI6+BT5.2 |
I/O | USB 3.0 USB 2.0 RJ45 HDMI VGA Power button Reset LED DC JACK PWR_SW(above) Audio | 2 x USB3.0 4¡ÁUSB2.0 1¡ÁRJ45 1¡ÁHDMI 1¡ÁVGA 1 ¡Á power button 1 ¡Á Reset button 1 x Power indicator LED & 1 ¡Á HDD indicator LED 1 ¡Á DC JACK 1 x PWR_SW(above) ASoC integrate Audio RK809-codec |
Power | Input Rated power | DC 12V Power consumption varies by configuration |
Watchdog | Output Interval | Can trigger interrupt or system reboot 255-level programmable timing interval |
Physical Parameters | Dimensions | 170mm (L) x 105mm (W)x30mm(H) |
Environment | Temperature Humidity | Operating temperature: 0¡ãC ~ 50¡ãC Storage temperature: -20¡ãC ~ 70¡ãC 5%~90% non-condensing |
Operating System | Versions | Android11/12¡¢Debain10 |
Appearance | Materila Color | Plastic Black (color customizable) |
Certification | Safety Certifications | Complies with CCC, RoHS and other certification requirements |
Ordering Informations
Sales model | Description |
AOS-SM3328BW | CPU£ºRK3328 1.50 GHz 4GB 16GB SSD |
AOS-SM3399BW | CPU£ºRK3399 2.00GHz 4GB 16GB SSD |
AOS-SM3588BW | CPU£ºRK3588 2.40 GHz 4GB 16GB SSD |
AOS-SM3568BW | CPU£ºRK3568 2.00 GHz 4GB 16GB SSD |
AOS-SM3368BW | CPU£ºRK3368 1.50 GHz 4GB 16GB SSD |

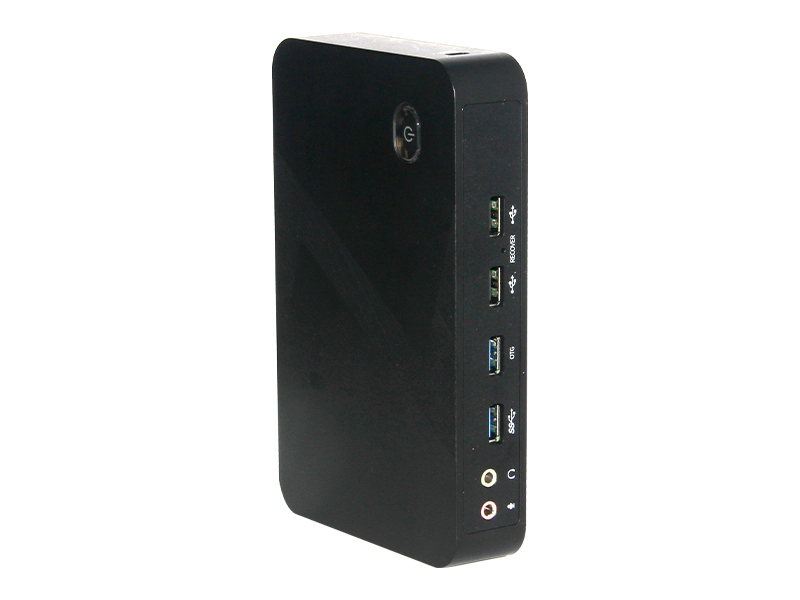

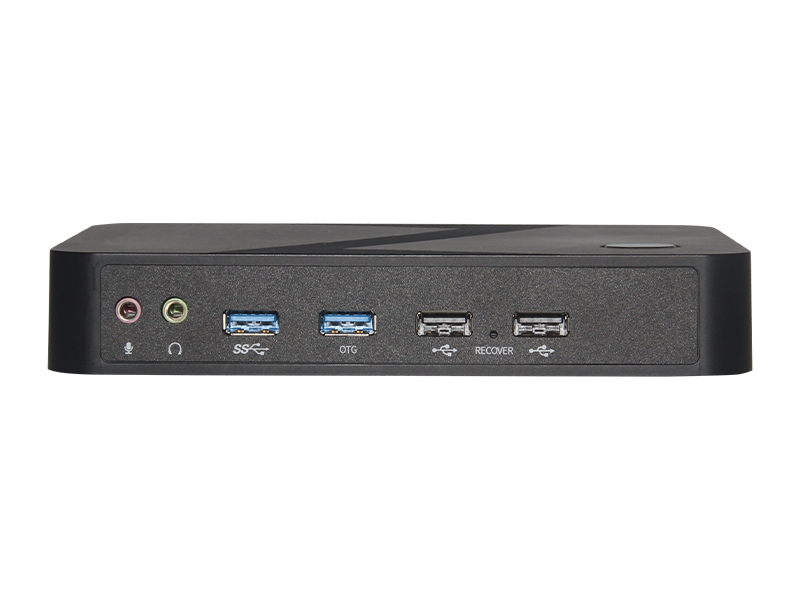

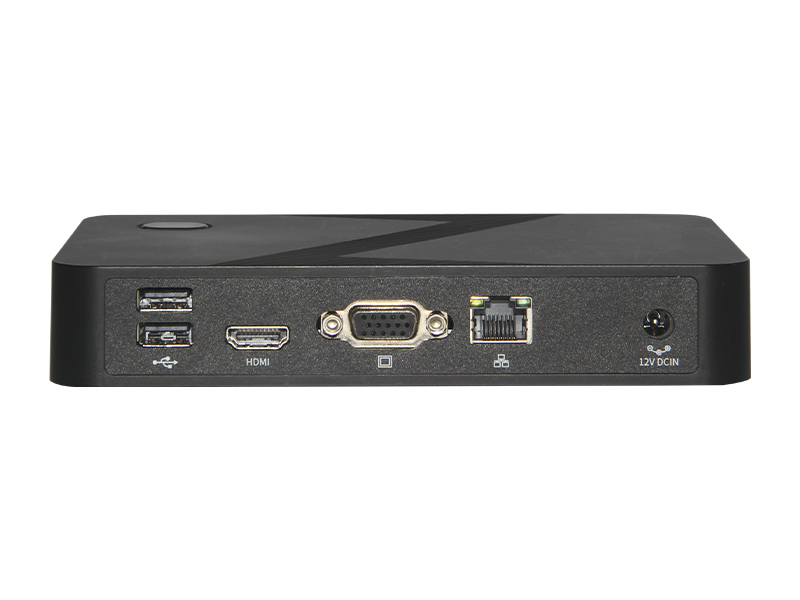

Product image
Applications
Suitable for education, restaurants, hotels, shopping malls, corporate meetings, government information disclosure, and other fields.
