AOS-SMMRK3368L

Product introduction：

Product CPU Options

Version 1

Features the Rockchip RK3368, a Cortex-A53 octa-core CPU, running Android 5.1, with a clock speed of up to 1.5 GHz. It features a GC6110 GPU and supports 4K displays. Integrated interfaces include Ethernet, HDMI, Wi-Fi, and Bluetooth. This product features a fanless design and a built-in high-quality heat sink, making it ideal for industrial and business information publishing applications.

Version 2

Features the Rockchip RK3188, a Cortex-A9 quad-core CPU, running Android 4.4, with a clock speed of up to 1.6 GHz. It features a Mali 400 GPU and supports 1080p decoding. Integrated interfaces include Ethernet, HDMI, and Wi-Fi. This product features a fanless design and a built-in high-quality heat sink, making it ideal for industrial and business information publishing applications.

Version 3

Powered by a Rockchip RK3288 Cortex-A17 quad-core CPU, it runs Android 5.1 and has a maximum clock speed of 1.8 GHz. It features a Mali-T764 GPU, supports 4K display, and integrates Ethernet, HDMI, Wi-Fi, and Bluetooth. This fanless design and built-in high-quality heat sink make it ideal for industrial and information dissemination applications.

Product Features

Supports 12V power input

HDMI 4K dot screen

TV + box = smart advertising machine (commercial)

Supports Wi-Fi, Ethernet, and Bluetooth

Supports split-screen playback, landscape and portrait playback, and auto-play upon startup

Supports image and video carousel, scrolling subtitles, and more

Product Hardware Specifications

Main Hardware index
Dimensions	156*89*28mm
CPU	RK3188， Four core, maximum clock speed up to 1.6GHz, Android 4.4
GPU	Mali-400 MP4 GPU
Memory	Standard 1G, optional 2G
storage	Comes standard with 8GB, supports up to 32GB
HDMI output	1, support 1080P@60Hz output
Video format support	Support WMV, AVI, RMVB, MPEG, MP4, etc
Image format support	Supports BMP, JPEG, PNG
headphone output	Supports 1-channel left and right channel headphones
USB interface	2 USB 2.0 ports
Ethernet	1, 10/100Mbps
WIFI	Built in WIFI
TF card	Support TF card
RTC real-time clock	support
Timed power on/off	support
system upgrade	Support local USB upgrade
relative humidity	0%~95% (non condensing)
operation temperature	-20℃~+70℃
Storage temperature	-40 ℃~+70 ℃

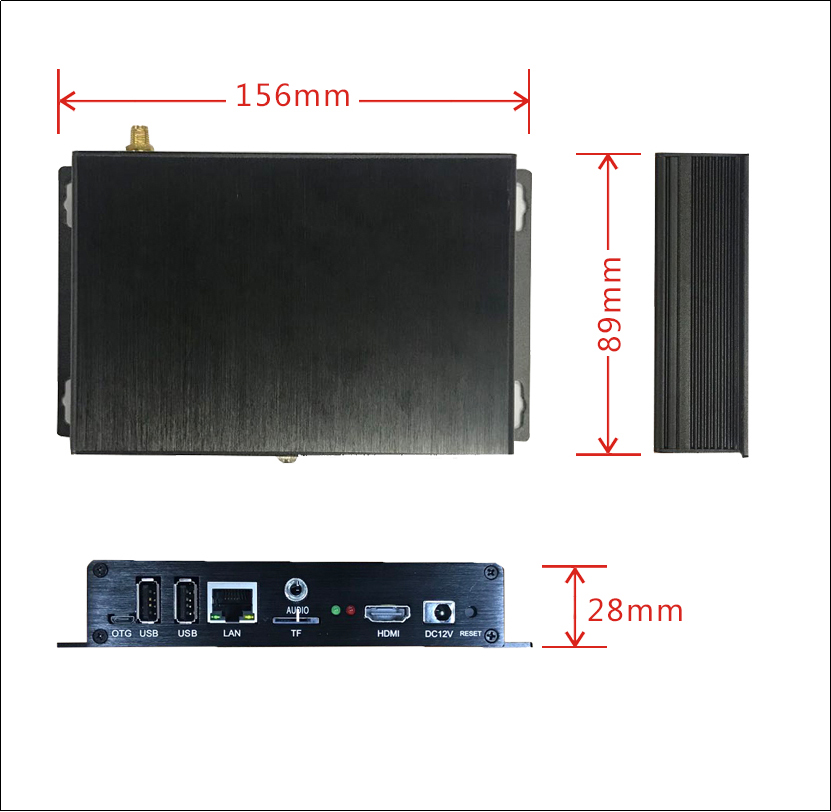

Product Size picture：

Scope of application

belongs to the Android industrial control box and is widely used in smart display terminal products, video terminal products, industrial automation terminal products, such as advertising machines, digital signage, etc.
