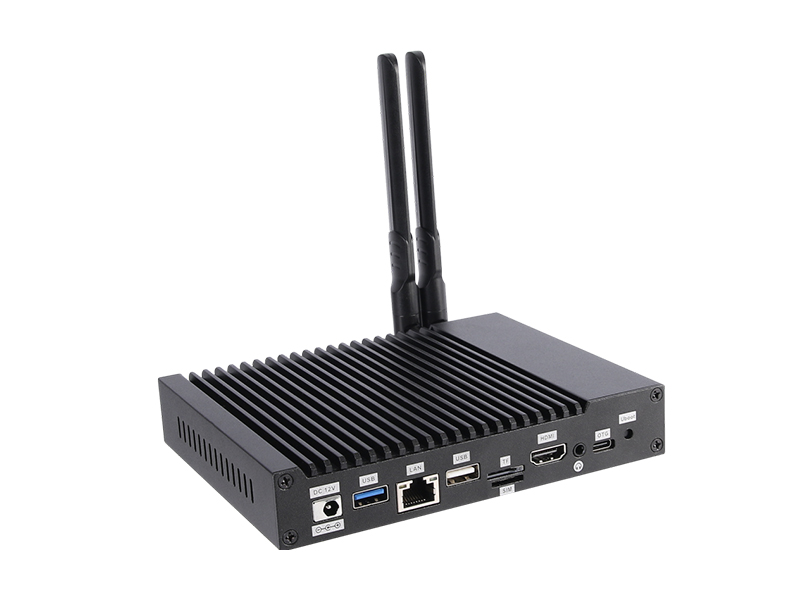

AOS-SMKEC3288L
Product introduction£º
Multiple CPU versions available
Version 1
Powered by the Rockchip RK3288, a quad-core Cortex-A17 CPU, running Android 5.1, with a clock speed of up to 1.8 GHz. Featuring a Mali-T764 GPU and support for 4K HDMI display, it offers a rich interface offering support for a wide range of peripheral expansion options, including Ethernet, HDMI, WiFi, Bluetooth, serial ports, and optional 4G. This fanless design and built-in high-quality heat sink make it ideal for industrial and business applications, making it an excellent choice for human-computer interaction and industrial control projects.
Version 2
Powered by the Rockchip RK3368 octa-core Cortex-A53 CPU, running Android 5.1, with a clock speed of up to 1.5GHz. Featuring a GC6110 GPU, it supports 4K displays. Integrated interfaces include Ethernet, HDMI, WiFi, Bluetooth, serial ports, and 4G (optional). This fanless design and built-in high-quality heat sink make it ideal for industrial and industry applications.
Version 3
Powered by the Rockchip RK3399 (dual-core Cortex-A72 + quad-core Cortex-A53) CPU, running Android 7.1, with a clock speed of up to 1.8GHz. Featuring a Mali-T860 MP4 GPU, it supports 1080@60fps and 4K decoding. Integrated interfaces include Ethernet, HDMI, WiFi, Bluetooth, serial ports, and 4G (optional). This fanless design and built-in high-quality heat sink make it ideal for industrial and industry applications, making it an excellent choice for human-computer interaction and industrial control projects.
Version 4
Powered by the Rockchip RK3566 quad-core A55 processor, clocked at up to 1.8GHz and utilizing an advanced 22nm process, it offers low power consumption and high performance. Its built-in independent NPU boasts a computing power of up to 0.8 Tops and supports up to 4K output. Interfaces include Gigabit Ethernet, USB 3.0, RS232, and PCIe, supporting a wide range of peripheral expansion options, making it an excellent choice for industrial control projects.
Version 5
Powered by the Allwinner A40i, a Cortex-A7 quad-core CPU, running Android 7.1, it boasts a clock speed of up to 1.2GHz. It features a Mali-400 GPU and supports 1080p decoding. Integrated interfaces include Ethernet, HDMI, WiFi, Bluetooth, serial ports, and optional 4G. This fanless design and built-in high-quality heat sink make it ideal for industrial and business applications.
Version 6
Powered by the Amlogic A311D hexa-core (quad-core Cortex-A73 + dual-core Cortex-A53) processor, clocked at up to 2.2GHz and built on a 12nm advanced process, it offers low power consumption and high performance. Its built-in independent NPU delivers a computing power of up to 5.0 Tops per second and supports up to 4K video output. Interfaces include Gigabit Ethernet, RS232, USB 3.0, and PCIe, supporting a wide range of peripheral expansion, making it the perfect choice for industrial control projects.
Version 7
Powered by the Amlogic S905D3 quad-core Cortex-A55 processor, clocked at up to 1.9GHz and built on a 12nm advanced process, it offers low power consumption and high performance. Its built-in independent NPU delivers a computing power of up to 1.2 Tops per second and supports up to 4K video output. Interfaces include 1000M Ethernet, RS232, USB 3.0, and PCI-E, supporting a wide range of peripheral expansion, making it the perfect choice for industrial control projects.
Product features
¡ô Configure gigabit Ethernet port;
¡ô Built-in neural network NPU, up to 1.2Tops computing power;
¡ô Rich expansion interface, 6 USB interface, 2 RS232 (optional 1 for RS485);
¡ô HDMI 2.1, up to support 4K output;
¡ô Built-in PCIe interface, support a variety of PCIe 4G modules such as domain cell, remote (4G is optional);
¡ô Support 2.4G/5G WiFi (standard for single frequency 2.4G);
¡ô Multiple function keys (1 button with light, 1 burning key);
¡ô Perfect support for infrared, capacitance, resistance and other mainstream touch screen, support mainstream peripheral drive;
¡ô Support Android system customization, provide system call interface API reference code.
Product hardware index
Main Hardware index | |
Size | 157*125*28mm |
CPU | Amlogic S905D3, Quad-core Cortex-A55, up to 1.9GHz |
DDR | With Standard 1GB LPDDR4, 2GB/4GB Optional |
GPU | Mali-G31 MP2 |
NPU | Supports up to 1.2Tops |
Flash | Standard 8GB, up to 128GB |
HDMI output | 1, supports up to 4K output |
HDMI Version | HDMI 2.1 |
Headphone output | 1-way four-segment earphone (with MIC) plug-in |
USB Host | 5 USB2.0, 1 USB3.0 |
USB OTG | 1 Micro-USB OTG |
Serial Port | 2 RS232 Serial Port (one RS485 port is Optional) |
Ethernet | 1, 10/100/1000M adaptive Ethernet |
WiFi Frequency | 2.4G single frequency (optional 2.4G/5G dual frequency) |
WiFi/BT | Built in WiFi, BT5.2 |
4G ANT | 1 (Optional) |
WiFi ANT | 1 |
TF Card | Support up to 256GB |
Lighted switch | Reboot |
Burn key | Firmware upgrade |
4G communication | Built-in PCI-E 4G interface (optional) |
SIM Slot | 1 way Micro-SIM Slot |
RTC Real Time Clock | Support |
Timer switch | Support |
System Upgrade | Support local USB upgrade |
Humidity | 0% ~ 95% (no condensation) |
Working Temp | -20¡ãC ~ 70¡ãC |
Power | 9V ~ 15V wide voltage DC |

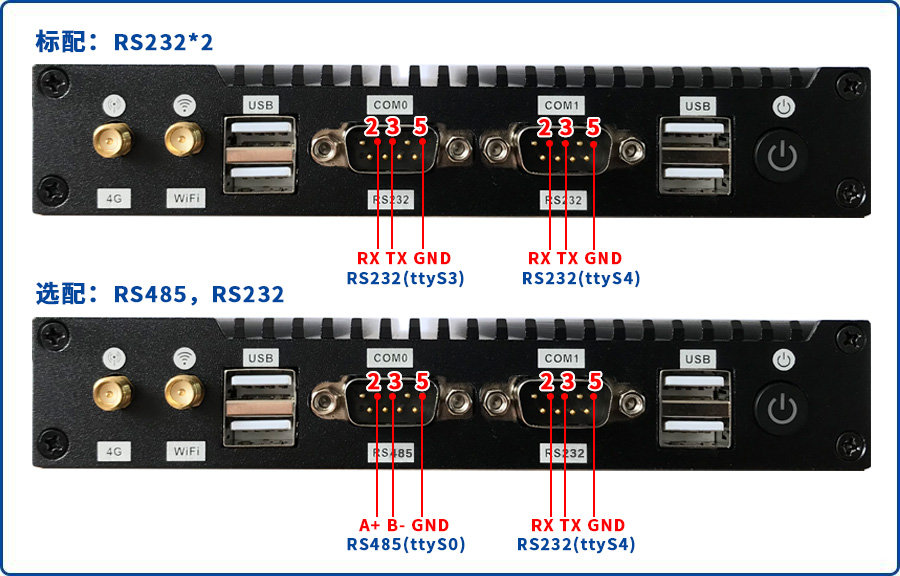

Serial port definition

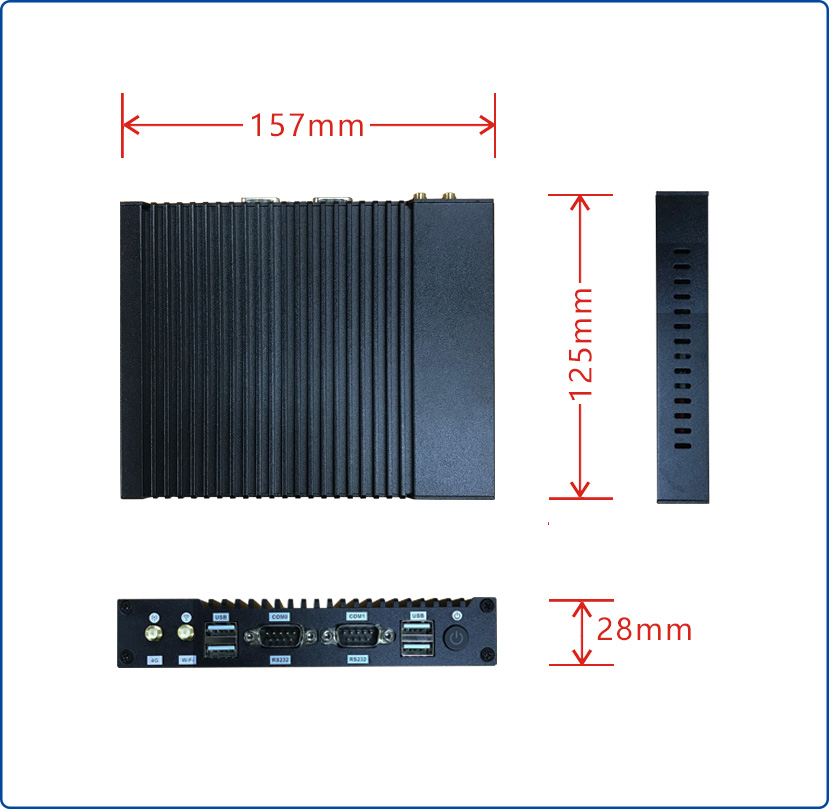

Product Size picture:
Scope of application
is Android Industrial PC, it can be applied to Intelligent display terminal products, Video terminal products, Terminal products in the field of industrial control, Scenarios such as Industrial PC, IoT gateways, Industrial control, etc.
