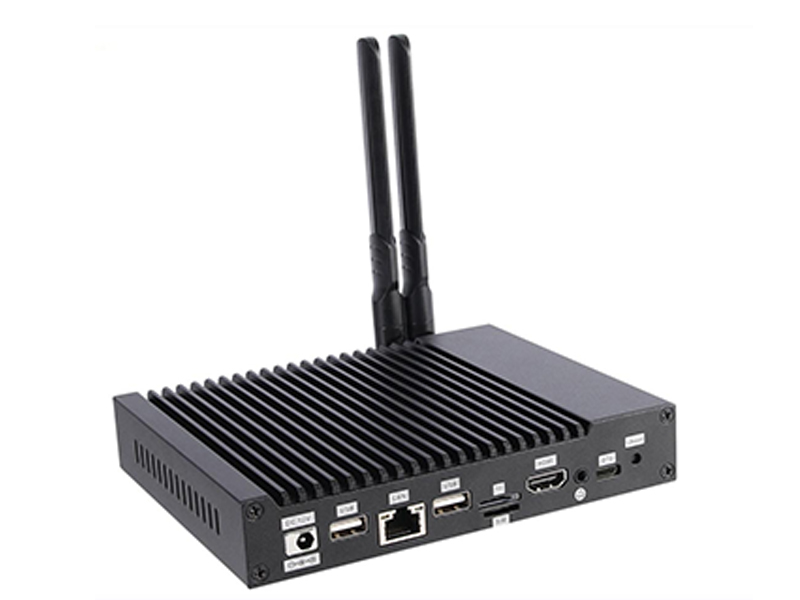

AOS-SMICK3288L

Product introduction£º

Multiple CPU options available.

Version 1

Powered by the Rockchip RK3288 quad-core processor, clocked at up to 1.8GHz, and pre-installed with Android 7.1. A wide range of expansion ports allows for flexible integration with various peripherals. Its ultra-thin design caters to diverse deployment scenarios.

Version 2

Powered by the Rockchip RK3368 octa-core processor, clocked at up to 1.5GHz, and pre-installed with Android 5.1. A wide range of expansion ports allows for flexible integration with various peripherals. Its ultra-thin design caters to diverse deployment scenarios.

Version 3

Powered by the Rockchip RK3399 hexa-core processor, clocked at up to 1.8GHz, and pre-installed with Android 7.1. A wide range of expansion ports allows for flexible integration with various peripherals. Its ultra-thin design caters to diverse deployment scenarios.

Version 4

Powered by the Rockchip RK3566 quad-core processor, clocked at up to 1.8GHz, and featuring a built-in independent NPU, it boasts a computing power of up to 1 TOPs. It features a rich set of expansion ports, allowing for flexible integration with various peripherals. Its ultra-thin design caters to diverse deployment scenarios.

Version 5

Powered by the Allwinner A40i quad-core processor, clocked at up to 1.2GHz, and pre-installed with Android 7.1. It features a rich set of expansion ports, allowing for flexible integration with various peripherals. Its ultra-thin design caters to diverse deployment scenarios.

Version 6

Powered by the Amlogic A311D hexa-core processor, clocked at up to 2.2GHz, featuring a built-in independent NPU, delivering a computing power of up to 5 TOPs. It features a rich set of expansion ports, allowing for flexible integration with various peripherals. Its ultra-thin design caters to diverse deployment scenarios.

Version 7

Powered by the Amlogic S905D3 quad-core processor, clocked at up to 1.9GHz and featuring a built-in independent NPU, it boasts a computing power of up to 1.2 Tops per second. It features a rich set of expansion ports for flexible integration with various peripherals. Its ultra-thin design accommodates diverse deployment scenarios.

Product features

¡ô Support 9V-15V wide voltage input;

¡ô Built-in neural network NPU, supporting 1.2Tops computing power;

¡ô HDMI supports up to 4K resolution;

¡ô 4 way USB interfaces, 2 way RS232 (optional 1 for RS485), 6 way KIO;

¡ô Support WiFi (optional WiFi6), Bluetooth V5.2 and Ethernet;

¡ô Built-in PCIe interface, support a variety of PCIe 4G modules such as YUGE, Quectel (4G is optional);

¡ô Multiple function keys (1 button with light, 1 burning key);

¡ô Perfectly supports various mainstream touch screens such as infrared, capacitance, and resistance, and supports mainstream peripheral drivers.

Product hardware index

Main Hardware index
Size	157*125*28mm
CPU	Amlogic S905D3, Quad-core Cortex-A55, up to 1.9GHz
GPU	Mail-G31 MP2
NPU	up to 1.2Tops
DDR	With Standard 1GB, 2GB/4GB Optional
Flash	Standard 16GB, up to 128GB
HDMI output	1, supports up to 4K output
Headphone	1-WAY, support CTIA 4-pole HP/Mic 3.5mm socket
USB Host	3 USB2.0, 1 USB3.0
USB OTG	1 Micro USB
Serial Port	2 RS232 Serial Port (1 RS485 port is Optional)
KIO	6
Ethernet	1, 10/100/1000M adaptive Ethernet
WiFi	802.11b /g/n/ac (optional WiFi6)
Bluetooth	BT5.2
4G	Built-in Mini PCI-E interface (optional)
WiFi ANT	1
4G ANT	1 (optional)
Remote Control	1
LED	Remotes
TF Card	Support up to 256GB
SIM Slot	1 way Micro-SIM Slot
Power	9V ~ 15V wide voltage DC
Humidity	0% ~ 95% (no condensation)
Working Temp	-20¡ãC ~ 70¡ãC

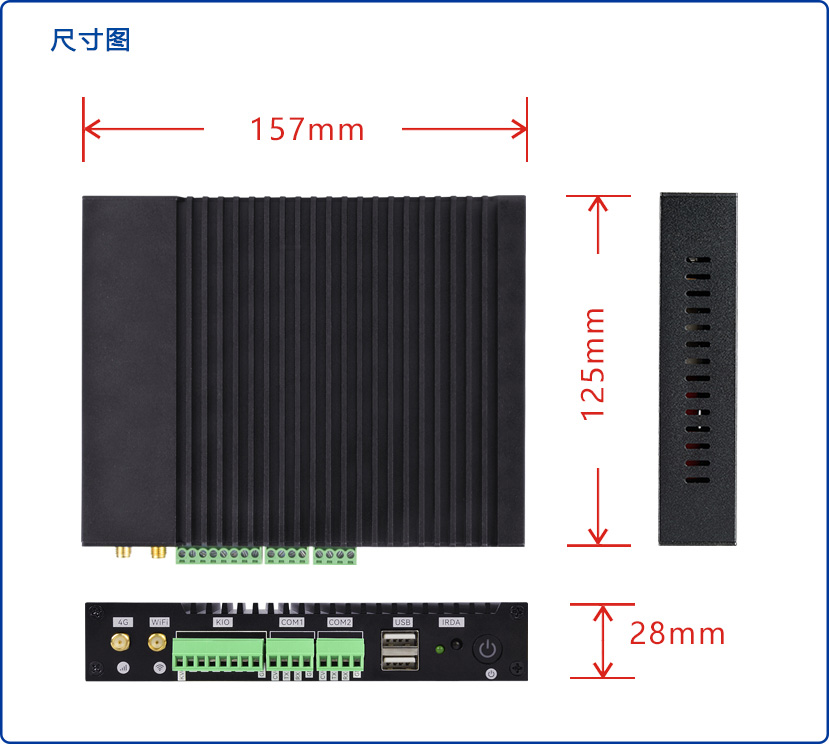

Product Size Picture:

Scope of application

belongs to IOT controller is widely used in vending machines, robots, kiosks and edge computing devices such as application scenario.
