AOS-SMGRK3288L
Product introduction：
Product Overview
AOS-SMGRK3288L adopts Ruixin Micro RK3288 quad core Cortex-A17 CPU and is equipped with Android 7.1 system,
The maximum frequency is up to 1.8GHz, and the general computing performance is powerful. Using Mali-T764 GPU, supporting 1080P
4K display. In terms of interfaces, it integrates Gigabit Ethernet, dual HDMI, WiFi, Bluetooth RS232/485、
4G and 5G. With rich interfaces and support for multiple peripheral extensions, it is your solution for human-computer interaction and industrial control projects
Best choice
Product Features
◆ Supports 9-36V wide voltage input.
◆ Dual HDMI, supports dual screen display, supports up to 4K output.
◆ Supports 5G and 4G communication.
◆ Supports dual band dual-mode 2.4/5G WiFi (standard configuration is single band 2.4G WiFi).
◆ Supports dual network ports (LAN1 is a gigabit network port, LAN2 is a 100Mbps network port).
◆ Multiple function buttons (1 light switch button, 1 burn button).
◆ Rich expansion interfaces, 6 USB 2.0 channels, 4 RS232/485 serial ports (DB9 male).
◆ Run Android and Linux systems.
◆ Support Android system customization and provide system call interface API reference code.
◆ Perfectly supports various mainstream touch screens such as infrared, capacitor, resistor, etc., and supports mainstream peripheral drivers.
Product Index
Main hardware specifications | |
Dimensions | 197*114.5*54mm |
CPU | RK3288， Four core, with a maximum frequency of 1.8GHz |
CPU DDR | Standard 2GB LPDDR3, optional 4GB |
GPU | Mali-T764 high-performance GPU |
Flash | 16GB， Supports up to 128GB |
HDMI output | 2, supporting dual screen abnormal display |
HDMI version | HDMI 1 for secondary screen (up to 4K), HDMI 2 for primary screen (1080P) |
Video format support | HDMI 1 is 2.0, HDMI 2 is 1.4 |
Image format support | Support WMV, AVI, RMVB, MPEG, MP4, etc |
headphone output | Supports BMP, JPG, PNG, GIF |
USB2.0 interface | 1-way four segment 3.5mm headphones+microphone interface |
Serial port | 6 USB HOSTs (one of which is OTG) |
Ethernet | 4 RS232/485 serial ports (standard DB9 interface) |
WiFi frequency | 2, LAN1 is 10/100/1000M Ethernet |
WiFi，BT | LAN2 is 10/100M Ethernet |
5G antenna | 4 pieces |
4G antenna | 1 piece |
WiFi antenna | 1 piece |
Light button | Restart |
pilot lamp | Operation indicator |
4G communication | Scalable M.2 interface 4G module |
5G communication | Scalable M.2 interface 5G module |
SIM stand | 1-way Nano SIM card socket |
RTC real-time clock | support |
Timed power on/off | support |
system upgrade | Support local USB upgrade |
relative humidity | 0%~90% (no condensation) |
operation temperature | -20℃~+70℃ |
storage temperature | -40℃~+70℃ |

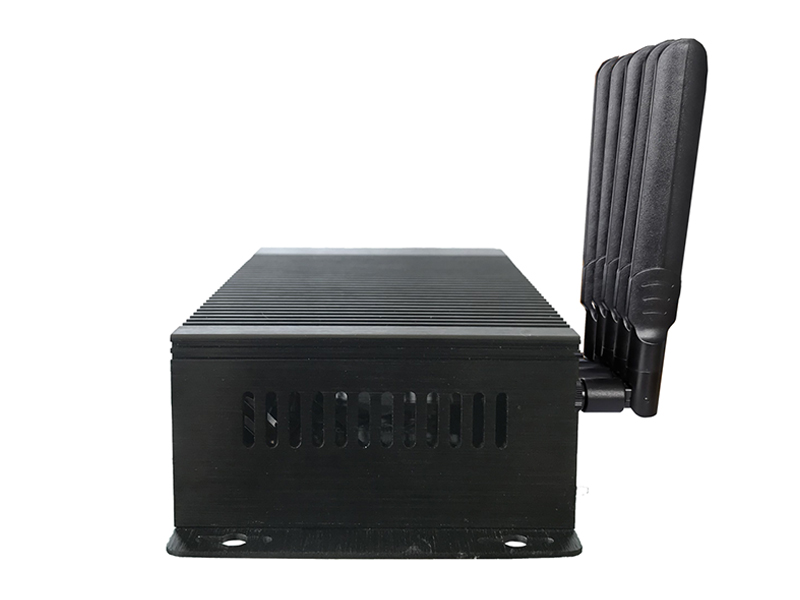

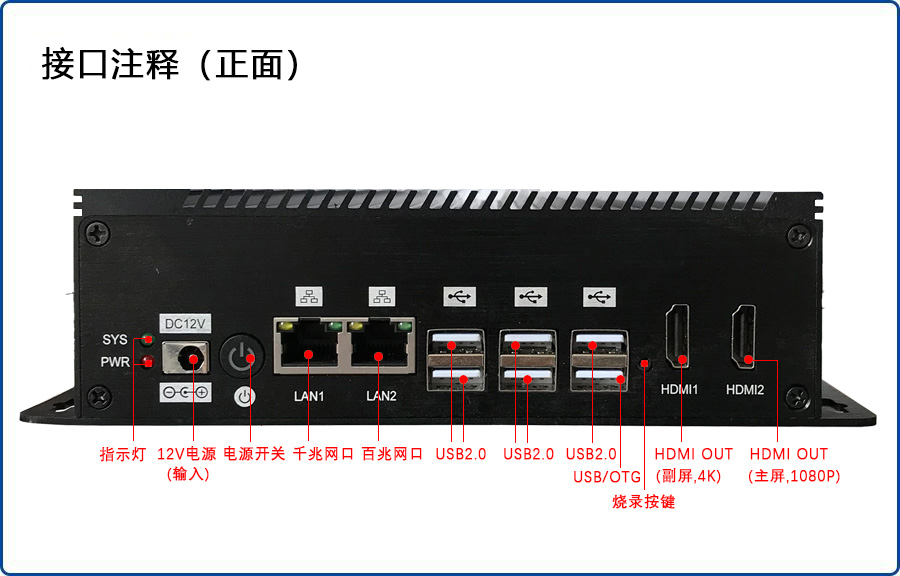

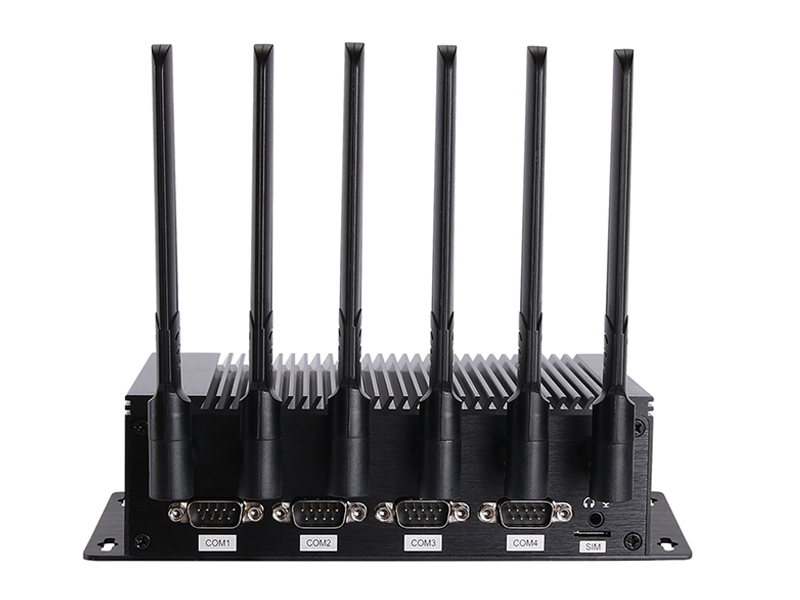

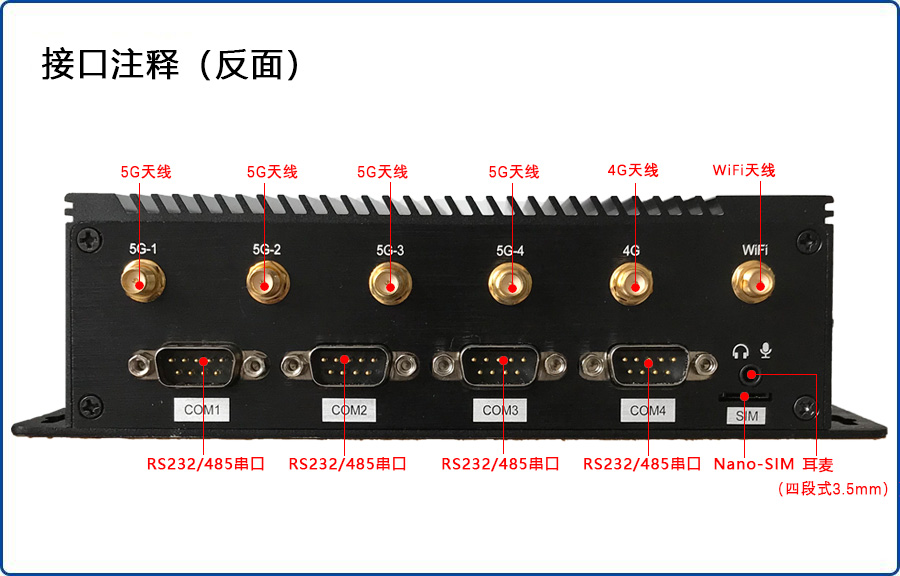

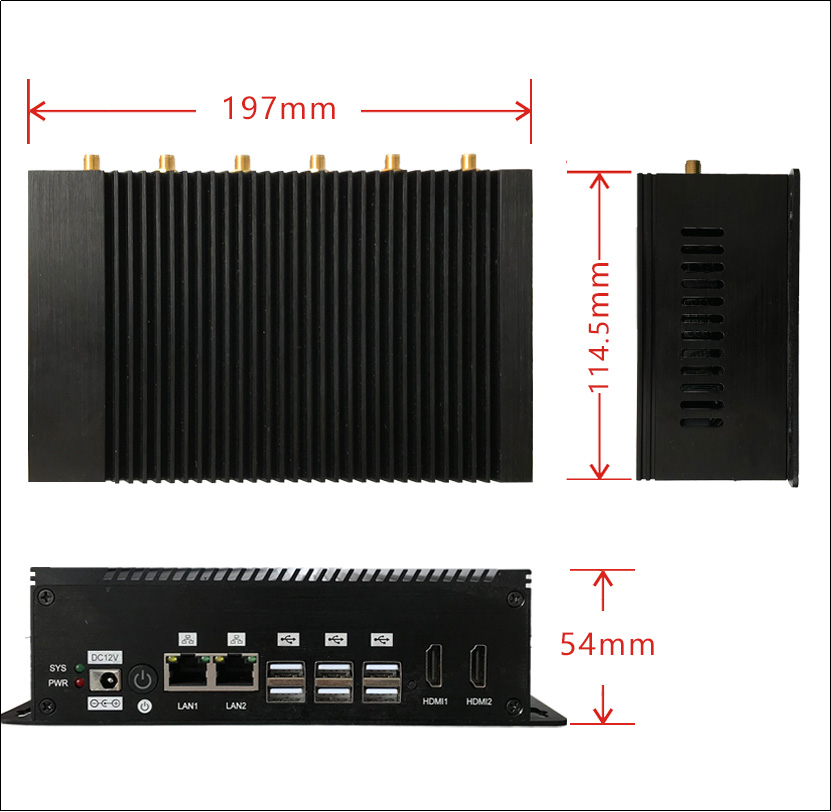

product dimension diagram：
Operating System
Android system: Recommended Android 7.1
Linux system: optional Ubuntu 18.04, Debian 9, Buildroot+QT 2018.02
scope of application
belongs to the Android industrial control box and is generally suitable for smart display terminal products, video terminal products
Terminal products in the field of industrial control, such as intelligent self-service terminals, industrial control hosts, IoT gateways, etc.
